SIEMENS 6SE70338EE851AA0 RECTIFIER/REGENERATIVE UNIT

The Siemens 6SE70338EE851AA0 is a high-capacity rectifier/regenerative unit from the SIMOVERT MASTERDRIVES range, designed for industrial drive systems requiring efficient power conversion and regenerative braking capabilities. Built to handle demanding operational conditions, it ensures stable DC output and optimal performance in automation and process control applications.

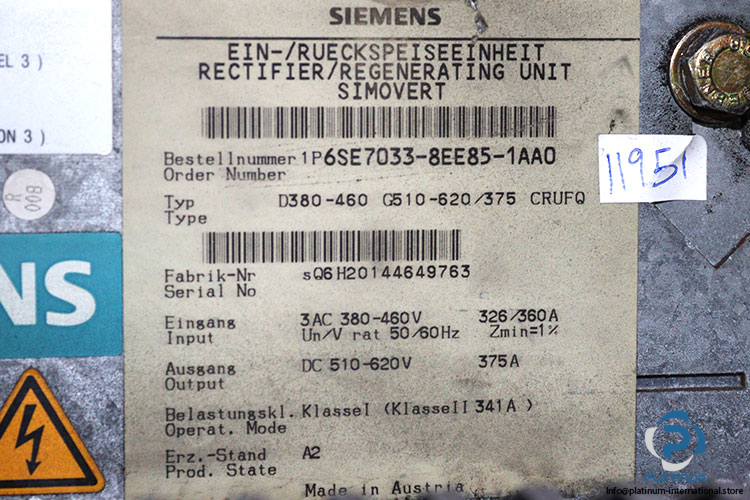

Manufacturer: Siemens
Type: Rectifier/Regenerative Unit
Model: 6SE70338EE851AA0
Serial No.: SQ6H20144649763
MNR: D380-460 G510-620/375
Range: SIMOVERT MASTERDRIVES

Technical Information

• Input Supply Voltage: 3-Phase 380 / 460 V AC
• Rated Input Current: 326 / 360 A
• Input Frequency: 50 / 60 Hz
• Rated Output Voltage: 510 / 620 V DC
• Rated Output Current: 375 A
• Protection Class: IP00
• Dimensions (H x W x D): 1000 x 350 x 269 mm
