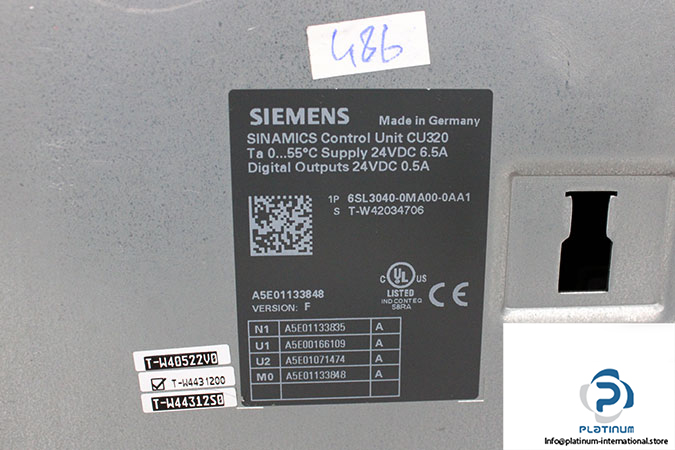

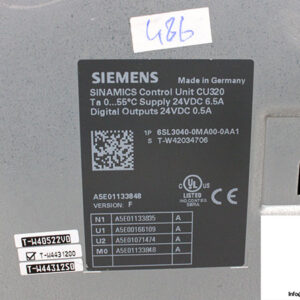

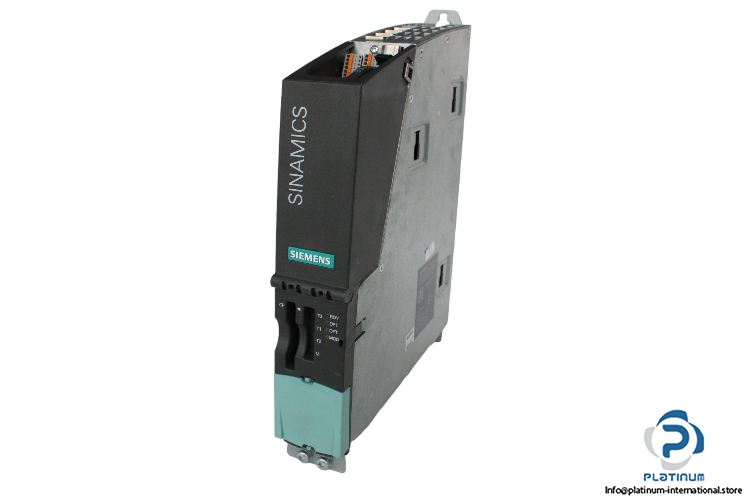

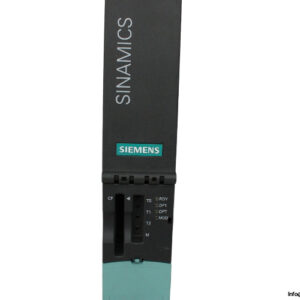

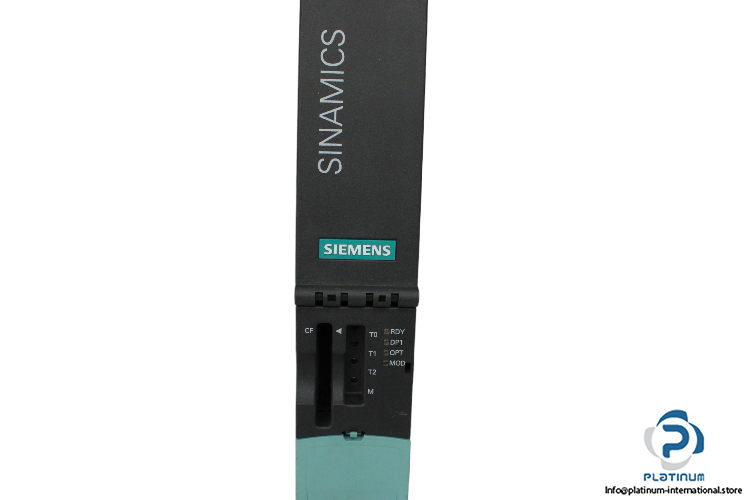

Siemens CU320 Control Unit
The Siemens CU320 Control Unit is a key component in the **SINAMICS** series, designed for managing and controlling drive systems in industrial applications. With a **24 V DC supply voltage** and **6.5 A current consumption**, the CU320 is ideal for precision control and reliable operation. It offers a **digital output** of **24 V DC, 0.5 A** and provides a **PE/ground connection** on the housing with a screw connection. The unit operates effectively within a **temperature range** of **0 to 55°C** and features an impressive **maximum DRIVE-CLiQ cable length** of **100 m** for flexible connectivity in your system.
- Manufacturer: Siemens
- Type: Control Unit
- Model: CU320
- Model Number (MNR): 6SL3040-0MA00-0AA1
- Family: SINAMICS
Technical Information
- Supply Voltage: 24 V DC (20.4 / 28.8 V DC)
- Current Consumption: 6.5 A
- Digital Output: 24 V DC, 0.5 A
- PE/Ground Connection: On housing with M5/3 Nm screw
- Maximum DRIVE-CLiQ Cable Length: 100 m
- Temperature Range: 0 / 55°C
- Dimensions (W x H x D): 229 x 51 x 305 mm
The Siemens CU320 Control Unit ensures optimal control for SINAMICS drive systems, offering precise management and robust performance for industrial automation applications.
