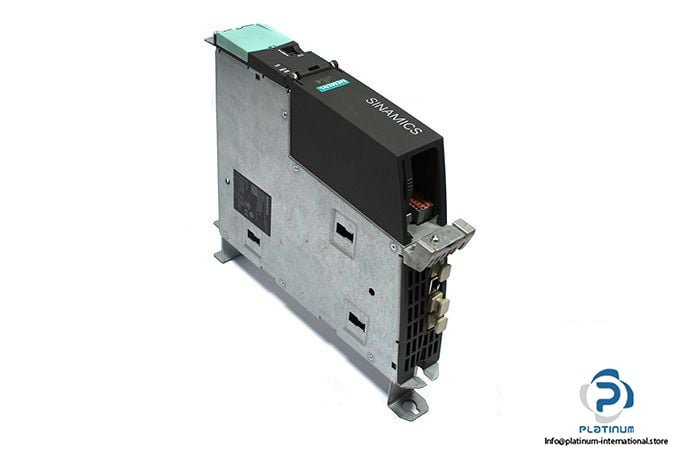

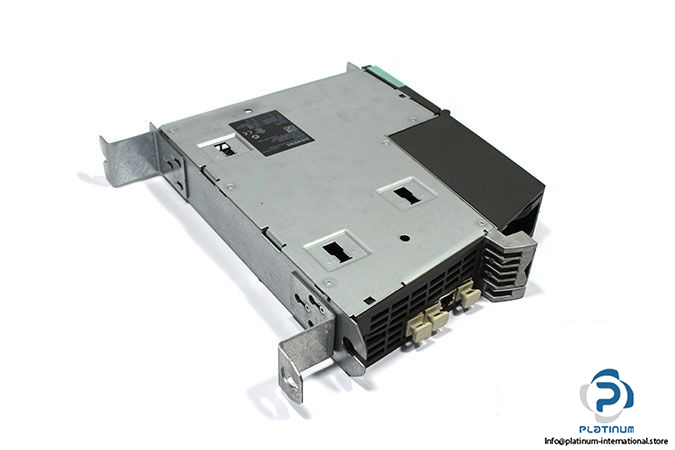

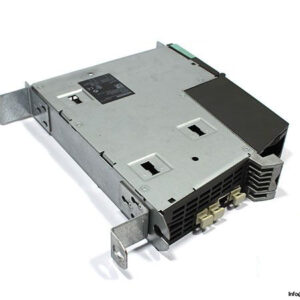

SIEMENS SINAMICS CU320-2 PN CONTROL UNIT

The Siemens CU320-2 PN is a high-performance control unit from the SINAMICS family, designed for precise multi-axis drive applications. Engineered for efficiency and adaptability, it supports powerful digital I/O and seamless integration with motion control systems in demanding industrial environments.

Manufacturer: Siemens
Type: Control Unit
Family: SINAMICS

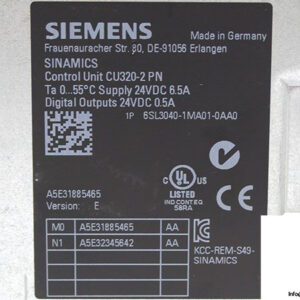

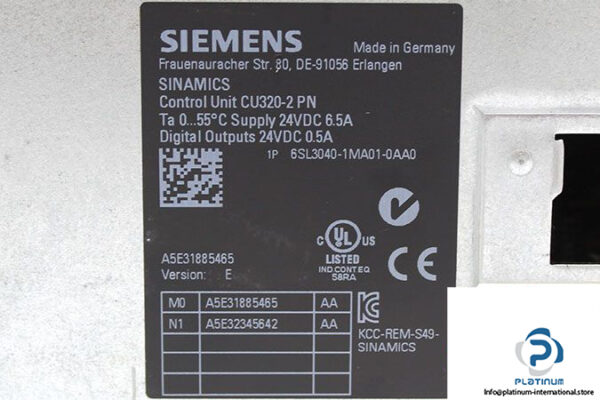

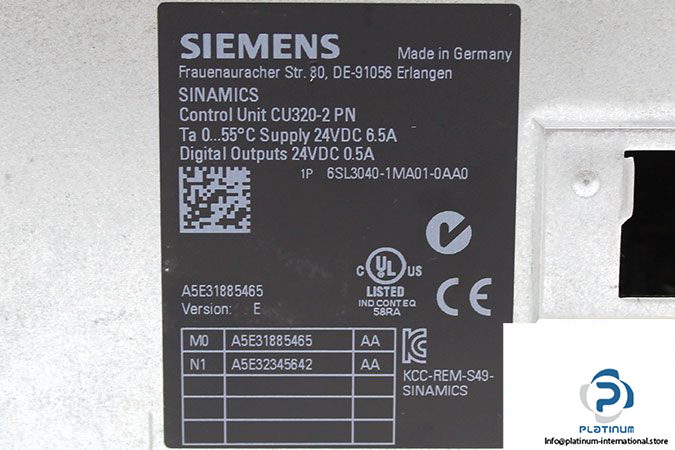

Model: 6SL3 040-1MA01-0AA0
MRN: CU320-2 PN

Technical Information

• Power Supply: 24 VDC
• Current: 6.5 A
• Max. Power Consumption: 1 A
• Power Loss, Max.: 24 W
• Protection, Max.: 20 A
• Input Voltage Range: -3 / 30 V
• Input Low Level: -3 / 5 V
• Input High Level: 15 / 30 V
• Output Voltage: 24 VDC
• Output Current: 0.5 A
• No. of Digital Inputs: 12
• Digital I/O Bidirectional: 8
• Power Consumption at 24 VDC, Typ.: 3.5 mA
• Delay Time L†’H: 50 µs
• Delay Time H†’L: 150 µs
• Operation Temperature: 0 / 55 °C
