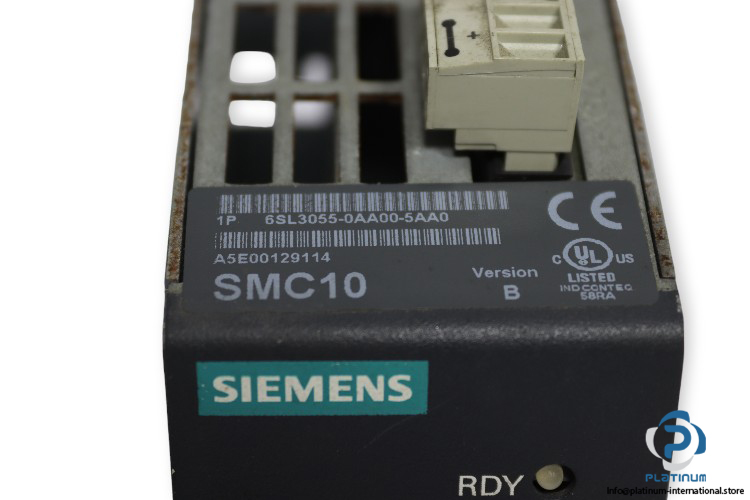

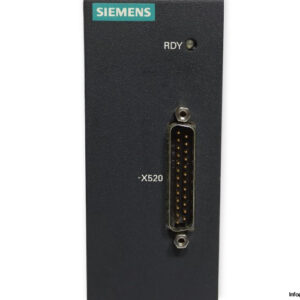

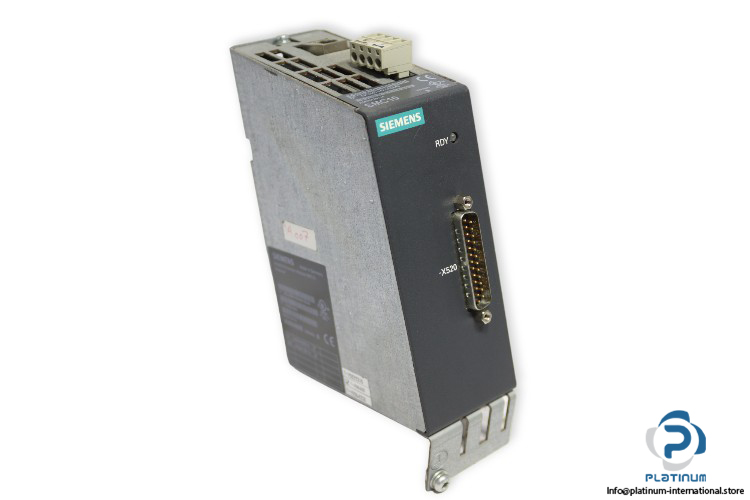

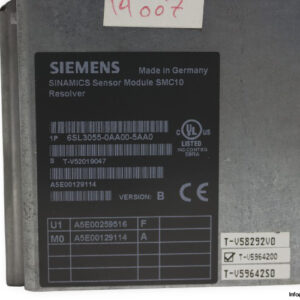

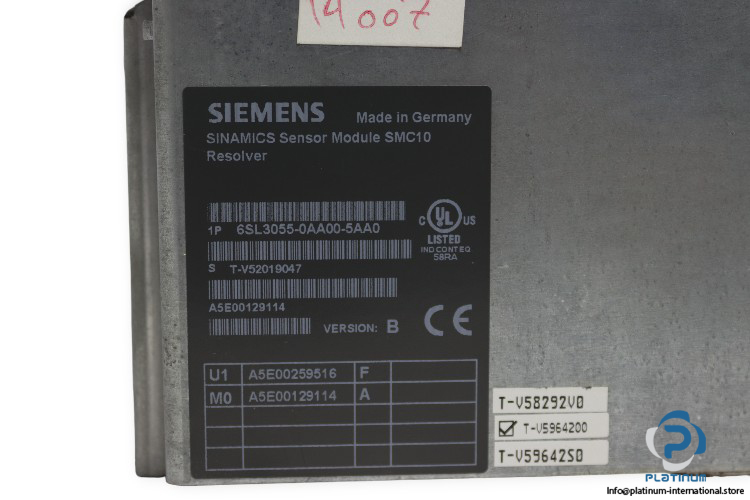

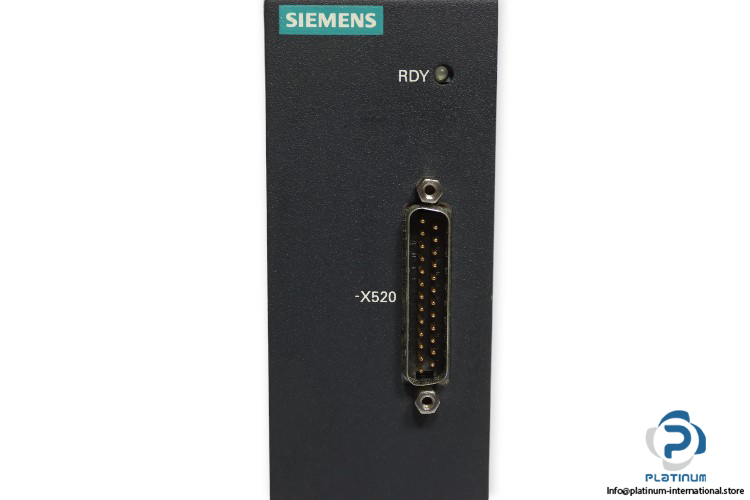

Siemens Sensor Module SMC10 (6SL30550AA005AA0)

Siemens Sensor Module SMC10 (6SL30550AA005AA0) is designed for high-performance sensing applications, offering reliable and accurate feedback systems for industrial environments. It ensures excellent functionality for encoder analysis and is compatible with various encoder systems for enhanced system efficiency. Below are the key technical details:

• Manufacturer: Siemens
• Type: Sensor Module
• MNR: 6SL30550AA005AA0
• EAN: A5E00129114
• Product Brand Name: SINAMICS
• Product Type Designation: SMC10

Technical Information:

• Supply Voltage: 24 V DC
• Current (without encoder system): ‰¤ 0.20 A
• Current (with encoder system): ‰¤ 0.35 A
• Power Loss: ‰¤ 10 W
• Excitation Frequency: 5 / 16 kHz
• Ground Connection: At the housing with M4/1.8 Nm screw
• Max. Encoder Cable Length: 130 m
• Degree of Protection: IP20 / IPXXB
• Encoder Analysis: Resolver
• Dimensions: 50 x 150 x 111 mm
