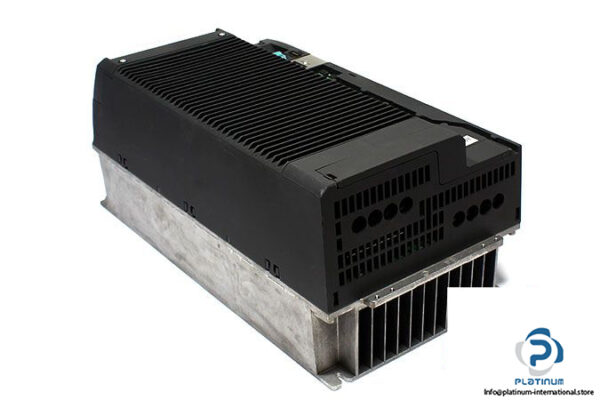

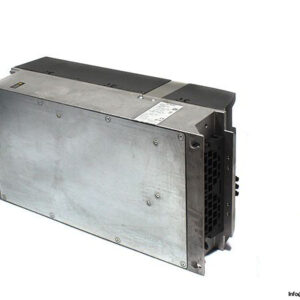

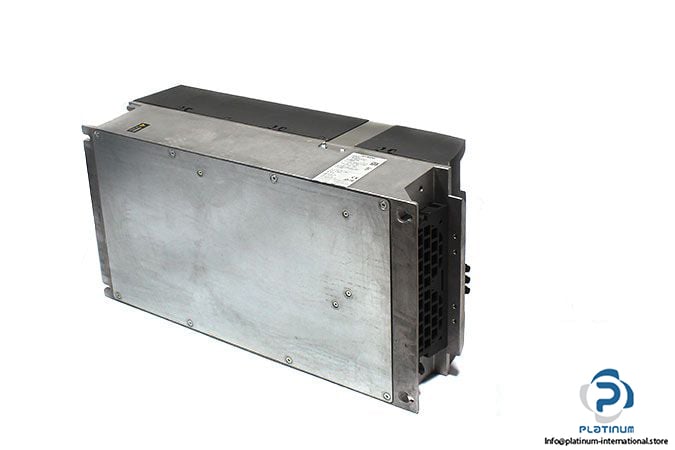

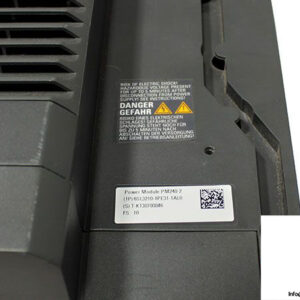

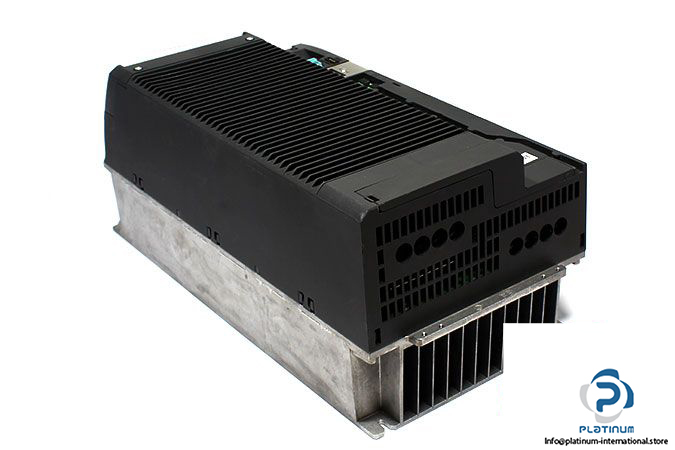

SIEMENS SINAMICS PM240-2 POWER MODULE

The Siemens SINAMICS PM240-2 Power Module (Model 6SL3 210-1PE31-1AL0) is a high-efficiency drive component designed for precision motor control in demanding industrial applications. Built to deliver robust performance, it offers reliable power conversion with wide voltage flexibility and integrated internal air cooling for optimized thermal management.

Manufacturer: Siemens
Type: Power Module
Family: SINAMICS PM240-2
Model: 6SL3 210-1PE31-1AL0

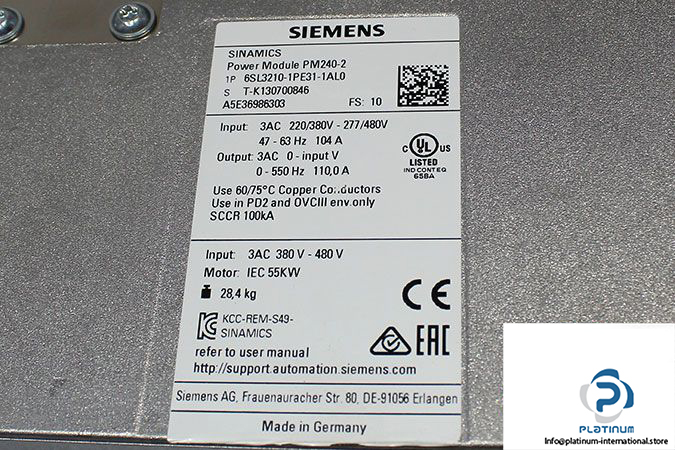

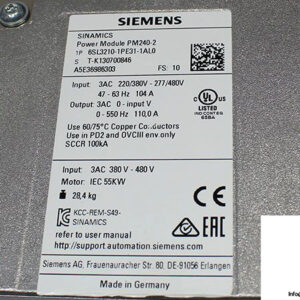

MRN: A5E36986303

Input Specifications

• Voltage: 3 Phase 220/380 / 277/480 V AC
• Frequency: 47 / 63 Hz
• Rated Current (LO): 104 A
• Rated Current (HO): 94 A

Output Specifications

• Voltage: 3 Phase 220/380 / 277/480 V AC
• Frequency for Vector Control: 0 / 200 Hz
• Frequency for V/f Control: 0 / 550 Hz
• Rated Current (LO): 110 A
• Rated Current (HO): 90 A
• Max. Output Current: 180 A
• Rated Power (LO): 55 kW (75 hp)
• Rated Power (HO): 45 kW

Additional Information

• Efficiency: 0.98 η
• Power Factor: 0.95 λ
• Cooling: Internal Air Cooling
• Protection Class: IP20
• Dimensions: 551 x 275 x 237 mm
