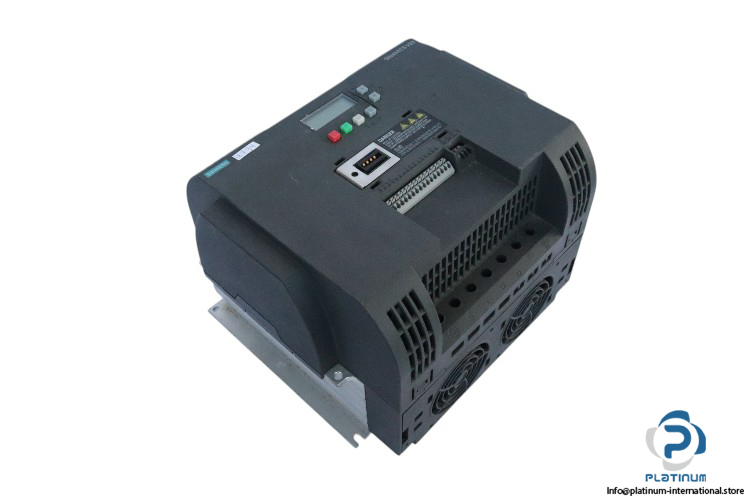

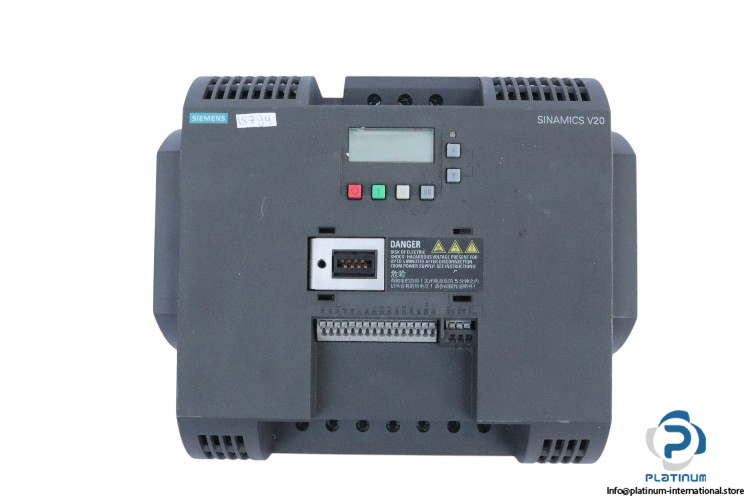

Siemens SINAMICS V20 Inverter

The Siemens SINAMICS V20 Inverter is a versatile and reliable inverter designed for industrial motor control applications. With an output power of 11 kW (20 hp) and a wide frequency range of 0 to 550 Hz, this inverter ensures precise control and high performance for 3-phase motors, making it ideal for a variety of industrial environments. It offers flexible mounting options and is protected with an IP20 rating, ensuring durability and reliability in demanding conditions.

• Manufacturer: Siemens
• Type: Inverter
• Model Number (MNR): 6SL3210-5BE31-1CV0
• Family: SINAMICS V20

Technical Information

• Input Voltage: 3 phase/380 to 480 V AC
• Input Current: 30.4 A
• Input Frequency: 50/60 Hz
• Output Voltage: 3 phase/400 to 480 V AC
• Output Current: 25 A
• Output Frequency: 0 to 550 Hz
• Motor Power: 11 kW (20 hp)
• Mounting Position: Through-hole mounting / wall mounting / side-by-side mounting
• Protection Degree: IP20
• Operating Temperature: -10 to 60°C
• Dimensions: 240 x 206.5 x 172.5 mm

The Siemens SINAMICS V20 Inverter is built for durability and performance, offering flexible installation options and exceptional motor control in industrial applications requiring precise speed and torque regulation.
