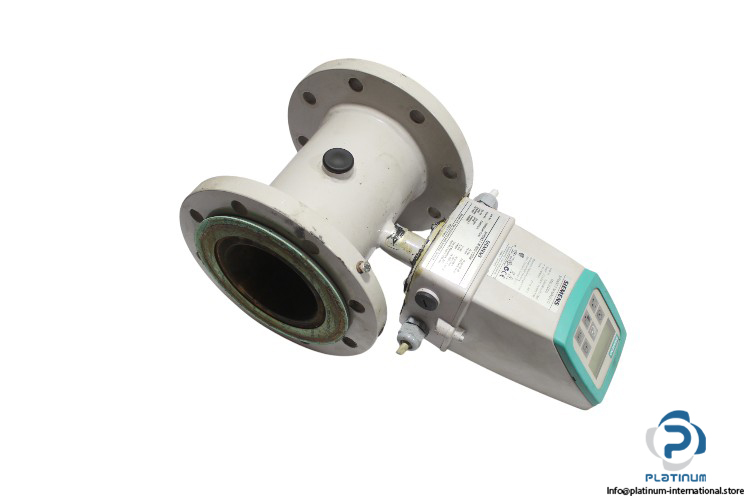

Siemens 7ME65204BC122JB1 Electromagnetic Flow Sensor

The Siemens 7ME65204BC122JB1 Electromagnetic Flow Sensor offers precise measurement for flow rate, ideal for industrial applications requiring high accuracy. The SITRANS F M MAG 5100W family provides reliable operation with excellent corrosion resistance.

Manufacturer: Siemens

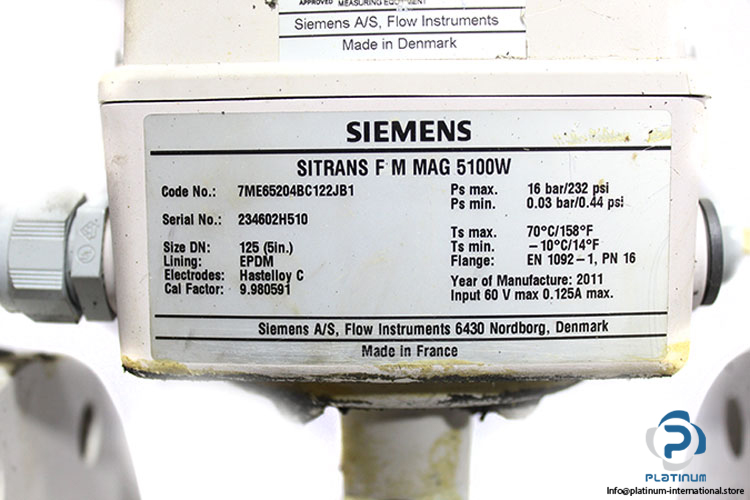

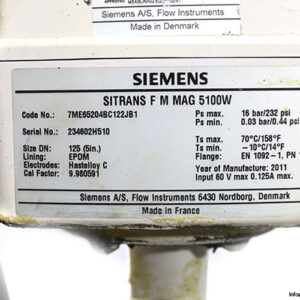

Model: 7ME65204BC122JB1

Type: Electromagnetic Flow Sensor

Serial No.: 234602H510

Family: SITRANS F M MAG 5100W

Technical Information:

• Input Max. Voltage [V]: 60
• Input Max. Current [A]: 0.125
• Flow Rate [m3/h]: 100
• Diameter Nominal [mm]: DN 125 (5 inch)
• Lining: EPDM
• Electrodes: Hastelloy C
• Cal Factor: 9.980591
• Max. Pressure [bar]: 16
• Min. Pressure [bar]: 0.03
• Range Temperature [°C]: -10 to 70
• Material (Housing and Flanges): Carbon steel ASTM A 105, with corrosion resistant coating
• Flange: EN 1092-1, PN 16

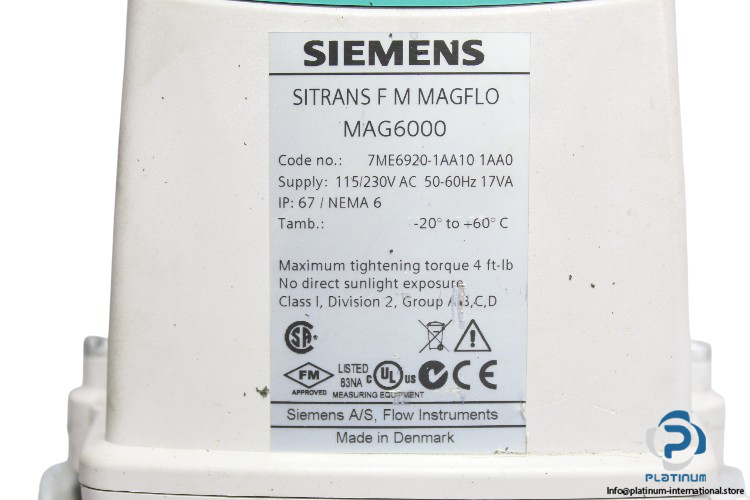

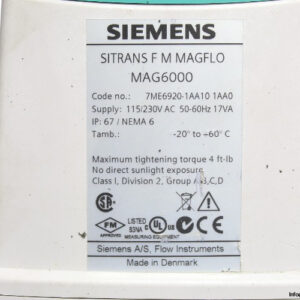

Attachment: SIEMENS 7ME6920-1AA10 1AA0 TRANSMITTER

Manufacturer: Siemens

Model: 7ME6920-1AA10 1AA0 (4X)

Type: Transmitter

Family: SITRANS F M MAGFLO MAG6000

Technical Information:

• Supply: 115 to 230 V AC
• Frequency: 50-60 Hz
• Power: 17 VA
• Temperature: -20 to 60 °C
• Maximum Tightening Torque: 4 ft-lb

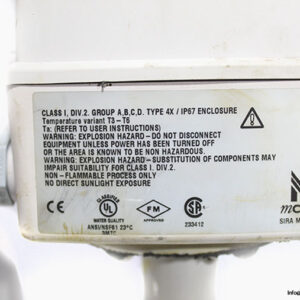

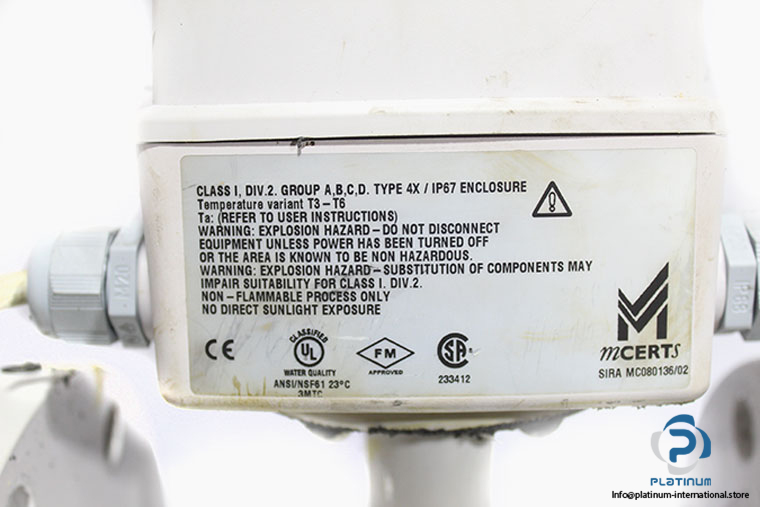

• Class: I
• Group: A, B, C, D
• Enclosure Protection [IP]: IP67 / NEMA 4X/6
