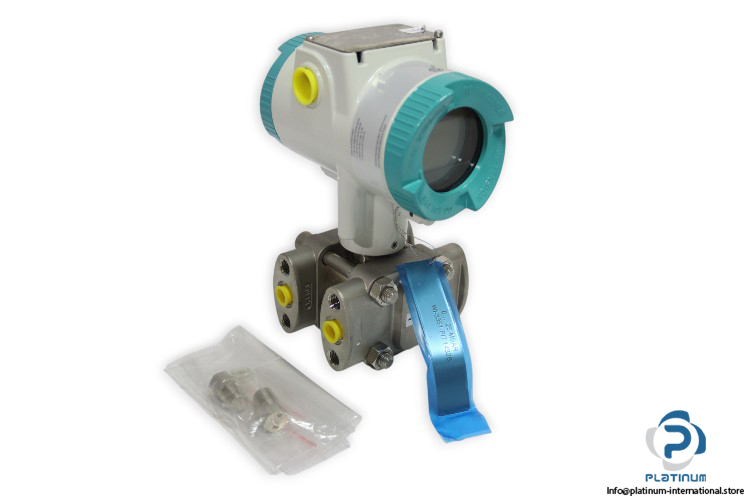

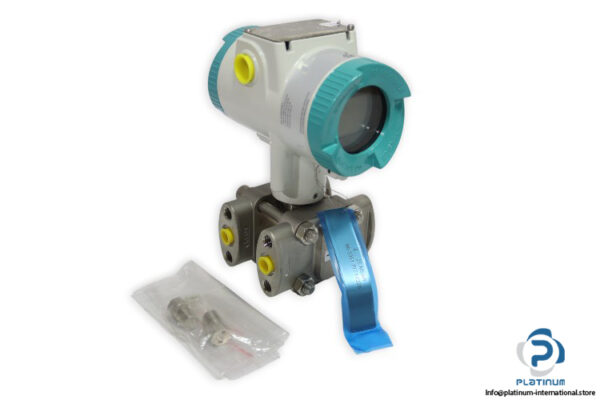

SIEMENS 7MF0310-1DL01-5SF2-Z SITRANS P320 Pressure Transmitter
The SIEMENS SITRANS P320 7MF0310-1DL01-5SF2-Z Pressure Transmitter provides high accuracy, long-term stability, and digital communication via HART protocol. Designed for precise low-pressure measurement, it ensures reliable performance in demanding industrial environments.

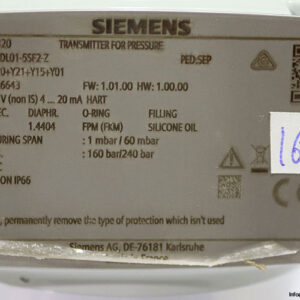

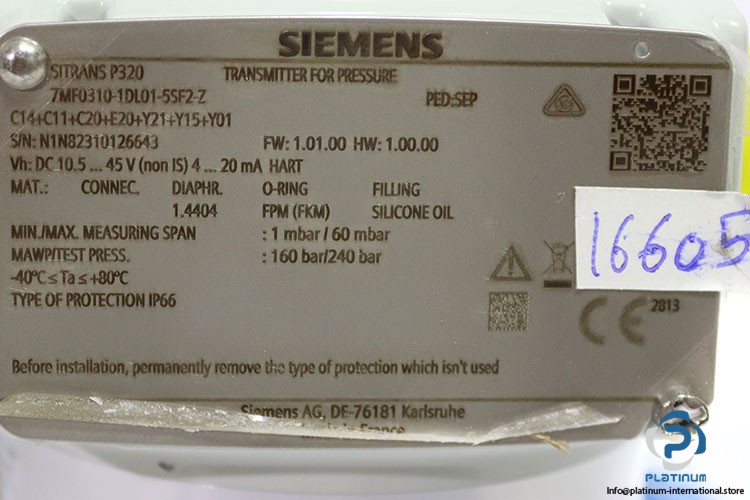

Manufacturer: SIEMENS
Type: Pressure Transmitter
Model: 7MF0310-1DL01-5SF2-Z
Series: SITRANS P320

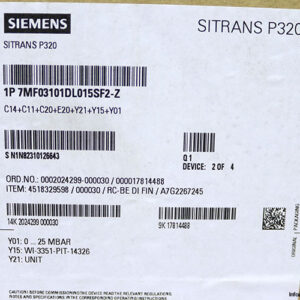

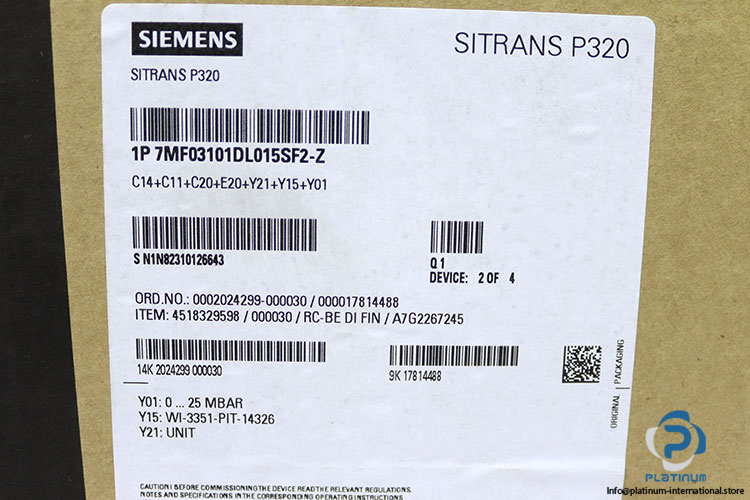

Configuration Code: C14 + C11 + C20 + E20 + Y21 + Y15 + Y01
Serial Number: N1N82310126643
Order Number: 0002024299-000030 / 000017814488

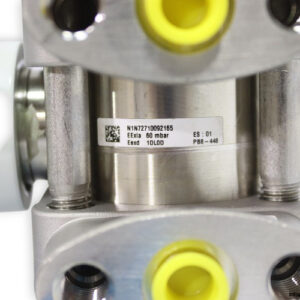

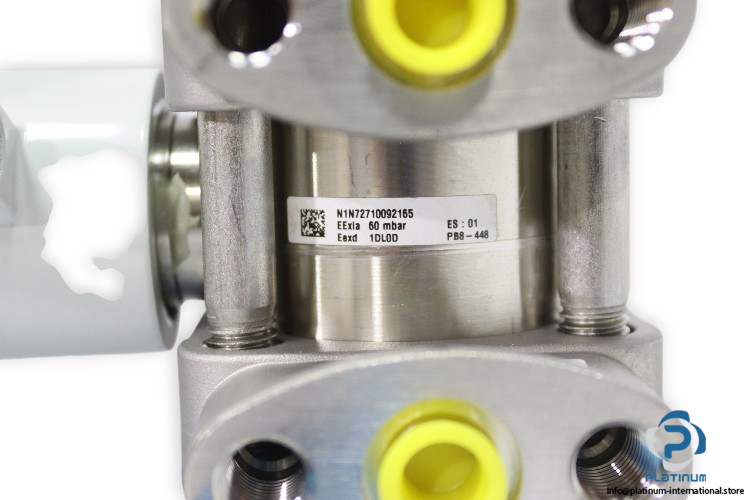

Codes: 4518329598 / A7G2267245 / N1N72710092165
Firmware Version: 1.01.00
Hardware Version: 1.00.00
Technical Information
- Power Supply: 10.5 to 45 V DC (non IS)
- Output Signal: 4 to 20 mA plus HART
- Measurement Range (Y01): 0 to 25 mbar

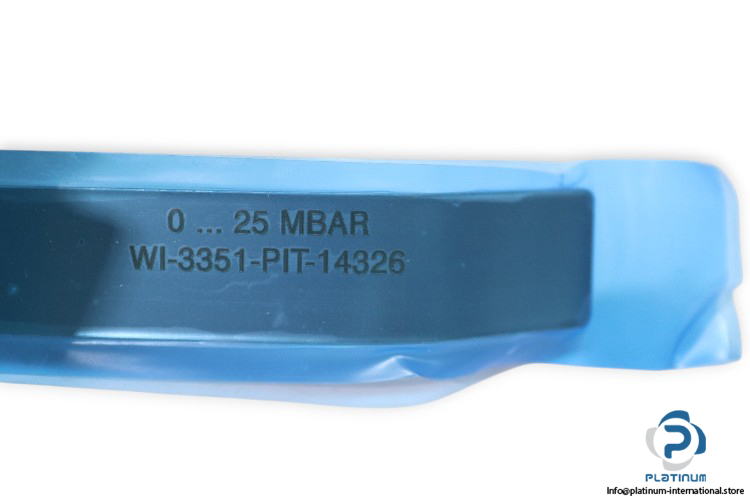

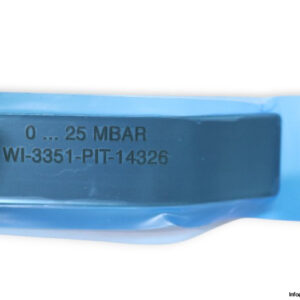

- Tag Number (Y15): WI-3351-PIT-14326
- Unit (Y21): UNIT
- Communication Protocol: HART
- Type of Protection: IP66
- Housing Material: Aluminium, coated
- Connection Type: 1/4 inch or 1/2 inch NPT or process flanges (stainless steel)
- Process Connection Material: 1.4404 (AISI 316L Stainless Steel)
- Diaphragm Material: 1.4404 (AISI 316L Stainless Steel)
- O Ring Material: FPM (Viton or FKM)
- Filling Fluid: Silicone Oil
- Minimum Measuring Span: 1 mbar
- Maximum Measuring Span: 60 mbar
- Maximum Working Pressure: 160 bar or 240 bar
- Accuracy: less than or equal to 0.065 percent of calibrated span
- Temperature Limits: minus 40 to plus 80 degree Celsius

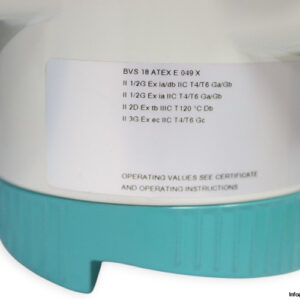

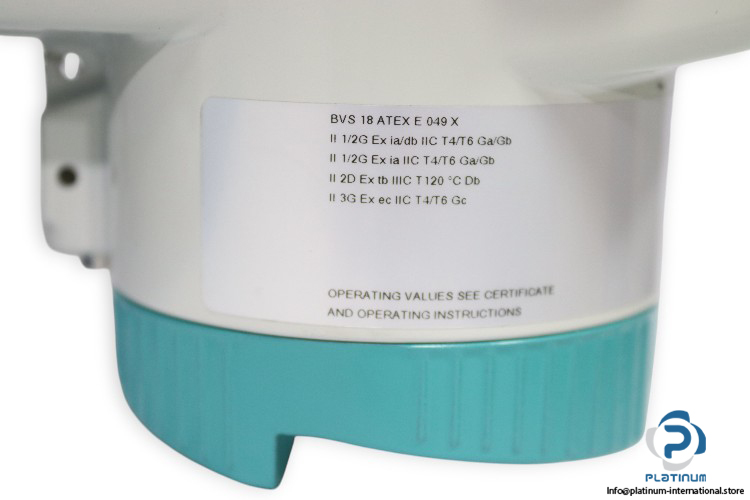

- Explosion Protection: ATEX
