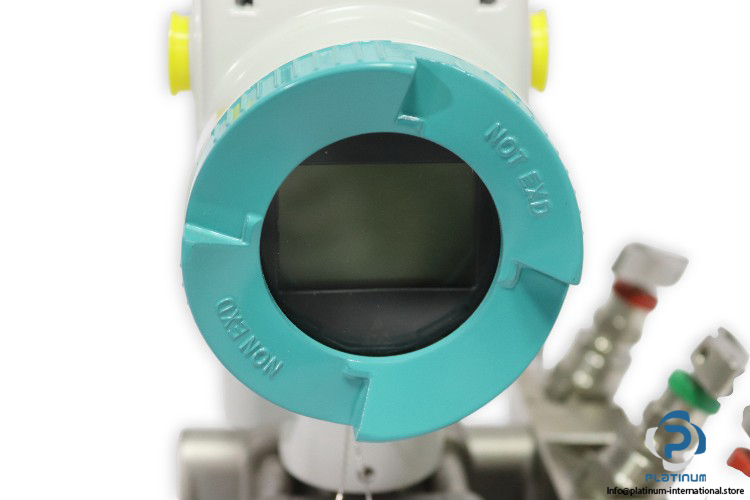

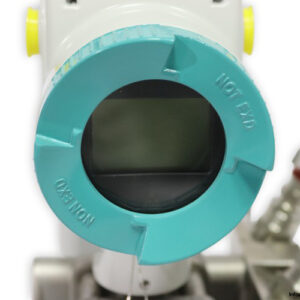

SIEMENS 7MF0340-1BL01-5AF2-Z Pressure Transmitter
The SIEMENS 7MF0340-1BL01-5AF2-Z Pressure Transmitter from the SITRANS P320 series is a high-precision differential pressure transmitter designed for reliable measurement and monitoring in industrial process applications. It features HART communication, robust aluminum housing, and a stainless-steel diaphragm for superior durability in demanding environments.
Manufacturer: SIEMENS
Type: Pressure Transmitter
Model: 7MF0340-1BL01-5AF2-Z
Series: SITRANS P320

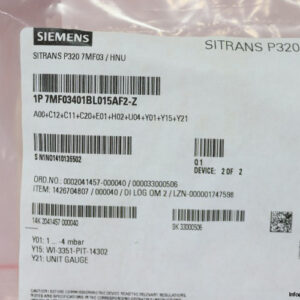

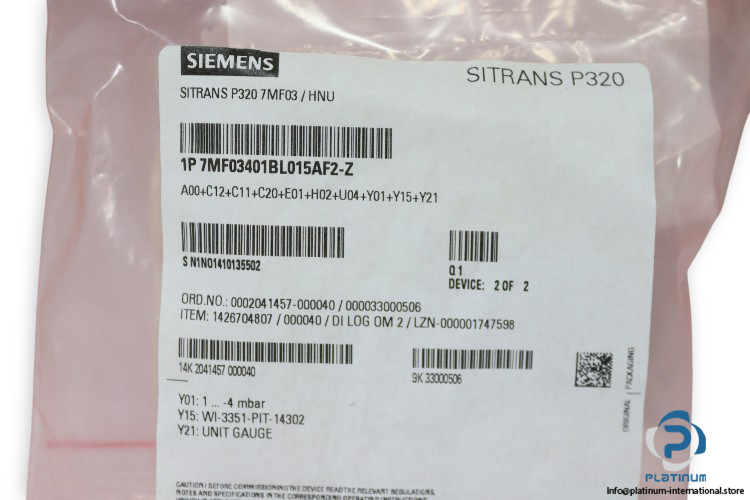

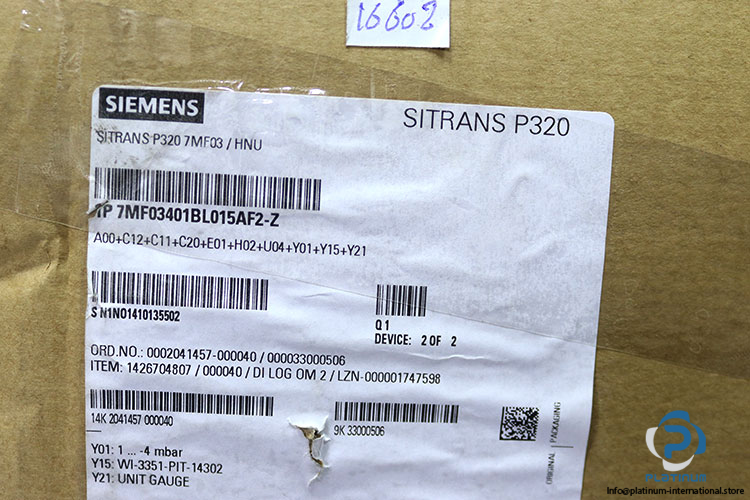

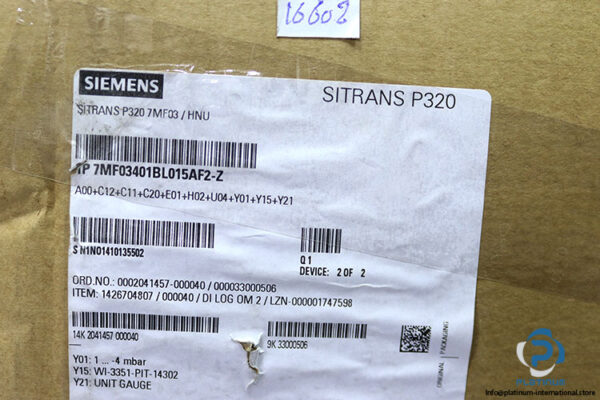

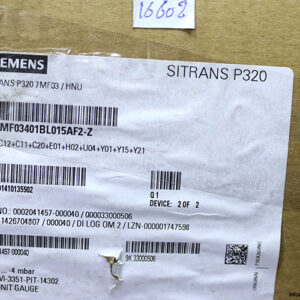

Serial Number: N1N01410135502
Order Number: 0002041457-000040 / 000033000506
Item: 1426704807 / 000040
LZN: 000001747598
Codes: 14K 2041457 000040 , 9K 33000506

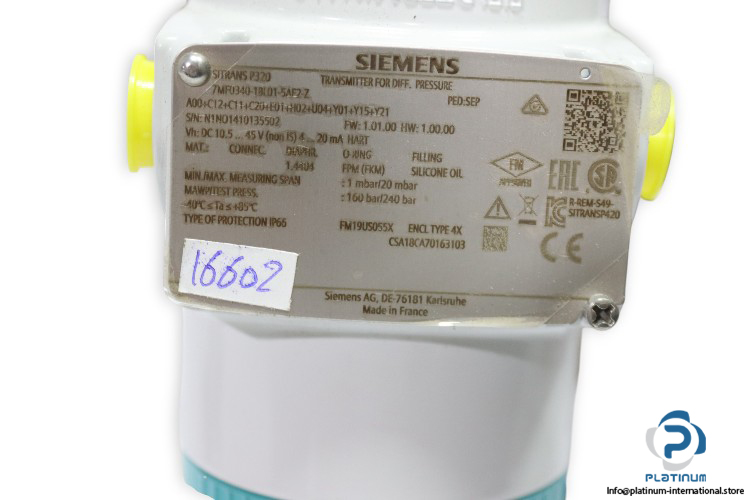

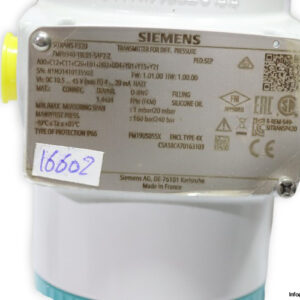

Technical Information
- Communication Protocol: HART
- Power Supply: 10.5 to 45 V DC
- Output Signal: 4 to 20 mA
- Measuring Range: 1 to 4 mbar
- Process Connection: 1/4 inch NPT
- Filling Fluid: Silicone Oil
- Minimum and Maximum Measuring Span: 1 mbar to 20 mbar
- Maximum Working Pressure: 160 bar to 240 bar
- Enclosure Type: 4X (IP65)
- Operating Temperature: minus 40 to plus 85 degree Celsius
- Type of Protection: IP65
- Material: Housing Aluminum, Diaphragm Stainless Steel

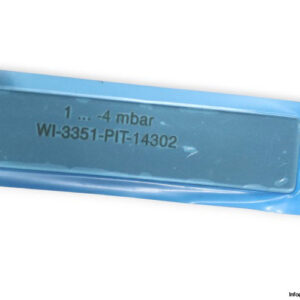

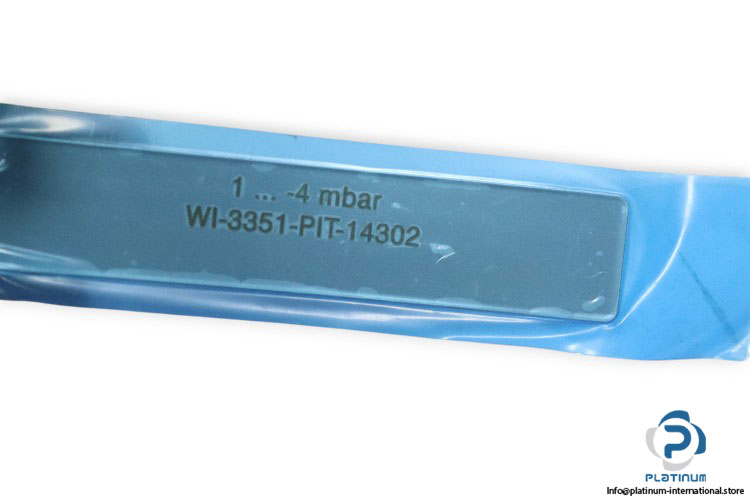

- Tag Number: WI-3351-PIT-14302

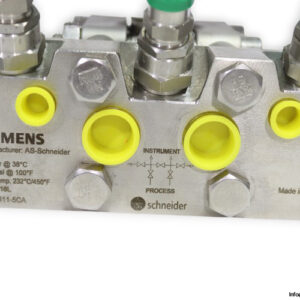

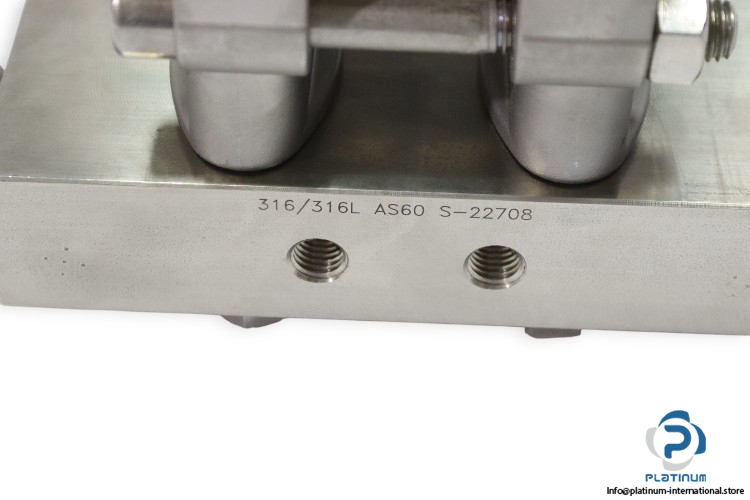

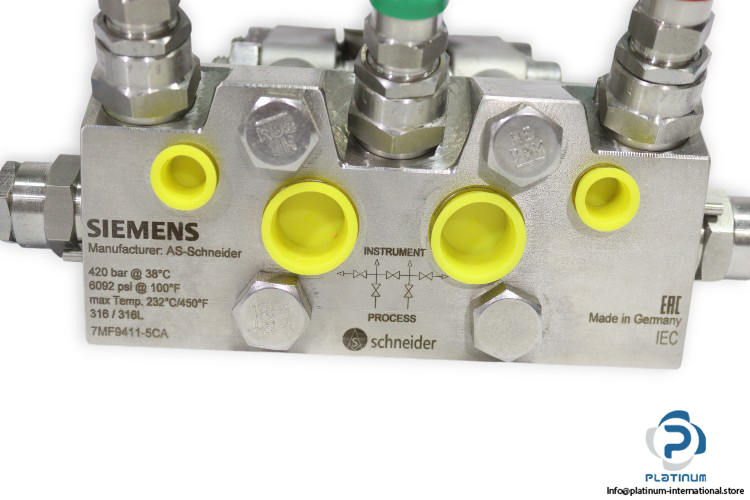

- Attached With: AS-Schneider 5-Valve Manifold
- Manifold Model: 7MF9411-5CA
- Manifold Material: 316 / 316L Stainless Steel
- Maximum Pressure: 420 bar at 38 degree Celsius
- Maximum Temperature: 232 degree Celsius / 450 degree Fahrenheit

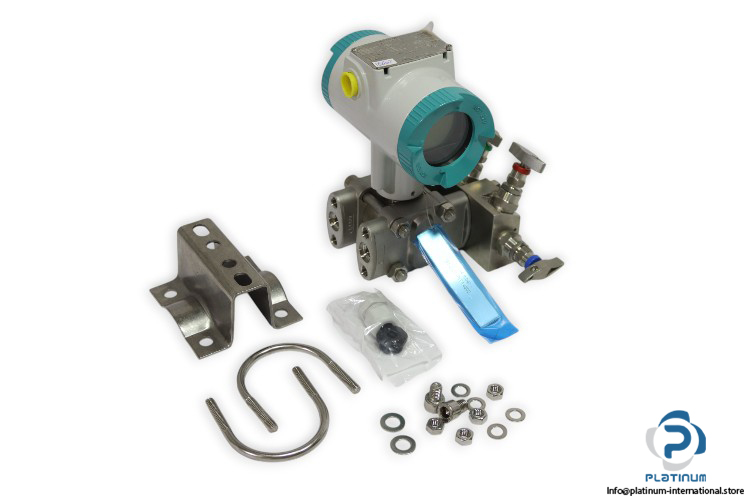

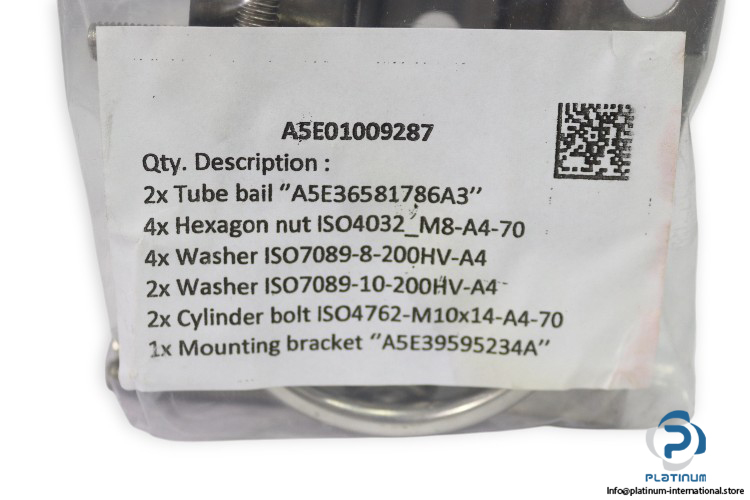

- Mounting Kit (Part No.): A5E01009287
- Included Components: 2 Tube bails (A5E36581786A3), 4 Hexagon nuts ISO4032 M8-A4-70, 4 Washers ISO7089-8-200HV-A4, 2 Washers ISO7089-10-200HV-A4, 2 Cylinder bolts ISO4762 M10×14-A4-70, 1 Mounting bracket (A5E39595234A)
