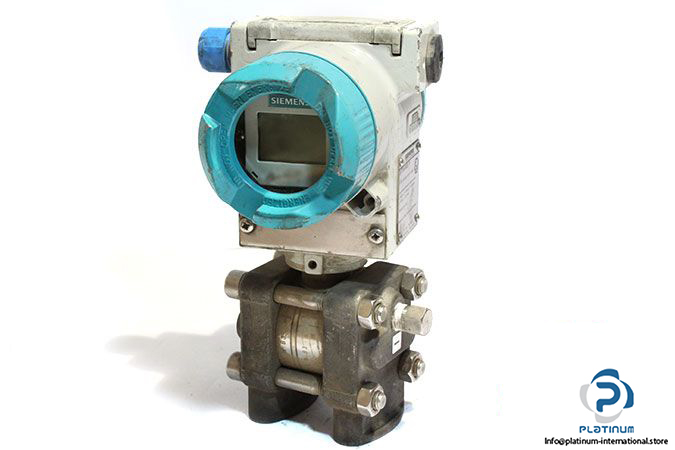

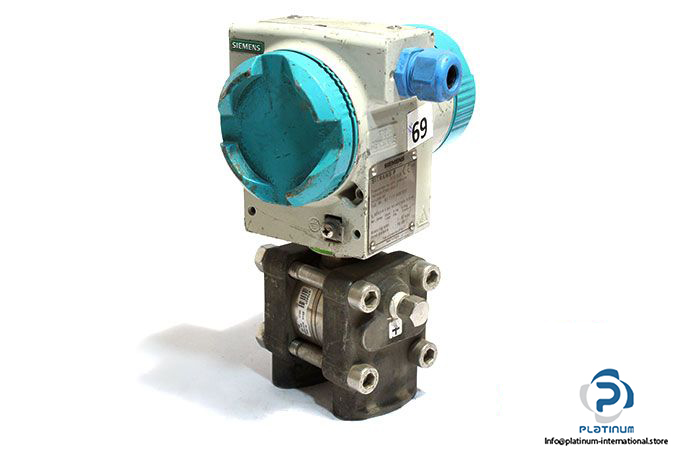

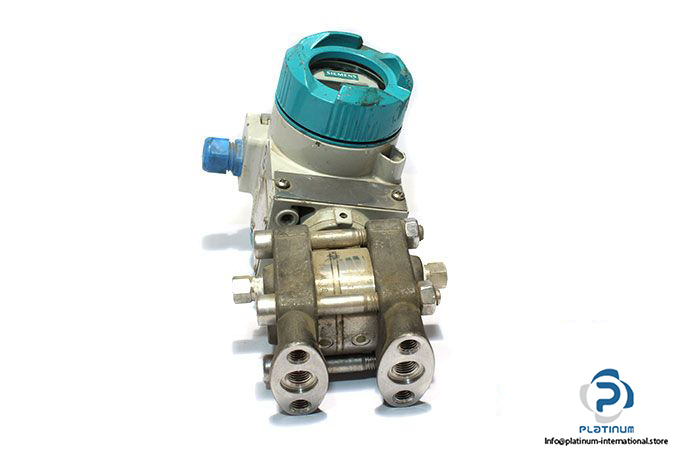

SIEMENS SITRANS P 7MF4433-1CA02-2BB7-Z DIFFERENTIAL PRESSURE & FLOW TRANSMITTER

The Siemens SITRANS P differential pressure and flow transmitter offers reliable and precise measurement in industrial applications involving gases, steam, and liquids. Built for durability, it features high-quality stainless steel components and explosion protection.

Manufacturer: SIEMENS
Type: Differential Pressure and Flow Transmitter
Family: SITRANS P
Model: 7MF4433-1CA02-2BB7-Z

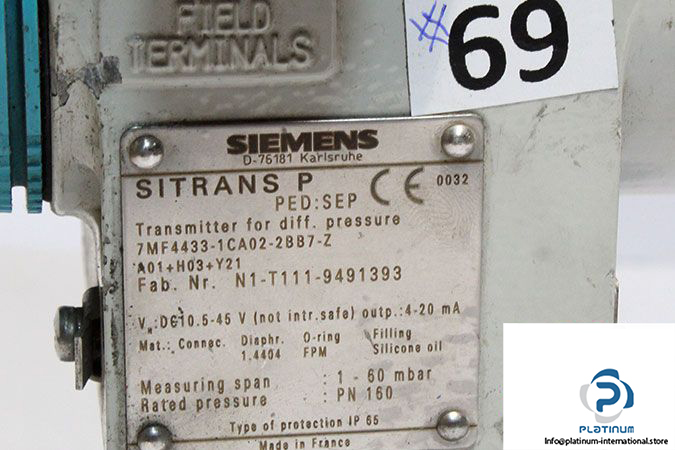

FAB NO: N1-T111-9491393
Medium: Non-aggressive gases, steam, and liquids

Technical Information

• Output Signal: 4 / 20 mA
• Voltage: 105 … 45 V
• O-ring: FPM
• Measuring Cell Fill: Silicon Oil
• Rated Pressure: PN160
• Measuring Span: 1 mbar / 60 mbar
• Electrical Connection: Pg 13.5 Compression Gland

Material Specifications

• Diaphragm: Stainless Steel
• Measuring Cell Parts: Stainless Steel
• Process Covers: Stainless Steel
• Process Connection: Female Thread ¼-18 NPT
• Housing Material: Die-cast Aluminium

Protection Features

• Explosion Protection: EEx ia
• Ingress Protection: IP65
