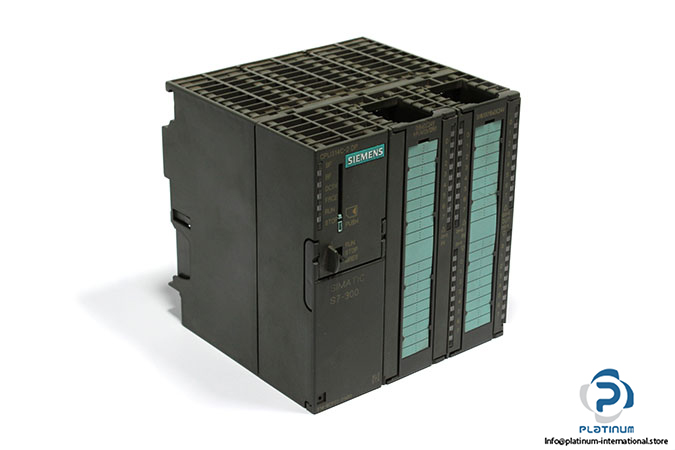

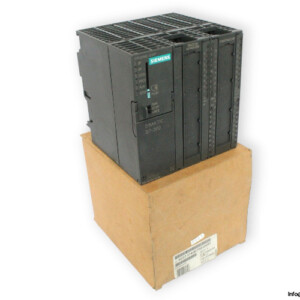

SIEMENS SIMATIC S7-300 CPU 314-6CF02-0AB0

The Siemens SIMATIC S7-300 CPU 314-6CF02-0AB0 is a high-performance compact programmable logic controller (PLC) designed for industrial automation systems requiring robust control, integrated communication, and reliable operation. This explosion-proof CPU is engineered to deliver precision, efficiency, and flexibility for a wide range of automation tasks.

Manufacturer: Siemens
Type: CPU
MNR: 6ES73146CF020AB0
Model: 314-6CF02-0AB0
Family: SIMATIC S7-300

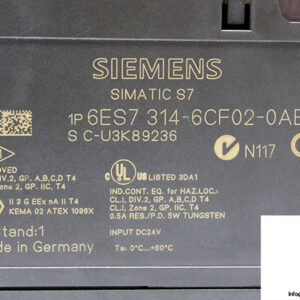

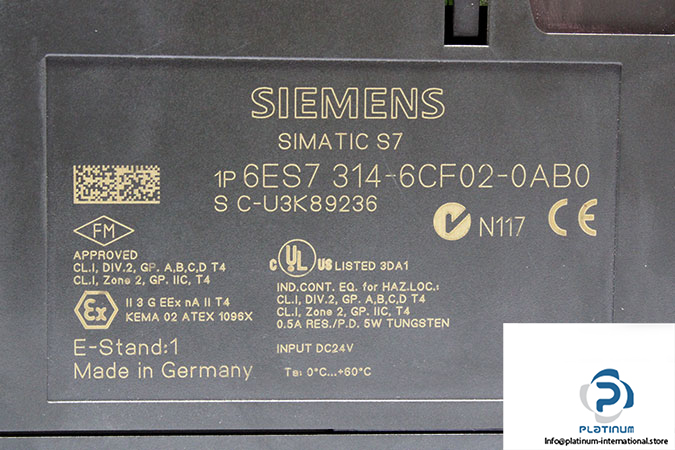

Serial No.: S C-U3K89236
E Stand: 1
Explosion Proof: EX

Technical Information

• Input Voltage: 24 V DC
• Current Consumption (Rated): 1000 mA
• Digital Inputs (DI): 24
• Digital Outputs (DO): 16
• Analog Inputs (AI): 4 + 1 Pt 100
• Analog Outputs (AO): 2
• Power Consumption: 14 W
• Number of Counters: 4
• Working Memory: 64 Kbyte
• Interface: Integrated DP
• Counter Frequency (Max): 60 kHz
• Compact: CPU with MPI
• Output Relay: Change-over contact
• Operating Temperature: 0 / 60°C
• Dimensions: 120 x 125 x 130 mm
