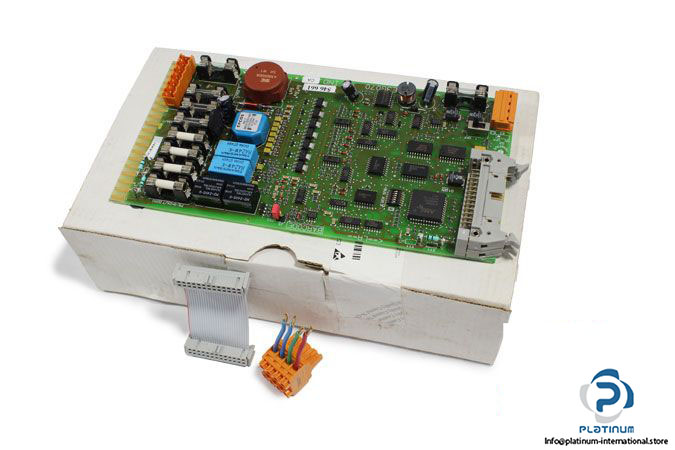

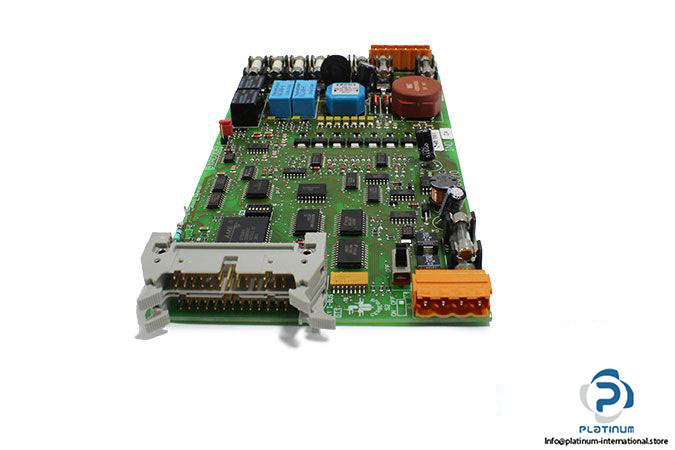

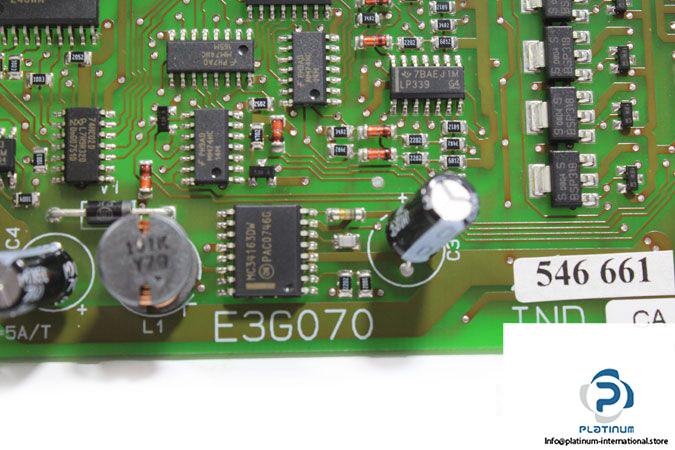

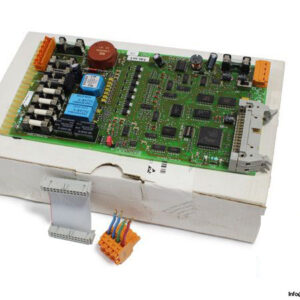

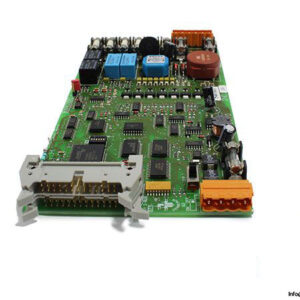

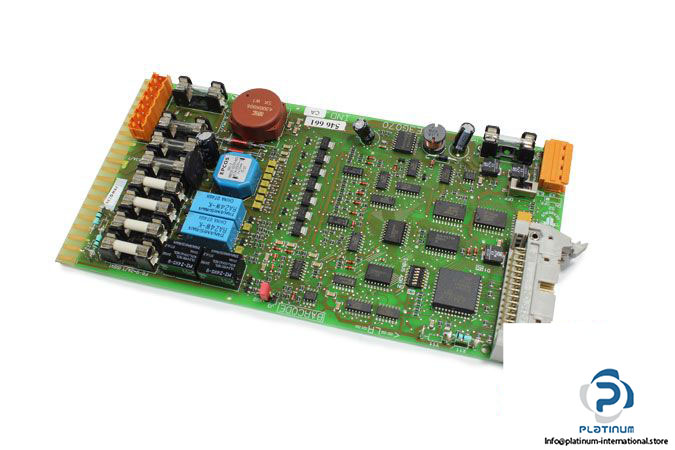

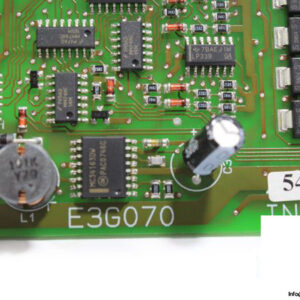

SIEMENS E3G 070 (FM) UNIVERSAL CONTROL MODULE

The SIEMENS E3G 070 (FM) is a compact and versatile universal control module tailored for smaller fire alarm or automation systems. It replaces the E3X10 and provides high integration and flexibility, ensuring dependable communication, monitoring, and control functionality in critical applications.

Manufacturer: SIEMENS
Type: Universal Control Module
Model: E3G 070 (FM)
Art No.: 5466610001
Ref No.: z_546661 ca / bpz 5466610001 / 28WQ223

Technical Information

• Application: Replacement for E3X10, suitable for smaller systems
• Remote Contacts: 2 for Alarm and Fault Transmission
• Monitored Lines: 2 monitored control lines with EMI and overvoltage protection
• Control Inputs/Outputs: 7 Programmable
• Supply Output (Monitored): Max. Load 630 mA (24 V)
• Supply Input: Max. Load 40 mA (24 V)
• Ground Fault Monitoring: Integrated
• Address Configuration: I-Bus address set via S3 switch
• Card Format: 100 mm x 200 mm
