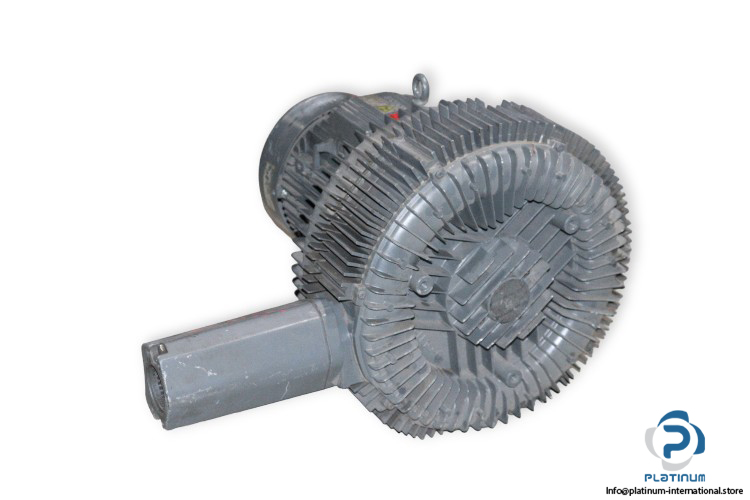

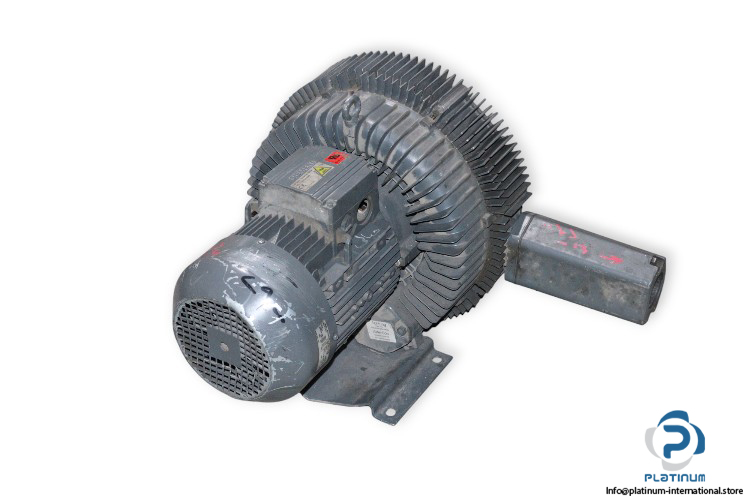

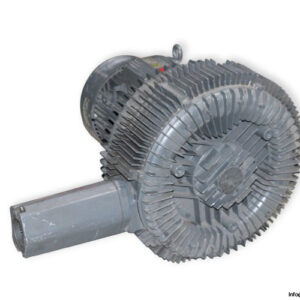

SIEMENS // NASH ELMO ELMO-G2BH1610-7HC36-Z SINGLE SIDE CHANNEL BLOWER
The Siemens // NASH ELMO ELMO-G2BH1610-7HC36-Z is a high-performance single side channel blower engineered for efficient vacuum and pressure applications. Designed to meet EN 60034 standards, it delivers reliable operation in demanding industrial environments, ensuring durability, high airflow, and energy efficiency.

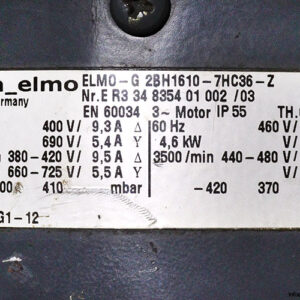

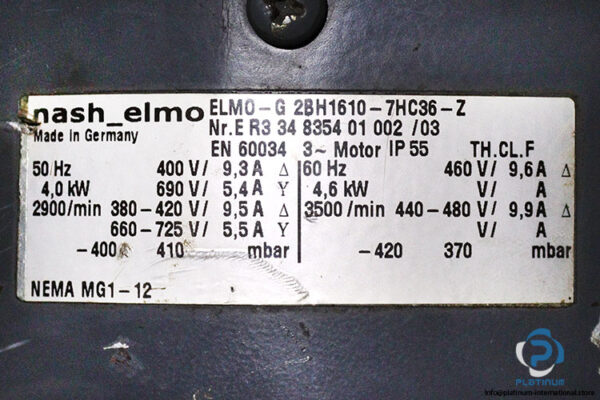

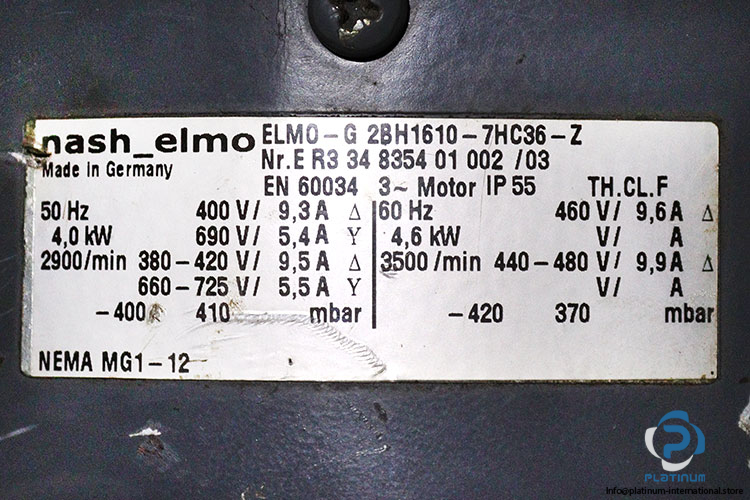

Manufacturer: Siemens // NASH ELMO
Type: Single Side Channel Blower
Model: ELMO-G2BH1610-7HC36-Z
Part No.: R3 34 8354 01 002 / 03
Standard: EN 60034
Technical Information
- Vacuum Pressure [mbar]: -400/+400 | -420/+370
- Rated Speed [rpm]: 2900 / 3500
- Rated Power [kW]: 4.0 / 4.6
- Rated Voltage at 50Hz [V]: 400-380-420 / 690-660-725 (Delta/Star)
- Rated Current [A]: 9.3-9.5 / 5.4-5.5
- Rated Voltage at 60Hz [V]: 460-440-480 (Delta)
- Rated Current [A] at 60Hz: 9.6 / 9.9
- Frequency [Hz]: 50 / 60
- Thermal Class: F
- Protection Class [IP]: 55
