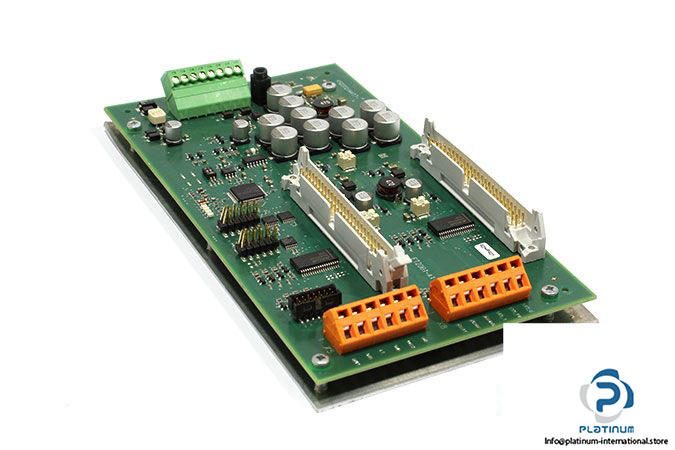

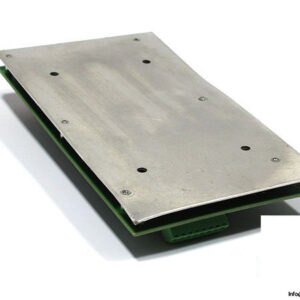

SIEMENS FT2001-A1 MIMIC DISPLAY DRIVER
The Siemens FT2001-A1 is a versatile mimic display driver designed for integration into fire detection and signaling systems. With fully programmable outputs and multiple connection options, it enables precise control and monitoring of LED-based mimic displays and periphery devices.
Manufacturer: Siemens
Type: Mimic Display Driver
Model: FT2001-A1

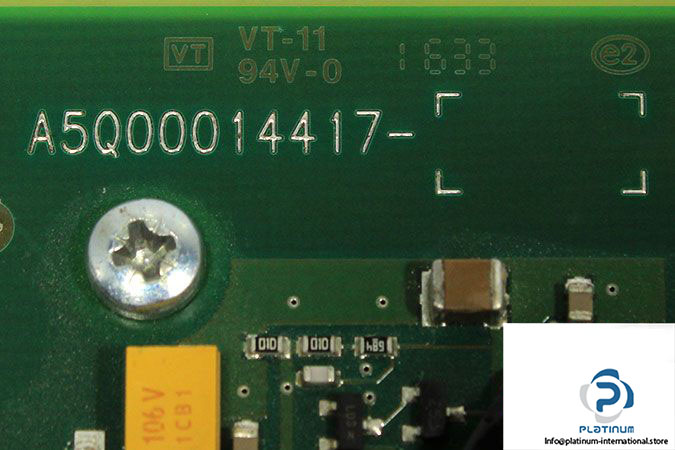

Order No.: A5Q00014417

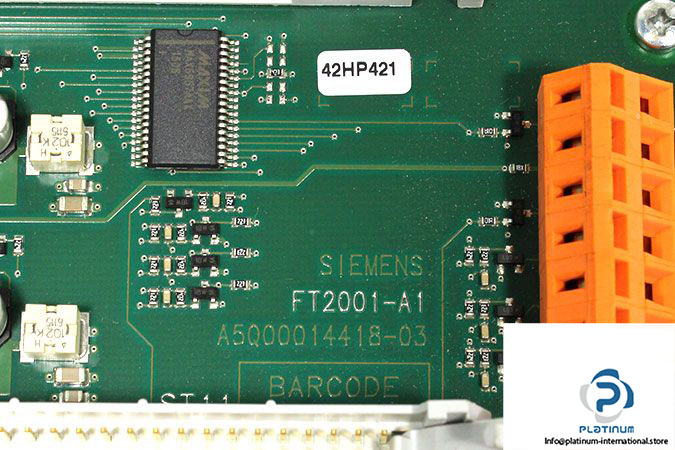

MRN: A5000014418-03
Technical Information
- Connection: FDnet / C-NET
- Power Supply: Via FDnet / C-NET or external AC/DC
- Programmable Outputs: 2x 24 outputs for LEDs, 3 for expanded periphery
- Control Outputs: 2 outputs for buzzer and LED status
- Function Inputs: 2 inputs for ˜Silence Buzzer™ and ˜LED Test™
- Line Separator: Integrated
- MC Link: For firmware update
- Voltage Supply: 14 / 32 VDC / 11 / 22 V AC
- LED Signal Output Connection: Plug-type with flat-ribbon cable
- Terminal Connection: 0.08 / 1.5 mm²
- Operating Temperature: 0 / 40 °C
