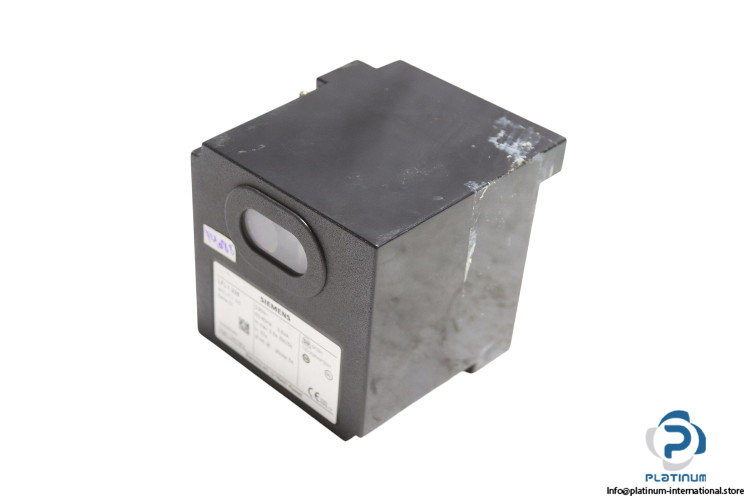

SIEMENS LFL1335 GAS BURNER CONTROLLER
The Siemens LFL1.335 is a reliable gas burner controller designed for safe and efficient burner operation in industrial and commercial heating systems. It provides precise ignition, monitoring, and control functions, ensuring optimal performance under demanding conditions.
Manufacturer: Siemens
Type: Gas Burner Controller

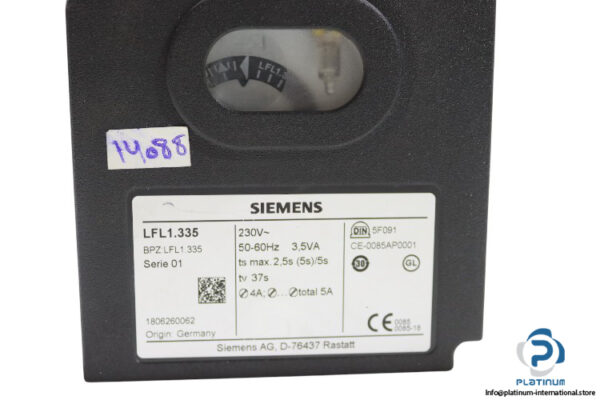

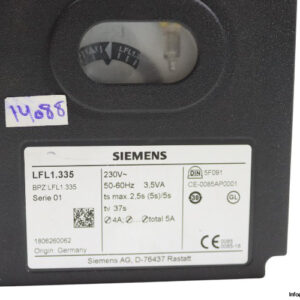

Model: LFL1.335
Series: 01
Technical Information
- Supply Voltage: 220 / 240 V AC
- Input Current at Terminal 1 Max.: 5 A
- Current Rating of Control Terminals: 4 A
- Frequency: 50 / 60 Hz
- Power Consumption: 3.5 VA
- Auxiliary Switch: 6 Changeover (CO)
- Ignition Safety Time (Ts): 2.5 s
- Prepurge Time with Air Damper Open (Tv): 37 s
- Temperature Range: -20 / 60 °C
