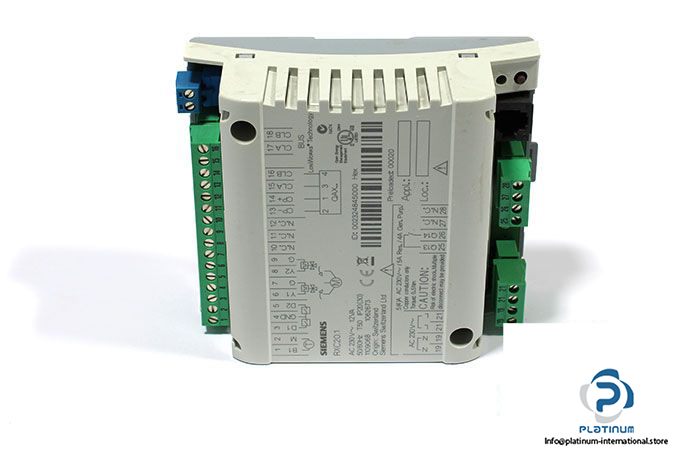

SIEMENS DESIGO RXC20.1/00020 ROOM CONTROLLER
The Siemens RXC20.1/00020 is a high-performance room controller from the Desigo RXC family, designed for precise temperature control in individual rooms. Suitable for fan-coil systems, chilled ceilings, and radiators, it features LONMARK® compatible bus communications for seamless integration into building automation systems.
Manufacturer: Siemens
Type: Room Controller
Family: Desigo RXC
Model: RXC20.1/00020

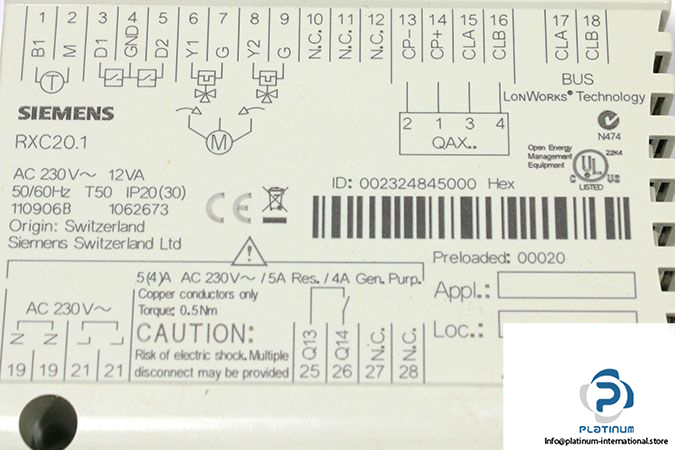

ID No.: 002324845000
SN: S 110906B
Technical Information
- Operating Voltage: 230 V AC
- Line Frequency: 50/60 Hz
- Power Consumption: 12 VA
- Control Algorithm: PI
- Communication: Bus: LonWorks, Room unit: PPS2
- Service Plug: RXT10.2, RXT20.1
- Analog Inputs: 1
- Digital Inputs: 2
- Relay Outputs: 1
- Relay Output Switching Voltage: AC 250 V
- Relay Output Switching Current: 5 (4) A
- Triac Outputs: ON/OFF
- Triac Output Switching Voltage: AC 24 V
- Triac Output Switching Current: 0.5 A

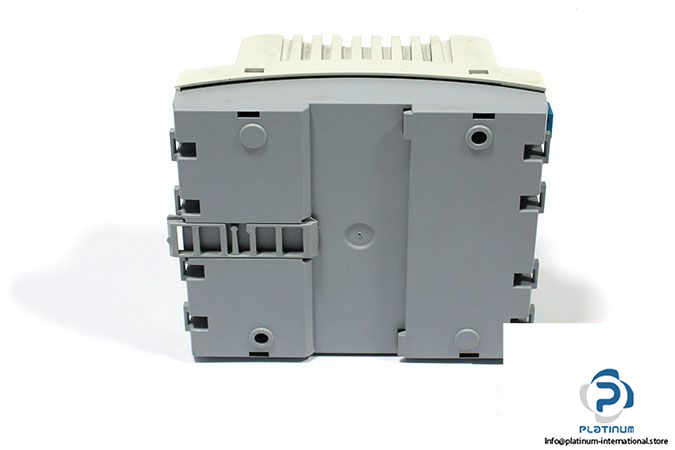

- Mounting: DIN rail, For screw fixing
- Mounting Location: Ceiling voids with cover, Fan coil, Panel
- Dimensions (W x H x D): 113 x 167 x 62 mm
