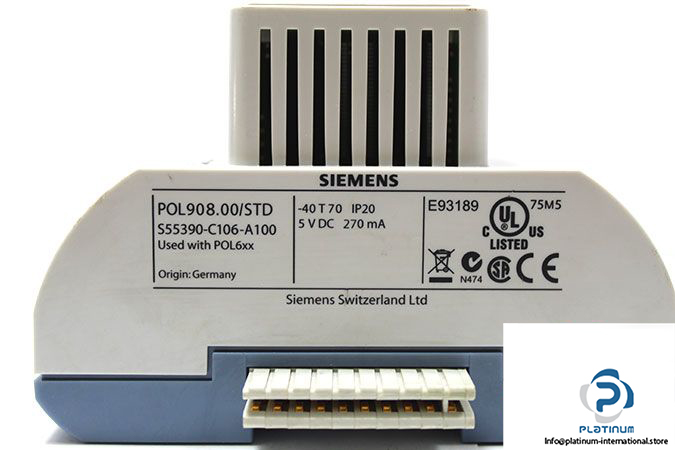

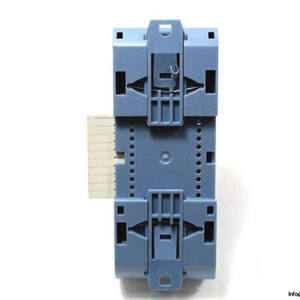

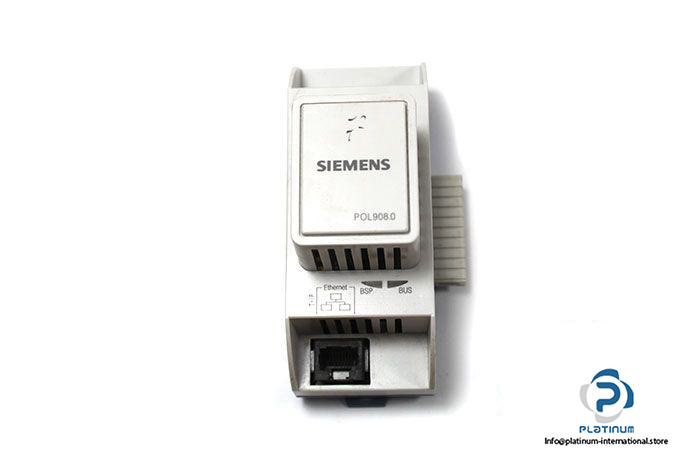

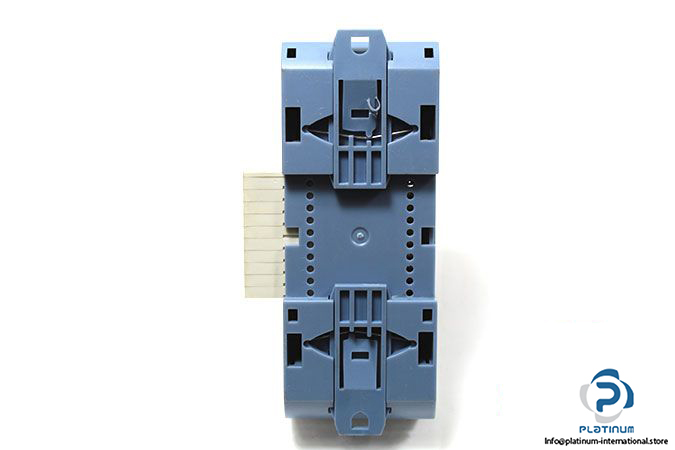

SIEMENS POL908 BACnet IP COMMUNICATION MODULE
The Siemens POL908 BACnet IP is a communication module from the Climatix„¢ family, designed to interface Climatix POL6xx.xx controllers with BACnet IP networks. Built for reliability in extreme environments, this module supports precise electronic control for household and industrial HVAC applications.
Manufacturer: Siemens
Family: Climatix„¢
Type: Communication Module
Model: POL908 BACnet IP
Part No.: S55390-C106-A100
MRN: POL908.00/STD

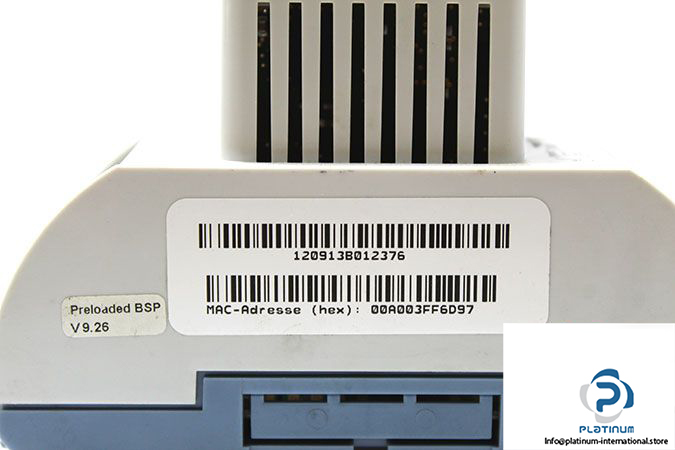

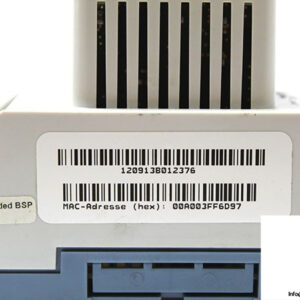

Ref No.: 120913B012376
Description: Communication module to connect a Climatix POL6xx.xx controller to a BACnet IP network, electronic control for household and similar use, part of the Climatix product range.
Technical Information
- Power Supply: DC 5 V (± 5 %), max. 270 mA
- Interface: BACnet IP; Ethernet 10/100 Mbit (IEEE 802.3U)
- Dimensions (W x H x D): 45 x 110 x 75 mm
- Operating Temperature: -40°C / 70°C
