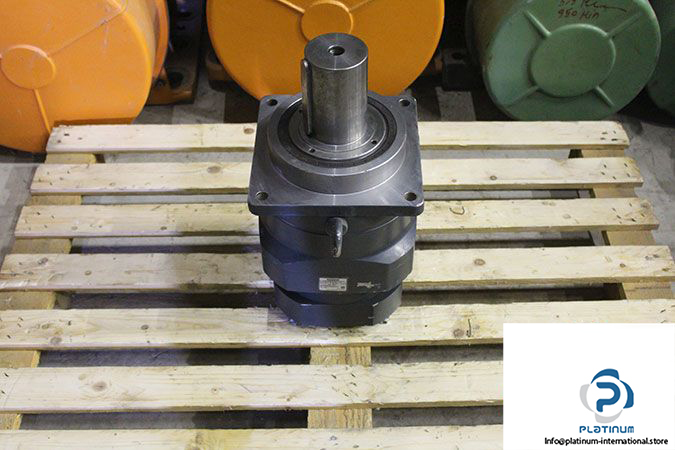

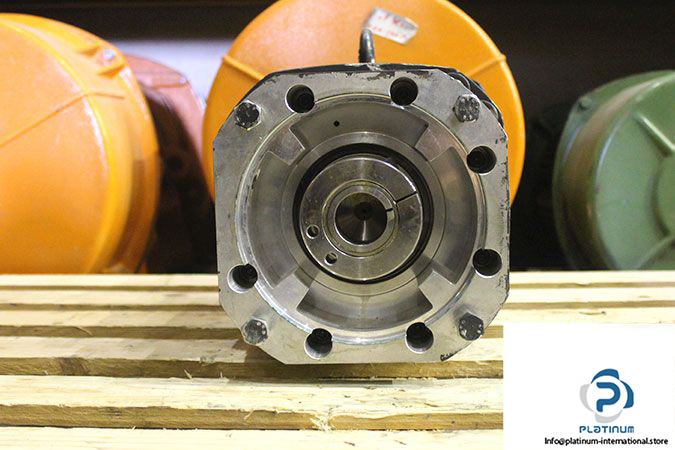

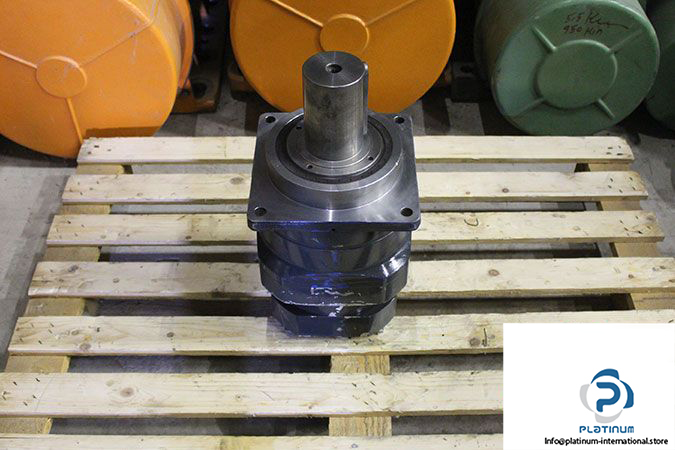

SIEMENS SP240S-MF2 PLANETARY GEARBOX WITH MOTOR

The Siemens SP240S-MF2 planetary gearbox with 1FT6105-8AF71-1AG1-Z motor is designed for high torque transmission, precision performance, and adaptability in demanding industrial applications. Its robust SP+ series build ensures reliable operation under heavy loads, while the 2-stage configuration delivers smooth and efficient power transfer.

Manufacturer: Siemens
Type: Planetary Gear Box
Gear Unit Model: SP240S-MF2

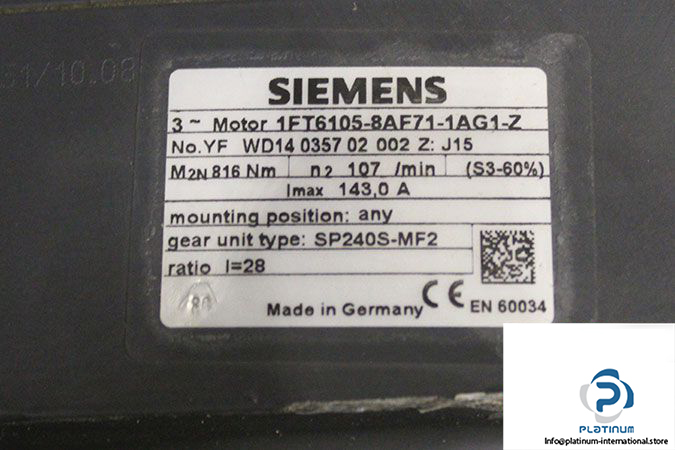

Motor Model: 1FT6105-8AF71-1AG1-Z
Part No.: wd14 0357 02 002 z: j15

Technical Information

• Ratio: 1:28
• Series: SP+
• Frame Size: 240
• Mounting Position: Any
• Number of Stage: 2-stage
• Shaft: 85 mm
• Hollow Shaft: 38 mm
• Flange Diameter: 210 mm
• Max Current: 143 A
• Rated Torque: 816 Nm
• Rated Speed: 107 rpm
