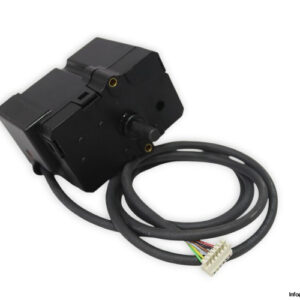

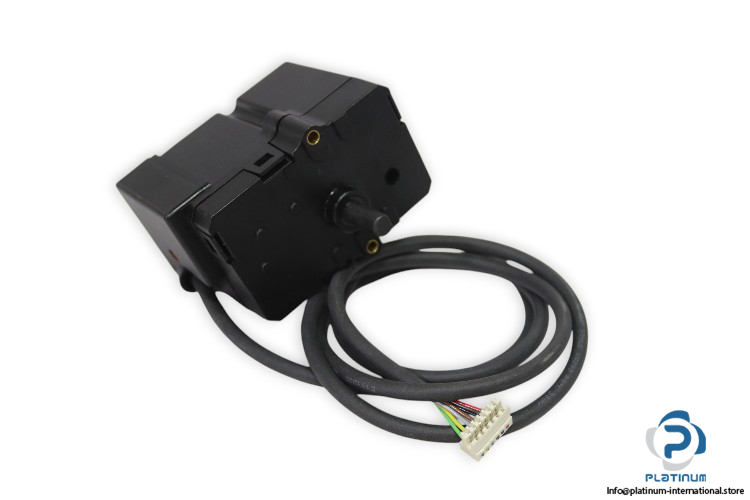

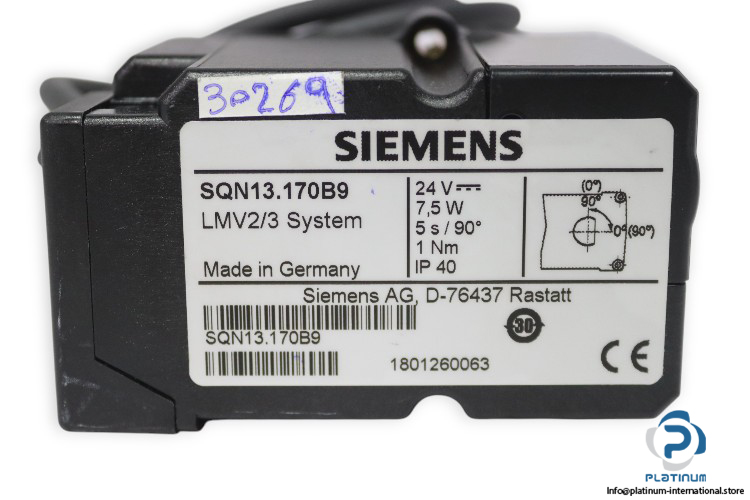

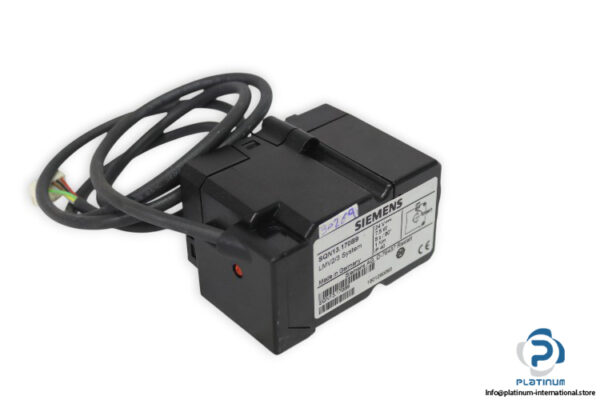

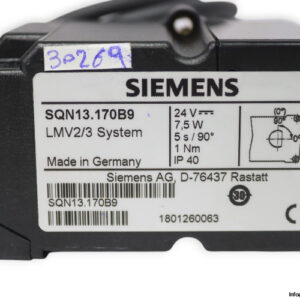

Siemens SQN13.170B9 Actuator

The Siemens SQN13.170B9 actuator is designed for use with LMV2/3 systems, providing precise control of air/gas dampers and control valves in oil or gas burner applications. With adjustable running times, robust torque, and reliable performance, it ensures efficient burner management in industrial environments.

Manufacturer: Siemens
Type: Actuator
Model: SQN13.170B9
Code: 1801260063
System: LMV2/3

Technical information

• Voltage: 24 V
• Power: 7.5 W
• Direction of Rotation: Counterclockwise
• Gear: Plastic
• Running Time for 90°: 5 to 120 s
• Torque: 1 Nm
• Cable Length: 1.2 m
• IP Rate: IP40
• Temperature Range: -10 to +60 °C
• Depending on the Type of: Basic unit (LMV2 / LMV3)
• Used For: Air/gas dampers and control valves for oil burners or gas burners
• Running Times: Adjustable on the LMV2 / LMV3
