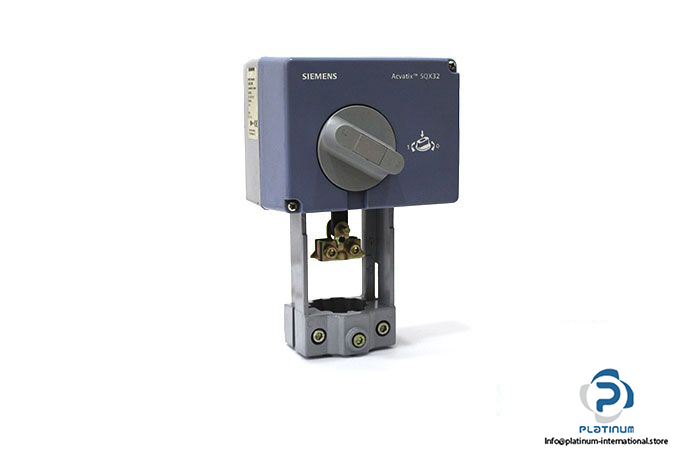

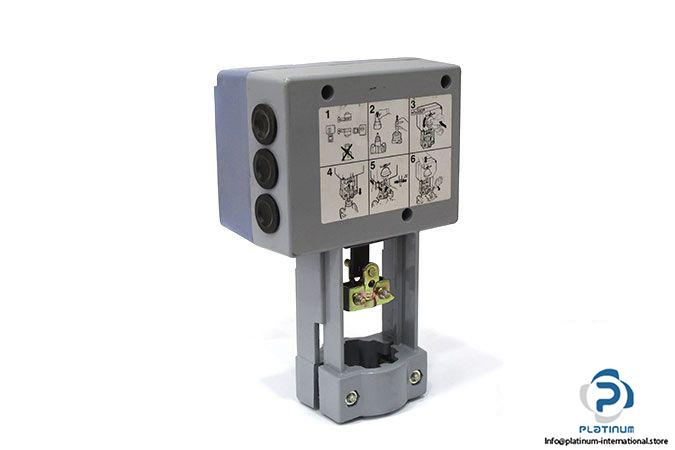

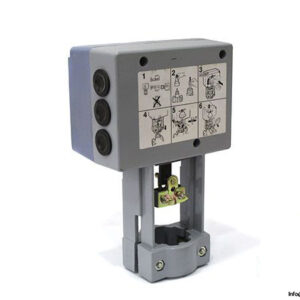

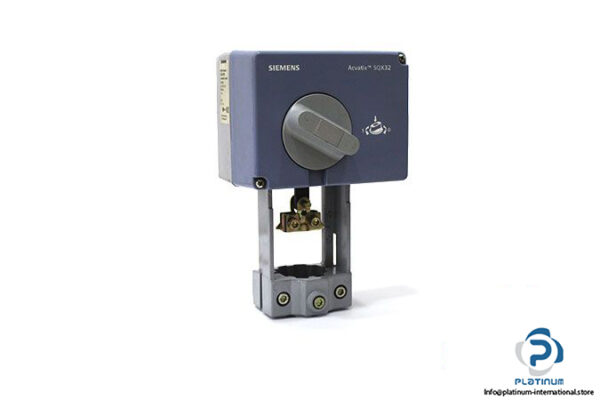

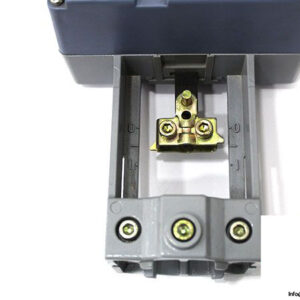

SIEMENS SQX 32.00 ELECTRO MOTORIC ACTUATOR

The Siemens SQX 32.00 Electro Motoric Actuator from the Acvatix„¢ TM family is engineered for precise water-side control in HVAC systems. Designed for use with 20 mm stroke valves, it ensures reliable regulation of chilled water, low-temp hot water, and high-temp hot water in heating, ventilation, and air conditioning applications. Built to deliver efficient performance under demanding conditions, this actuator combines robust construction with versatile positioning capabilities.

Manufacturer: SIEMENS
Type: Electro Motoric Actuator
Family: Acvatix TM

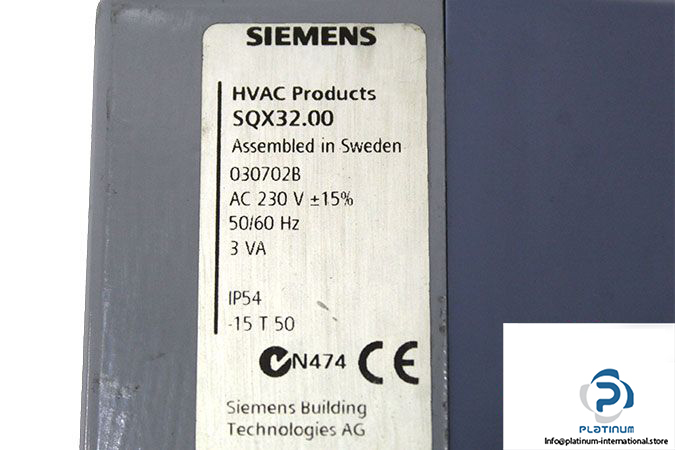

Model: SQX 32.00

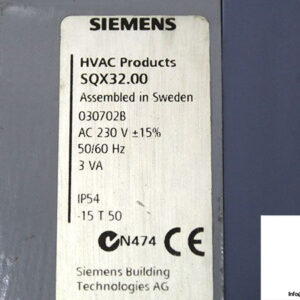

MRN: 030702B

Technical Information

• Operating Voltage: 230 V AC
• Frequency: 50/60 Hz
• Power Consumption: 3 VA
• Positions: 3, 20 mm Stroke
• Positioning Force: 700 N
• Positioning Time at 50 Hz: 150 sec.
• Ambient Temperature (Operation): -15 / 50 °C
• Medium Temperature: -25 / 150 °C
• Mounting Position: Upright to Horizontal
• Protection Class: IP54 (EN 60730)
• Materials:

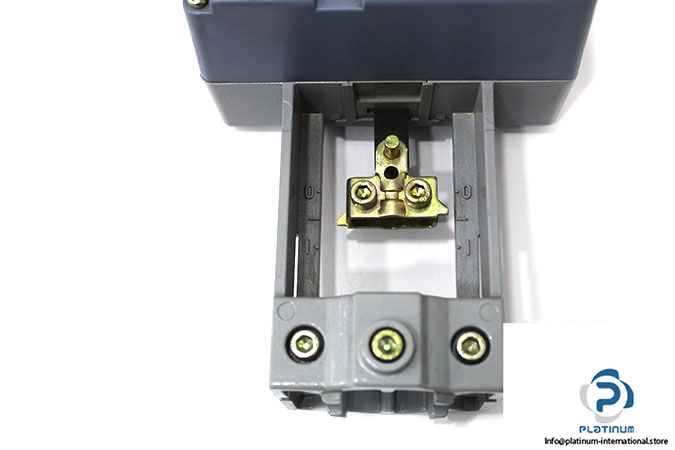

  • Actuator Housing and Console: Die-cast Aluminum
  • Housing Box and Manual Adjuster: Plastic

Uses: With 20 mm stroke for water-side control of HVAC systems, including chilled water, low-temperature hot water, and high-temperature hot water.
