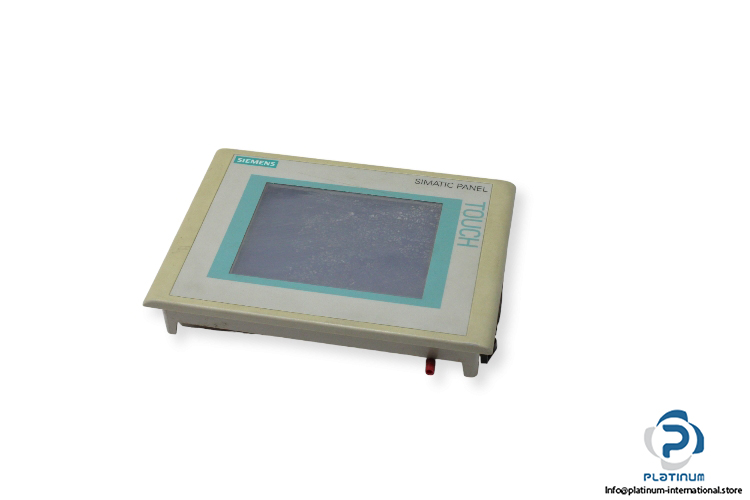

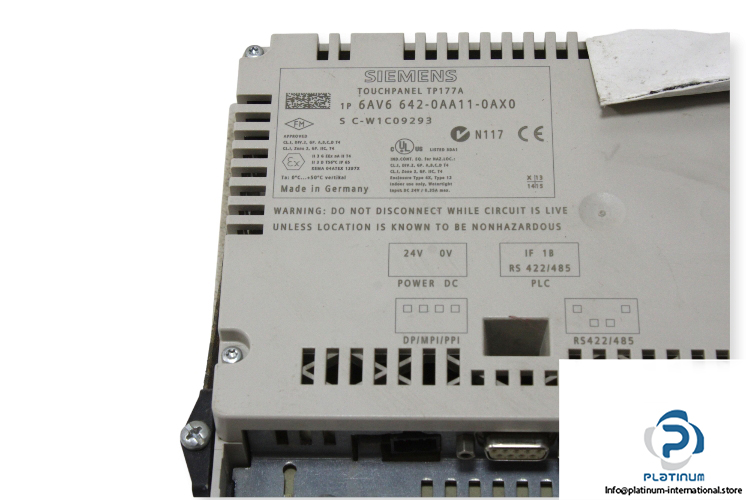

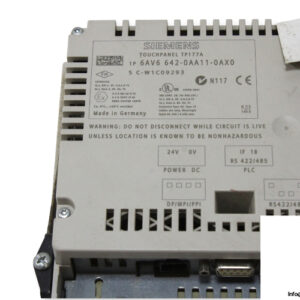

Siemens Touch Panel TP177A
Siemens Touch Panel TP177A is a reliable and robust touch panel designed for industrial environments. It offers intuitive control and monitoring capabilities, with an explosion protection feature to ensure safety in hazardous locations. Below are the key technical specifications:
- Manufacturer: Siemens
- Type: Touch Panel
- Model: TP177A
- MNR: 6AV6642-0AA11-0AX0
- Family: SIMATIC
Technical Data:
- Power Supply: 24 V DC
- Nominal Current: 0.1 A
- Interfaces: RS 422/485
- Degree of Protection: IP65 (front), IP20 (back)
- Type of Protection: Explosion protection EX
- Operating Temperature: 0 / +50 °C
- Dimensions: 212 x 156 x 45 mm
