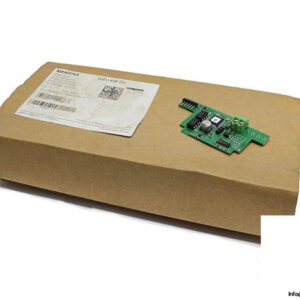

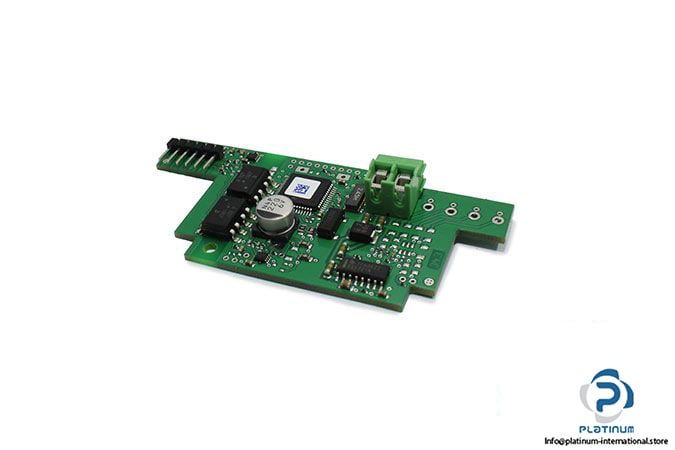

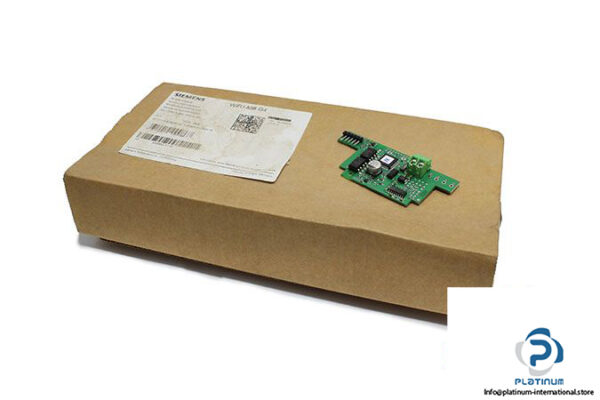

SIEMENS WZU-MB G4 M-BUS MODULE
The Siemens WZU-MB G4 is a compact and efficient M-Bus module designed for integration with generation 4 heat and heat/cooling energy meters. Engineered for precise communication, this module supports multiple baud rates and offers reliable performance in industrial and energy monitoring applications.
Manufacturer: Siemens
Type: M-Bus Module
Model: WZU-MB G4
Part No.: S55563-F110

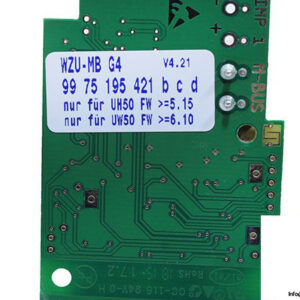

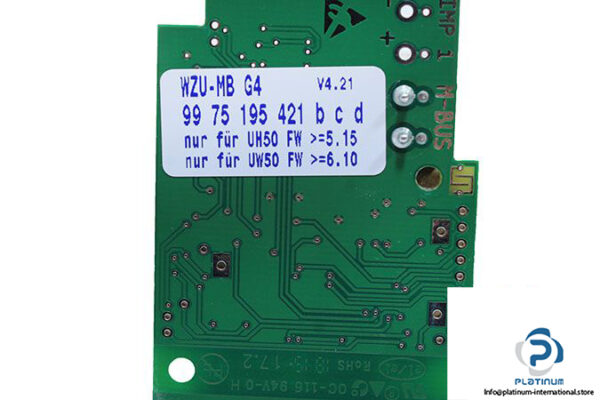

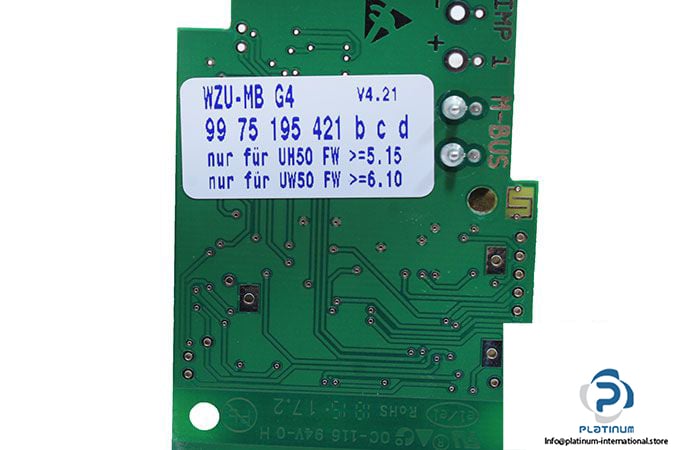

REF NO: 99 75 195 421 B C D
Used for: Heat and heat/cooling energy meters, generation 4
Technical Information
- Voltage: 50 VDC
- Current Consumption: 1 M-Bus load (1.5 mA)
- Baud Rate: 300, 1200, 2400, 4800, 9600
- Connection Capacity: Rigid or flexible, 0.25“0.75 mm²; Flexible with wire end ferrule, 0.25“0.75 mm²
- Dimensions: 85 × 37.5 × 10.5 mm
