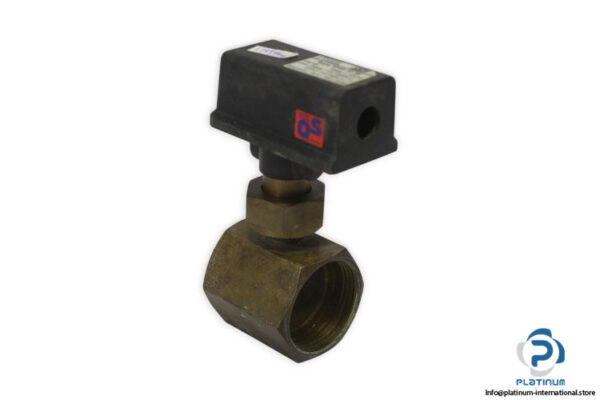

Sika VHS32M Inline Flow Switch
The Sika VHS32M Inline Flow Switch from the VHS Series is engineered for reliable flow monitoring in demanding industrial applications. Designed to handle up to 25 bar nominal pressure and a wide temperature range, it ensures dependable switching performance with precise setpoints for increasing and decreasing flow rates.
Manufacturer: Sika
Type: Inline Flow Switch
Model: VHS32M
Series: VHS

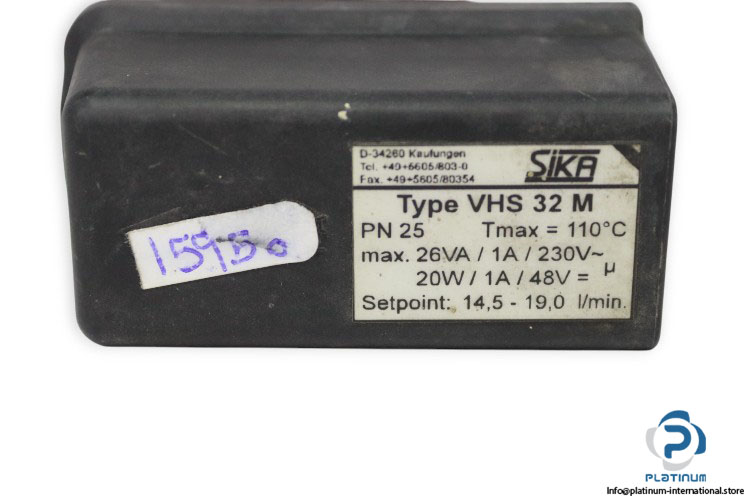

Technical Information
- Nominal Pressure: 25 bar
- Switching Function: Opens at increasing flow, closed at decreasing flow
- Medium Temperature: -25 to 110°C
- Switching Voltage: 48 V DC, 230 V AC
- Switching Current: Up to 1 A
- Max Power Rating: 20 W, 26 VA
- Increasing Flow Rate: 4.0 to 5.3 gpm (15.5 to 20.5 l/min)
- Decreasing Flow Rate Setpoint: 3.8 to 4.9 gpm (14.5 to 19.0 l/min)
- Max Flow Rate: 62.4 gpm (240 l/min)
- Connection: G1 ¼
- Nominal Size DN: 32 mm
