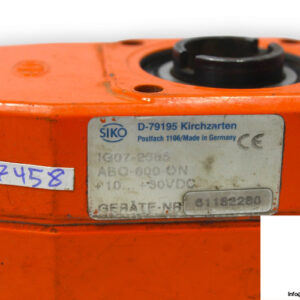

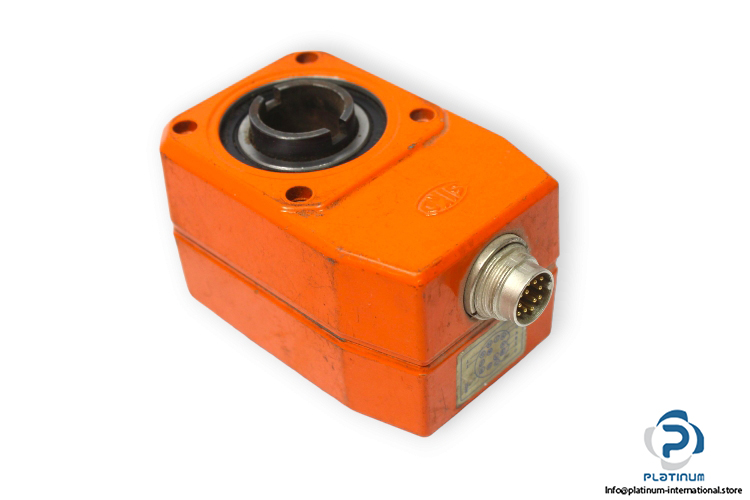

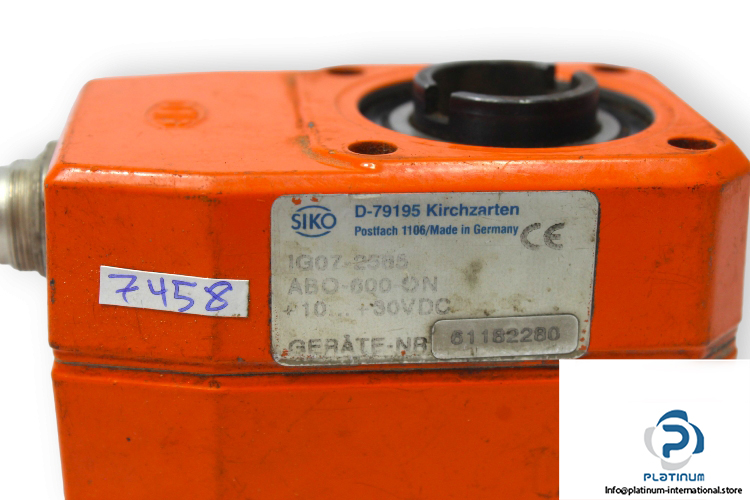

SIKO IG07-2585-ABO-600-ON Incremental Encoder

The SIKO IG07-2585-ABO-600-ON is a high-precision incremental encoder from the IG07 series, designed for accurate motion control and positioning in industrial automation systems. Featuring a robust hollow shaft design, this encoder ensures reliable performance even in demanding environments.

Key Details:

• Manufacturer: SIKO
• Type: Incremental Encoder
• Model: IG07-2585-ABO-600-ON
• Series: IG07

Technical Information:

• Operating Voltage: 10 to 30 V DC
• Current Consumption: Typical < 40 mA
• Shaft Type: Hollow shaft
• Pulses/Revolution: 600 rpm
• Shaft Diameter: 20 mm
• Shaft Material: Black-finished steel
• Housing Material: Zinc, die-cast
• Cable Sheath: PVC

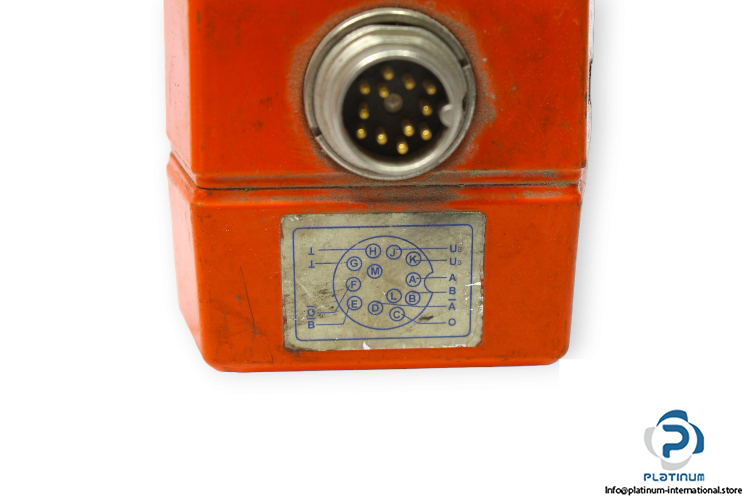

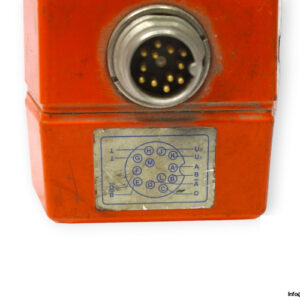

• Output Signals: ABO (Yellow, White, Green)
• Ambient Temperature: 0 to 60 °C
• Protection Category: IP64, IP65

With its durable housing and precision signal output, this incremental encoder is ideal for applications requiring high-resolution motion control and accurate rotational feedback.
