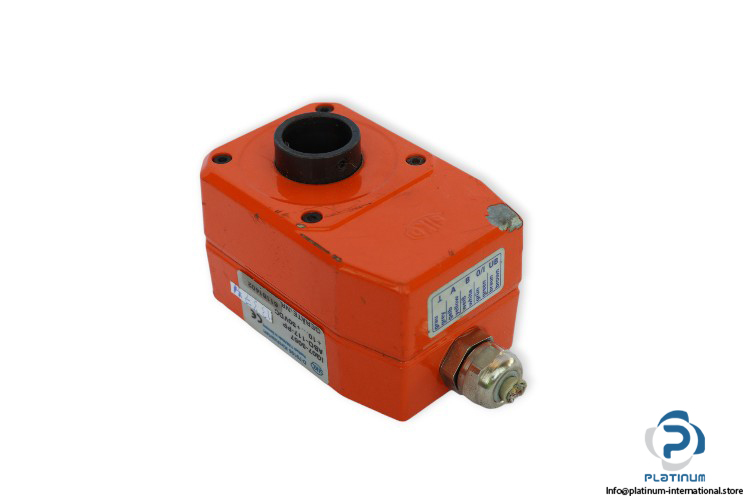

SIKO IG073057 INCREMENTAL ENCODER

The SIKO IG073057 (Alternative Model: ABO117PP) is a high-performance optical incremental encoder engineered for precision positioning and reliable signal transmission in industrial automation systems. Its rugged build and high resolution make it ideal for demanding environments.

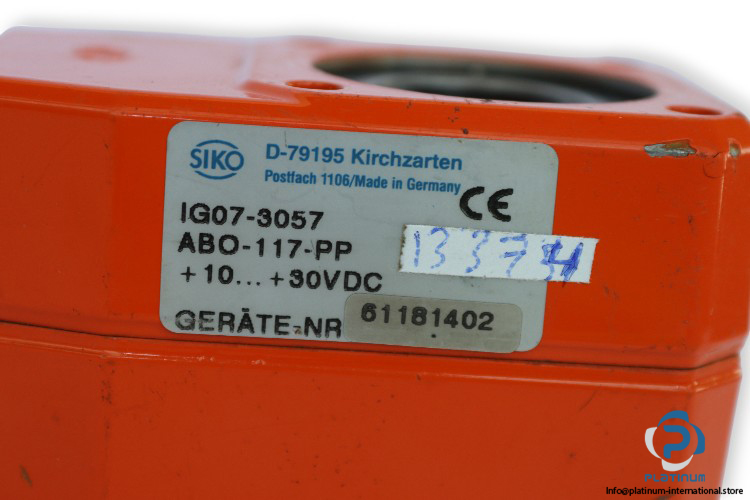

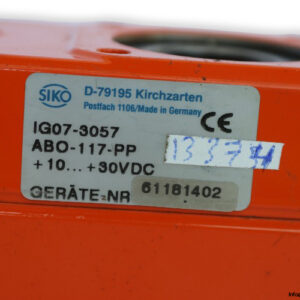

Manufacturer: SIKO
Type: Incremental Encoder
Model: IG073057
Alternative Model: ABO117PP
Part No: 61181402

Technical Information

• Measuring Mode: Optical
• Shaft Type: Hollow Shaft
• Operating Voltage: 10 / 30 V DC
• Current Consumption Max.: 40 mA
• Resolution Max.: 1024 PPR (Pulses/Revolution)
• Shaft Load Rating: 1400 N Axial / 5600 N Radial
• Shaft Diameter Max.: 20 mm
• Connection: Cable
• Material: Zinc, Die-Cast
• Protection Class: IP64 / IP65
• Operating Temperature: 0 / 60 °C
• Dimensions: 89 x 58 x 52 mm
