Manufacturer: SKF
Type: Self-Aligning Ball Bearing with Tapered bore

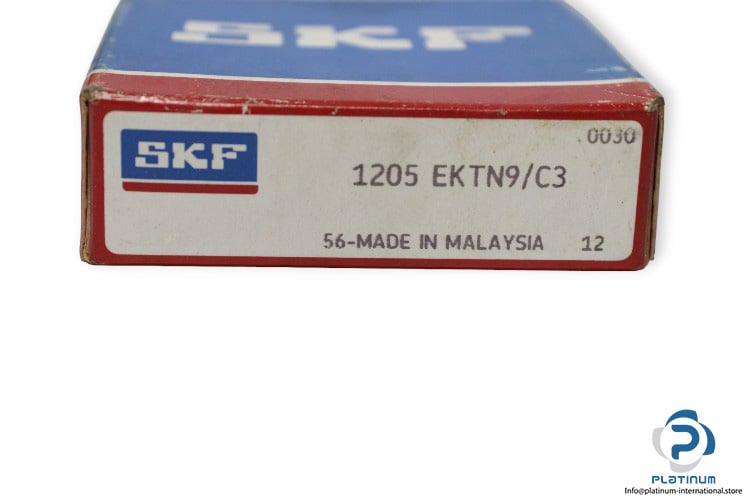

Model: 1205EKTN9/C3

Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width B: 15 mm
Dynamic load rating: 14300 N
Static load rating: 4000 N
Limiting speed: 18000 RPM
Reference speed: 28000 RPM
Bore type: Tapered 1:12
Cage: TN9, Glass fibre reinforced PA66 cage centred
Radial internal clearance: C3
