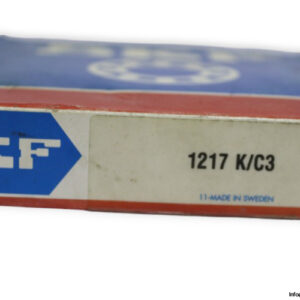

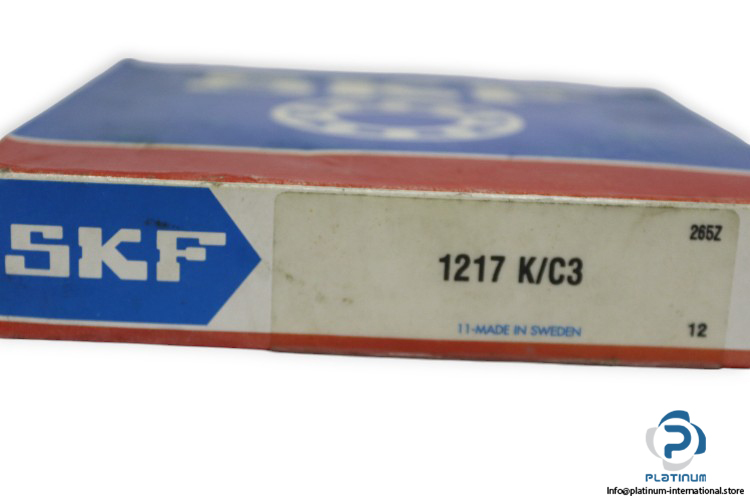

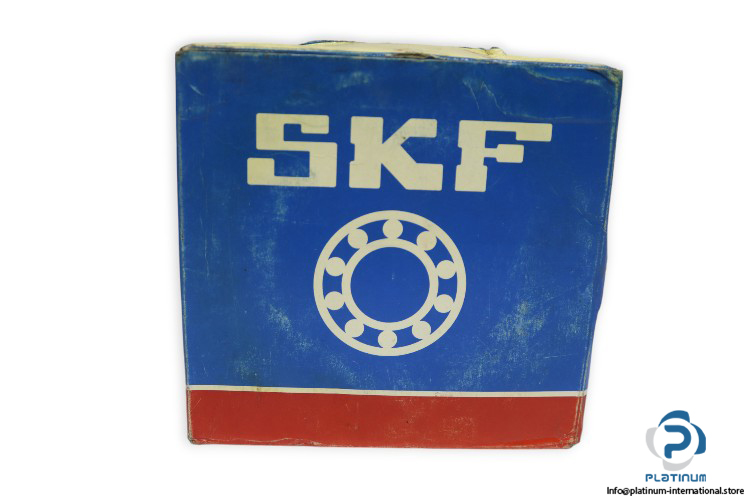

SKF 1217 K/C3 Self-Aligning Ball Bearing
The SKF 1217 K/C3 Self-Aligning Ball Bearing is engineered for applications where shaft misalignment and smooth rotation are critical. With a tapered bore design (1:12), C3 radial internal clearance, and a robust sheet metal cage, this bearing ensures high performance and durability in demanding industrial environments.
- Manufacturer: SKF
- Type: Self-Aligning Ball Bearing
- Model: 1217 K/C3
Technical Information
- Bore Diameter (d): 85 mm
- Outer Diameter (D): 150 mm
- Width (B): 28 mm
- Basic Dynamic Load Rating: 48.8 kN
- Basic Static Load Rating: 20.8 kN
- Reference Speed: 9000 r/min
- Limiting Speed: 5600 r/min
- Bore Type: K, Tapered 1:12
- Cage Material: Sheet Metal
- Radial Internal Clearance: C3
