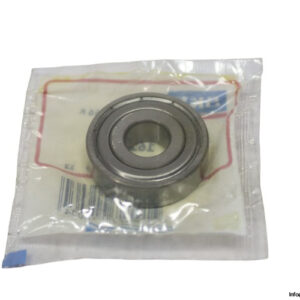

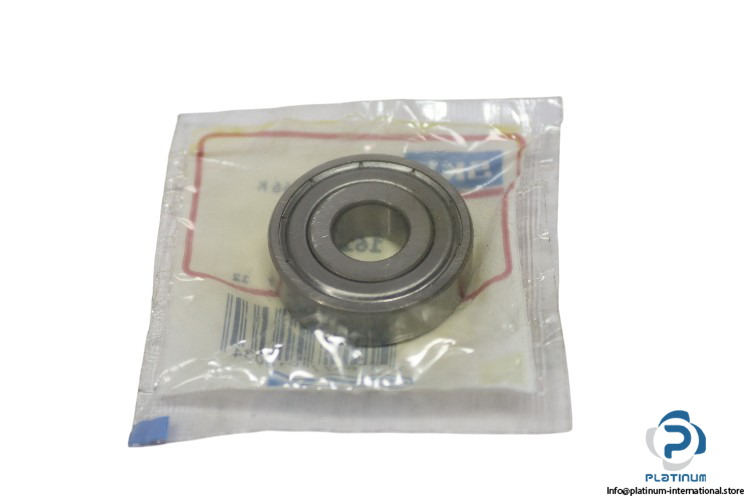

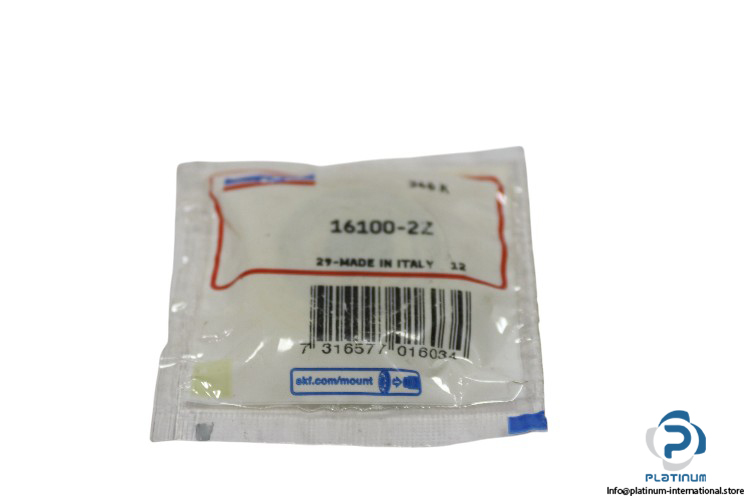

SKF 16100-2Z Deep Groove Ball Bearing
The SKF 16100-2Z is a high-quality deep groove ball bearing designed for precision, speed, and reliability. Equipped with 2Z non-contact shields on both sides, it provides effective protection against contamination and allows for high-speed operation. Ideal for light to moderate load applications in various industries.
Manufacturer: SKF
Type: Deep Groove Ball Bearing
Model: 16100-2Z
Technical Information:
- Bore Diameter (d): 10 mm
- Outer Diameter (D): 28 mm
- Width (B): 8 mm
- Dynamic Load Rating (Cr): 5.07 kN
- Static Load Rating (C0r): 2.36 kN
- Fatigue Load Limit: 0.1 kN
- Reference Speed: 60000 r/min
- Limiting Speed: 30000 r/min
- Seal Type: 2Z, Non-contact shield on both sides
- Cage Material: Sheet Metal
