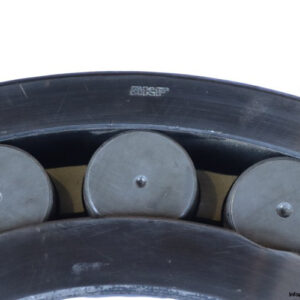

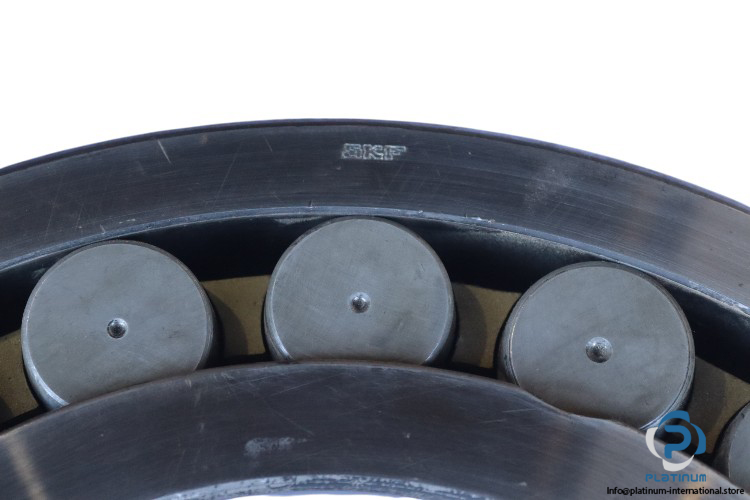

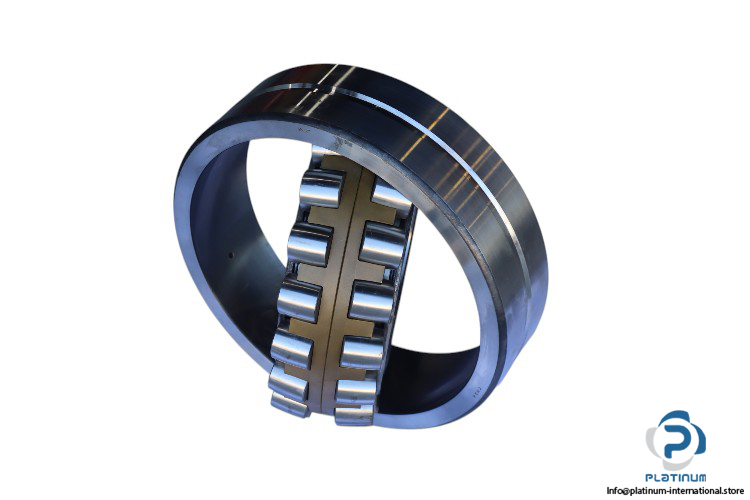

SKF 22240 CCK/W33 Spherical Roller Bearing
The SKF 22240 CCK/W33 Spherical Roller Bearing is designed to handle heavy radial and axial loads with a robust construction. With high dynamic and static load ratings, this bearing ensures reliable performance in demanding industrial applications.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 22240 CCK/W33
Technical Information:
- Design: W33, three lubrication holes (equally spaced) and a lubrication groove on the outer ring.
- Bore Diameter (d): 200 mm
- Outer Diameter (D): 360 mm
- Width: 98 mm
- Dynamic Load Rating: 1,526 kN
- Static Load Rating: 1,930 kN
- Fatigue Load Limit: 166 kN
- Limiting Speed: 2,200 RPM
- Reference Speed: 1,600 RPM
- Cage Material: Brass
