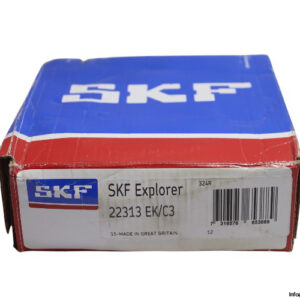

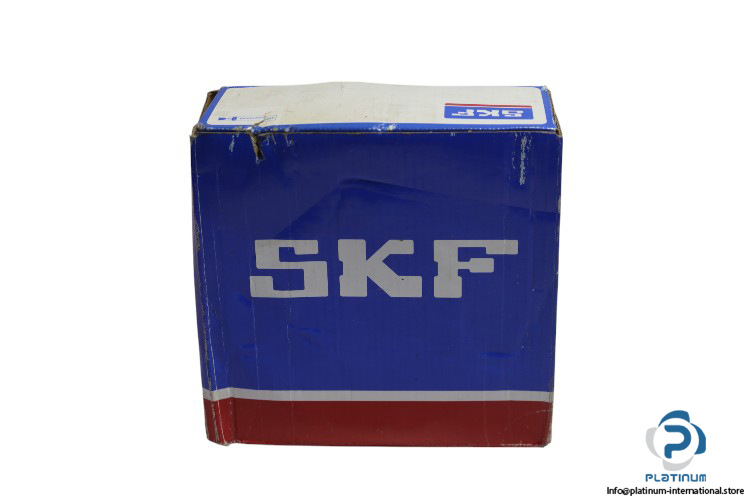

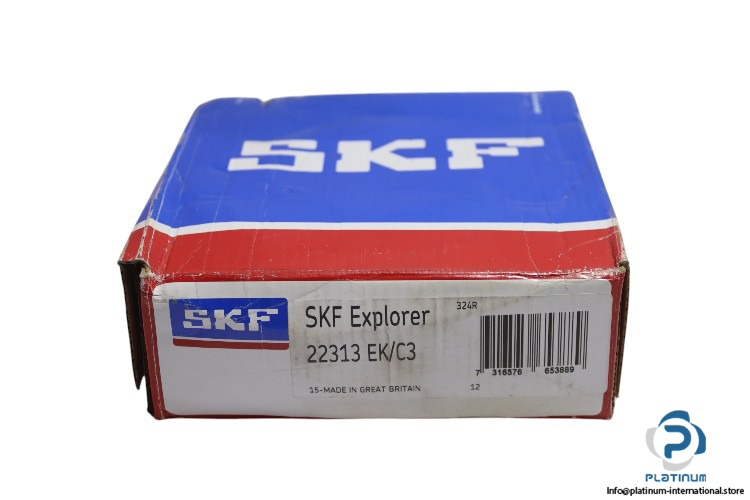

SKF 22313 EK/C3 Spherical Roller Bearing
The SKF 22313 EK/C3 Spherical Roller Bearing is engineered for high radial and axial load capacities, ensuring exceptional durability and performance in demanding industrial applications. Featuring a tapered bore, C3 clearance, and a sheet metal cage, this bearing provides enhanced speed capability and load distribution.
- Manufacturer: SKF
- Type: Spherical Roller Bearing
- Model: 22313 EK/C3
Technical Information
- Bore Diameter (d): 65 mm
- Outer Diameter (D): 140 mm
- Width (B): 48 mm
- Dynamic Load Rating: 357 kN
- Static Load Rating: 360 kN
- Limiting Speed: 5000 r/min
- Reference Speed: 3800 r/min
- Cage: Sheet Metal
- Clearance Class: C3
- Bore Type: K, Tapered 1:12
