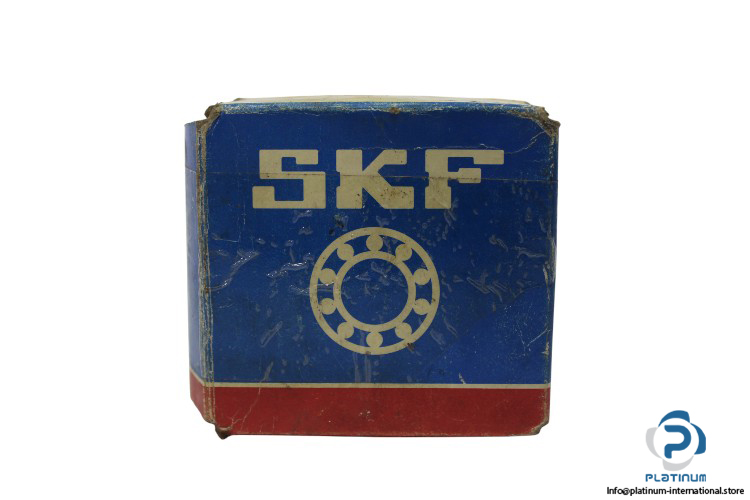

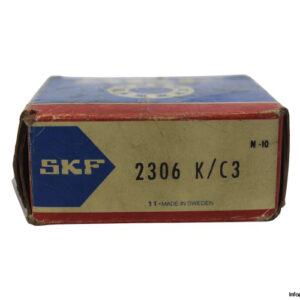

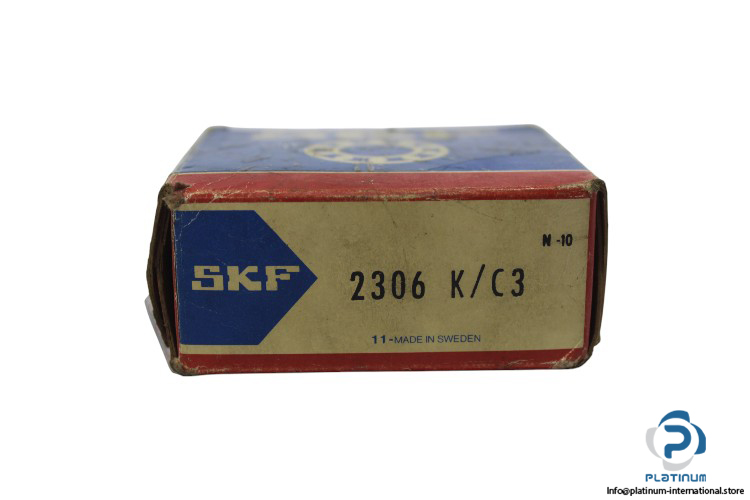

SKF 2306 K/C3 Self-Aligning Ball Bearing

The SKF 2306 K/C3 Self-Aligning Ball Bearing is engineered for applications that demand high-speed performance and excellent alignment compensation. Featuring a tapered bore (1:12), sheet metal cage, and C3 internal clearance, this bearing handles misalignment and loads efficiently in various industrial environments.

Manufacturer: SKF

Type: Self-Aligning Ball Bearing

Model: 2306 K/C3

Technical Information:

• Bore Diameter (d): 30 mm
• Outer Diameter (D): 72 mm
• Width (B): 27 mm
• Dynamic Load Rating (Cr): 31.2 kN
• Static Load Rating (C0r): 8.8 kN
• Limiting Speed: 13,000 r/min
• Reference Speed: 18,000 r/min
• Bore Type: K, Tapered Bore 1:12
• Cage: Sheet Metal
• Clearance: C3
