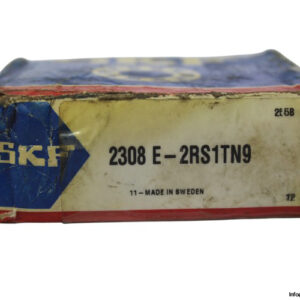

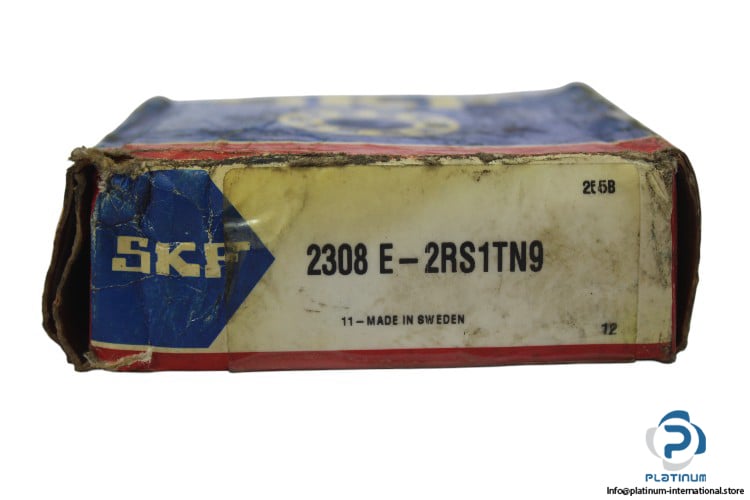

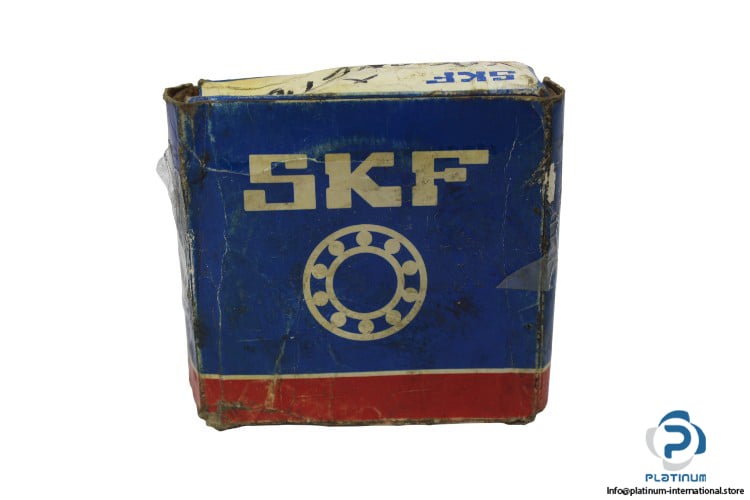

SKF 2308 E-2RS1TN9 Self-Aligning Ball Bearing
The SKF 2308 E-2RS1TN9 is a high-quality self-aligning ball bearing engineered to accommodate shaft misalignment while maintaining excellent performance in high-speed and high-load applications. Featuring 2RS1 double-sided sealing and a TN9 nylon glass fibre reinforced cage, it ensures durability, low friction, and extended service life.
Manufacturer: SKF
Type: Self-Aligning Ball Bearing
Model: 2308 E-2RS1TN9
Technical Information:
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 90 mm
- Width (B): 33 mm
- Dynamic Load Rating (Cr): 33.8 kN
- Static Load Rating (C0r): 11.2 kN
- Fatigue Load Limit: 0.57 kN
- Limiting Speed: 4800 rpm
- Reference Speed: 13000 rpm
- Sealing: 2RS1 (Seal on both sides)
- Cage Type: TN9 (Nylon glass fibre filled cage)
