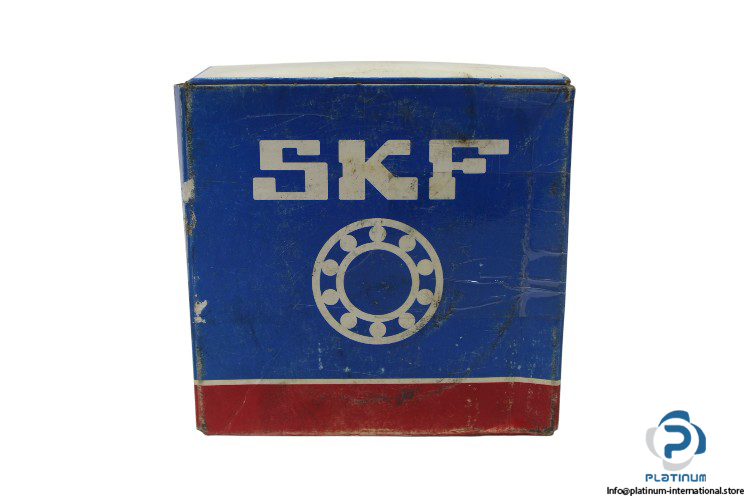

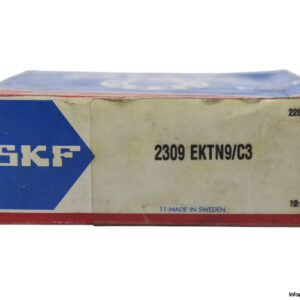

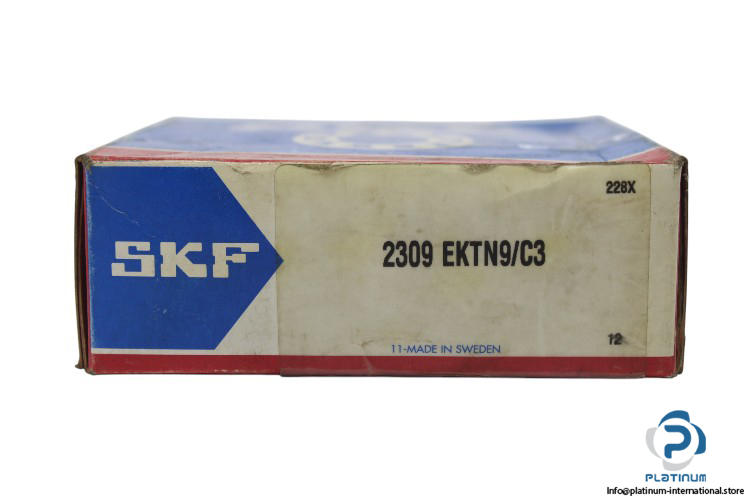

SKF 2309 EKTN9/C3 Self-Aligning Ball Bearing
The SKF 2309 EKTN9/C3 Self-Aligning Ball Bearing is designed to accommodate misalignment, reduce friction, and deliver smooth rotation under demanding conditions. Featuring a tapered bore and glass fibre reinforced nylon cage (TN9), this bearing is ideal for applications with high speeds and moderate loads.
Manufacturer: SKF
Type: Self-Aligning Ball Bearing
Model: 2309 EKTN9/C3
Technical Information:
- Bore Diameter (d): 45 mm
- Outer Diameter (D): 100 mm
- Width: 36 mm
- Dynamic Load Rating: 63.7 kN
- Static Load Rating: 19.3 kN
- Limiting Speed: 13000 RPM
- Reference Speed: 9000 RPM
- Radial Internal Clearance: C3
- Bore Type: K (Tapered 1:12)
- Cage Type: TN9 (Glass fibre reinforced nylon)
