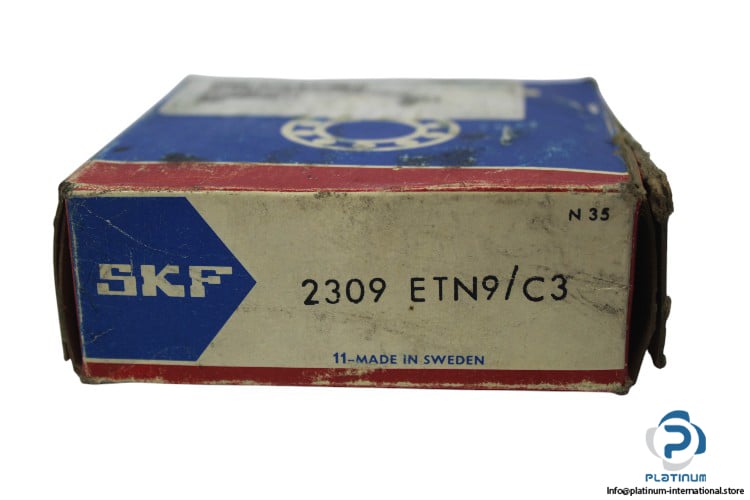

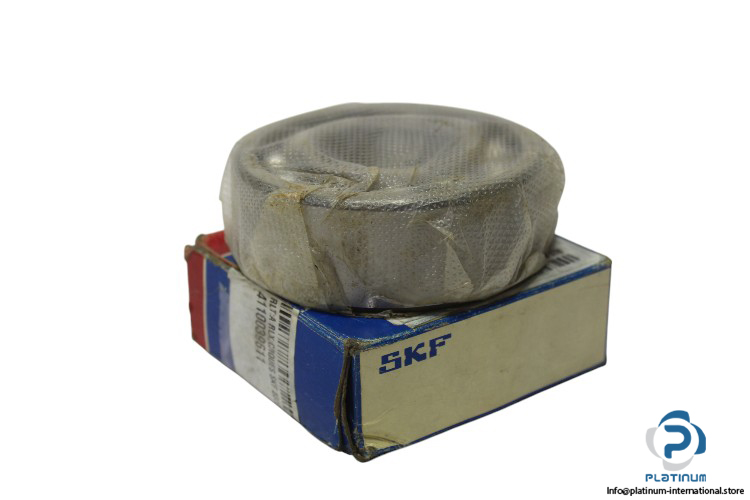

SKF 2309 ETN9/C3 Self-Aligning Ball Bearing

The SKF 2309 ETN9/C3 Self-Aligning Ball Bearing is designed for applications with potential shaft misalignment and dynamic loads. It features a nylon glass fibre reinforced TN9 cage and C3 radial clearance, ensuring smooth and stable operation at high speeds.

Manufacturer: SKF

Type: Self-Aligning Ball Bearing

Model: 2309 ETN9/C3

Technical Information:

• Bore Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Width: 36 mm
• Dynamic Load Rating: 63.7 kN
• Static Load Rating: 19.3 kN
• Limiting Speed: 13000 RPM
• Reference Speed: 9000 RPM
• Radial Internal Clearance: C3
• Cage Type: TN9, Nylon Glass Fibre Filled Cage
