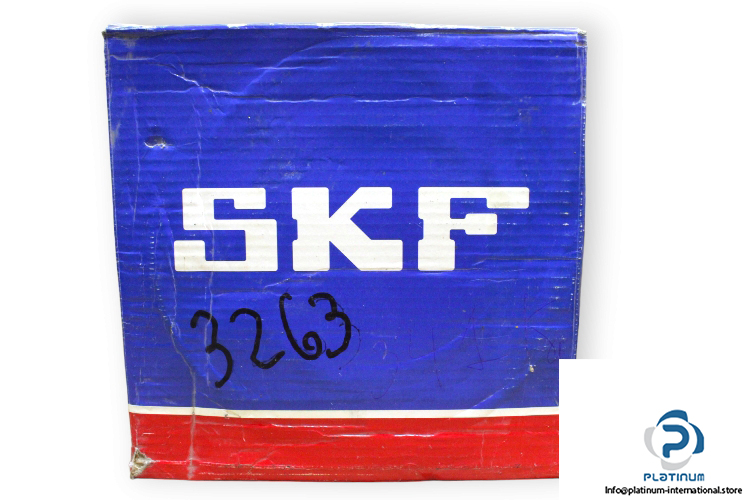

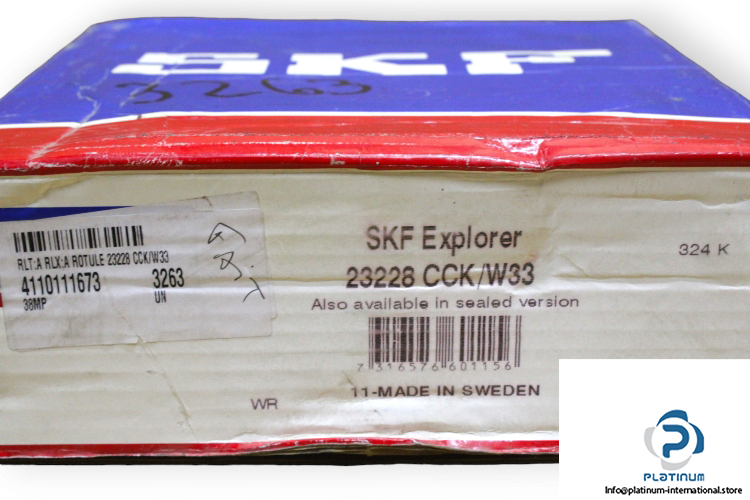

SKF 23228 CCK/W33 SPHERICAL ROLLER BEARING

The SKF 23228 CCK/W33 Spherical Roller Bearing is designed for heavy-duty applications requiring durability, high load capacity, and precise performance. With a tapered bore and annular groove lubrication system, it offers enhanced reliability and extended service life in demanding environments.

Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 23228 CCK/W33

Technical Information

• Bore Diameter (d): 140 mm
• Outer Diameter (D): 250 mm
• Width (B): 88 mm
• Basic Load Ratings, Radial – Dynamic (Cr): 962000 N
• Basic Load Ratings, Radial – Static (C0r): 1250000 N
• Fatigue Load Limit: 120000 N
• Limiting Speed: 2400 rpm
• Reference Speed: 1700 rpm
• Bore Type: K (Tapered 1:12)
• Lubrication: W33 (Annular groove and three lubrication holes in outer ring)
• Cage: Sheet metal
