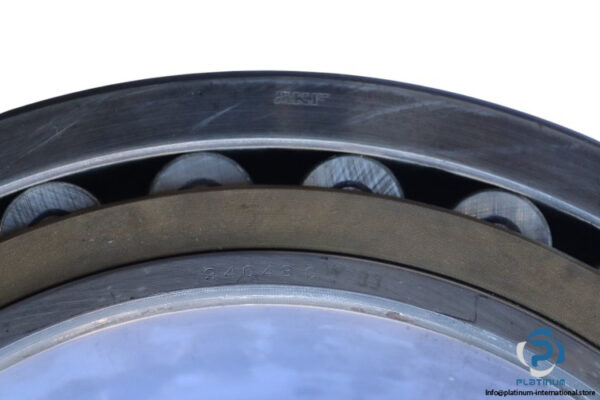

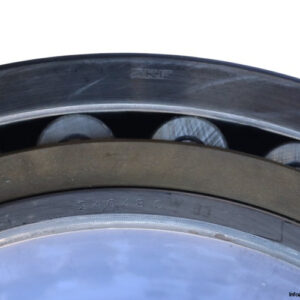

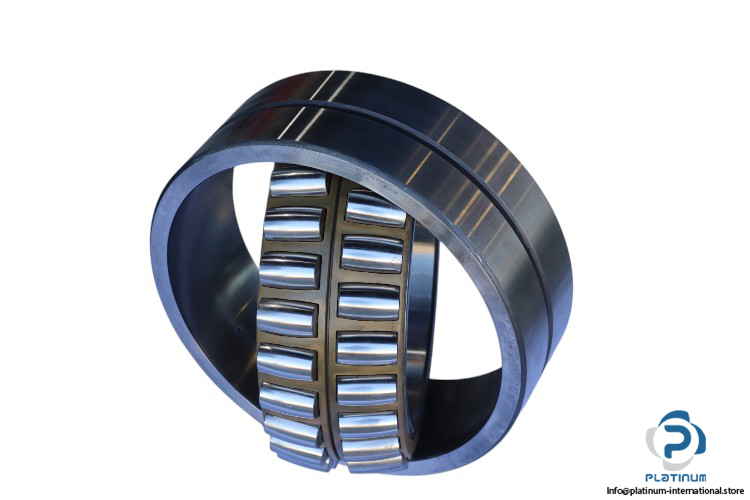

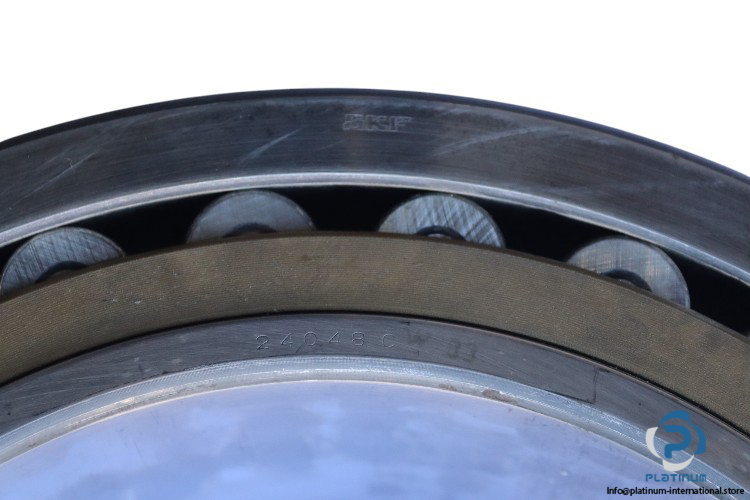

SKF 24048 CW33 Spherical Roller Bearing
The SKF 24048 CW33 Spherical Roller Bearing is designed to support heavy radial and axial loads. Its robust design and high load ratings make it ideal for demanding industrial applications.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 24048 CW33
Technical Information:
- Design: W33, three lubrication holes (equally spaced) and a lubrication groove on the outer ring
- Bore Diameter (d): 240 mm
- Outer Diameter (D): 360 mm
- Width: 118 mm
- Dynamic Load Rating: 1,663 kN
- Static Load Rating: 2,700 kN
- Fatigue Load Limit: 228 kN
- Limiting Speed: 1600 RPM
- Reference Speed: 1100 RPM
- Cage Material: Brass
