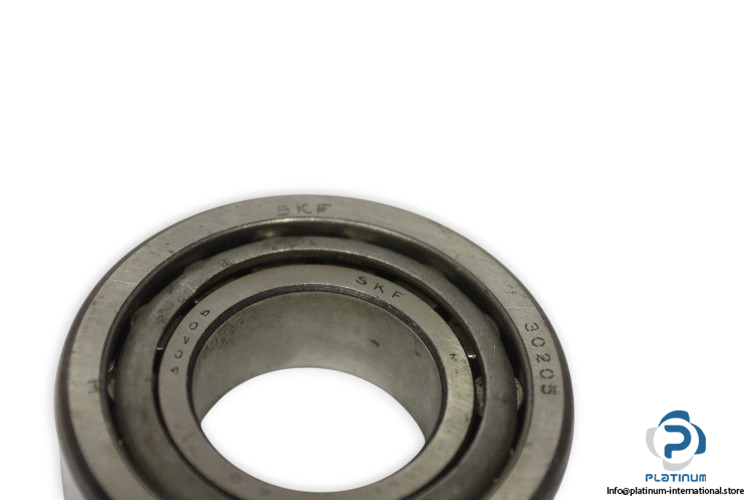

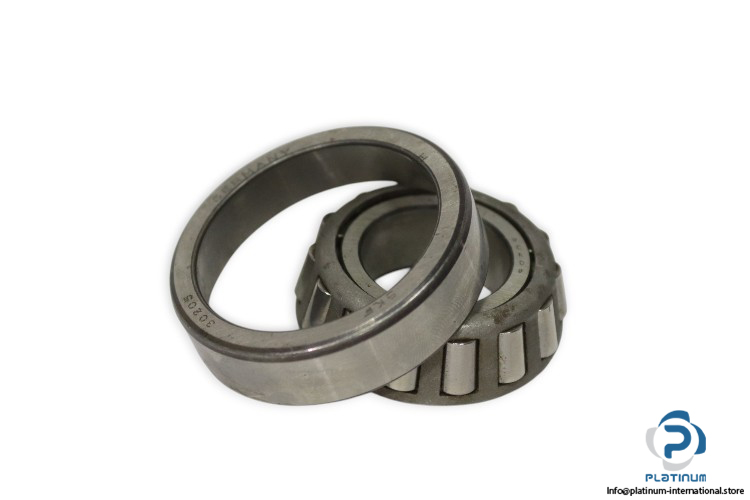

SKF 30205 Single Row Tapered Roller Bearing
The SKF 30205 is a precision-engineered single row tapered roller bearing designed for high performance and durability in industrial and mechanical applications.
Manufacturer: SKF
Type: Single Row Tapered Roller Bearing
Model: 30205
Technical Information
- Bore Diameter: 25 mm
- Outside Diameter: 52 mm
- Width, Total: 16.25 mm
- Width, Inner Ring: 15 mm
- Width, Outer Ring: 13 mm
- Contact Angle: 14.036°
- Basic Dynamic Load Rating: 38.1 kN
- Basic Static Load Rating: 33.5 kN
- Reference Speed: 11000 r/min
- Limiting Speed: 13000 r/min
- Cage: Sheet Metal
- Bore Type: Cylindrical
