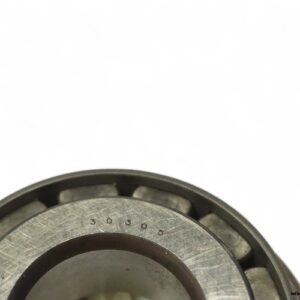

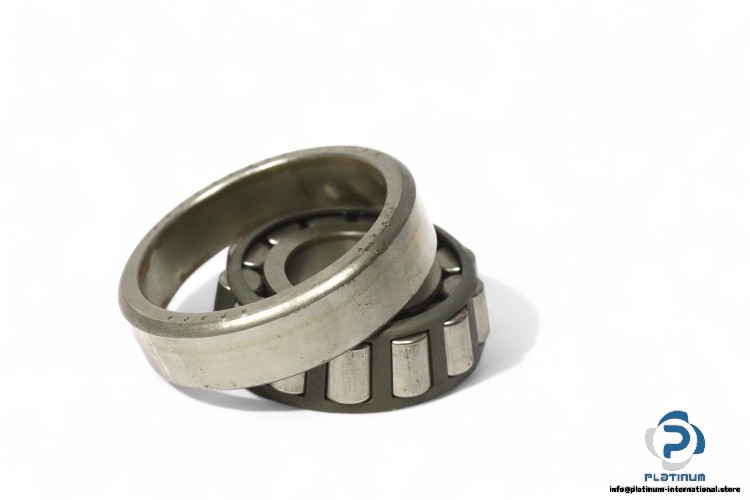

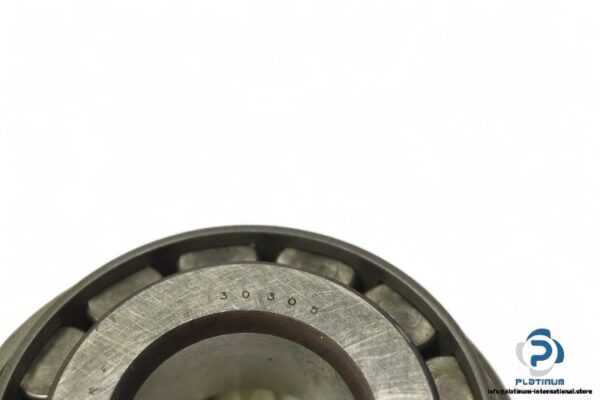

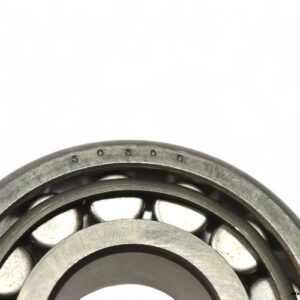

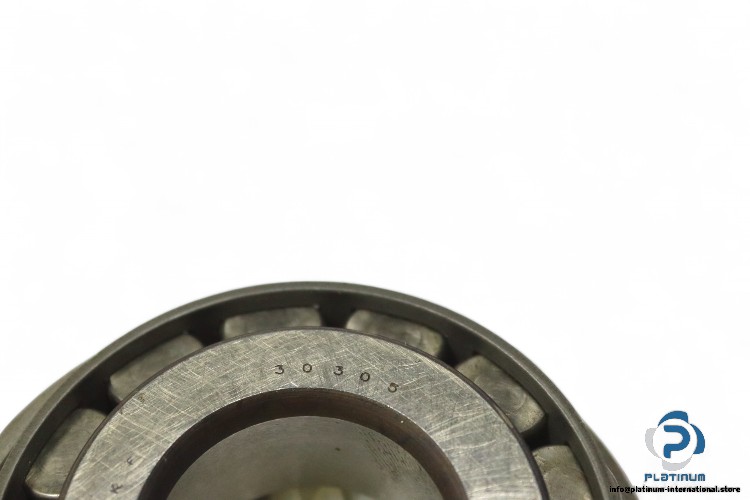

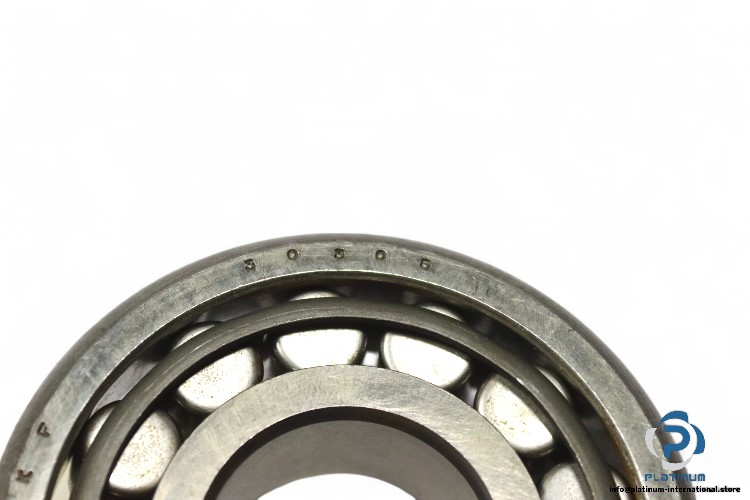

SKF 30305 Single Row Tapered Roller Bearing
The SKF 30305 Single Row Tapered Roller Bearing is designed for handling both radial and axial loads in demanding industrial applications. It is built with high dynamic load ratings, high-speed capabilities, and robust performance under heavy loads.
Manufacturer: SKF
Type: SINGLE ROW TAPERED ROLLER BEARING
Model: 30305
Technical Information:
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 62 mm
- Total Width (T): 18.25 mm
- Width of Outer Ring: 15 mm
- Width of Inner Ring: 17 mm
- Contact Angle: 11.31°
- Dynamic Load Rating: 55.3 kN
- Static Load Rating: 43 kN
- Reference Speed: 9500 r/min
- Limiting Speed: 12000 r/min
- Fatigue Load Limit: 4.75 kN
This SKF tapered roller bearing is optimized for stable and reliable performance in applications requiring both radial and axial load handling under high-speed and high-load conditions.
