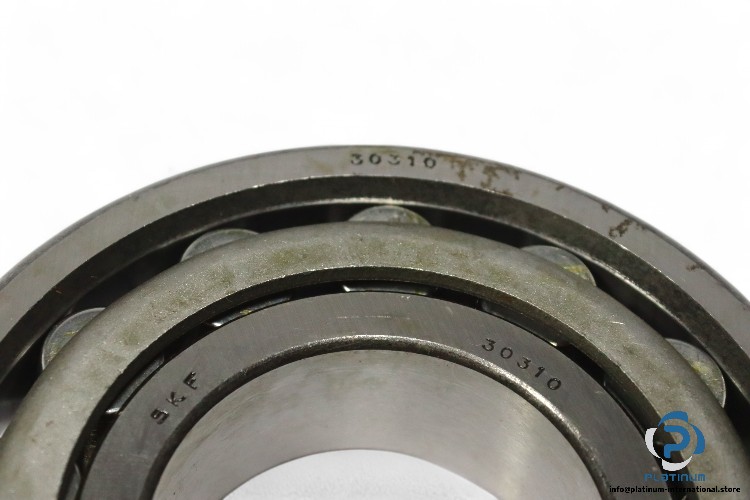

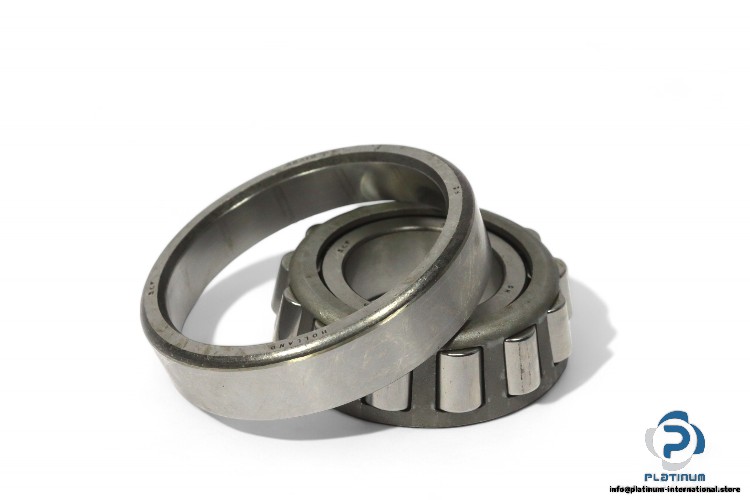

SKF 30310 Single Row Tapered Roller Bearing
The SKF 30310 Single Row Tapered Roller Bearing is designed for handling high radial and axial loads in both directions. With a contact angle of 12.953° and excellent dynamic and static load ratings, it is perfect for applications requiring high performance and reliability.
Manufacturer: SKF
Type: SINGLE ROW TAPERED ROLLER BEARING
Model: 30310
Technical Information:
- Bore Diameter (d): 50 mm
- Outer Diameter (D): 110 mm
- Total Width (T): 29.25 mm
- Width of Outer Ring: 23 mm
- Width of Inner Ring: 27 mm
- Contact Angle: 12.953°
- Dynamic Load Rating: 154 kN
- Static Load Rating: 140 kN
- Reference Speed: 5300 r/min
- Limiting Speed: 6300 r/min
- Fatigue Load Limit: 16.6 kN
This SKF tapered roller bearing is ideal for high-speed and high-load applications, offering superior performance and long service life even in demanding conditions.
