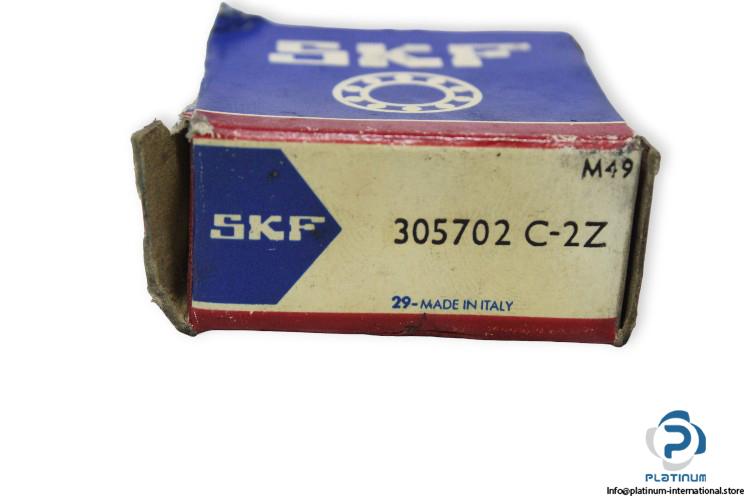

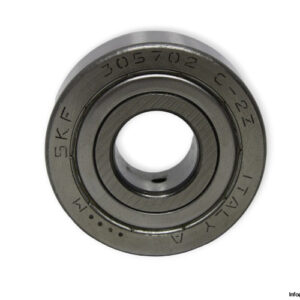

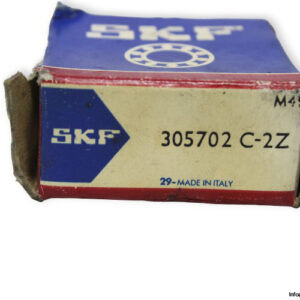

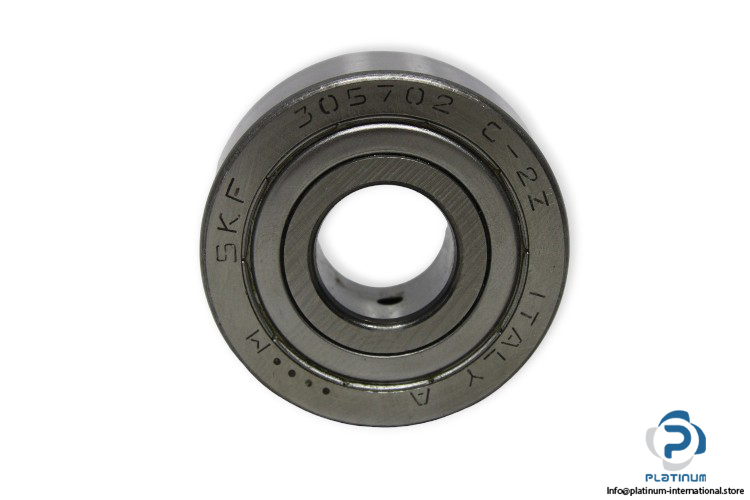

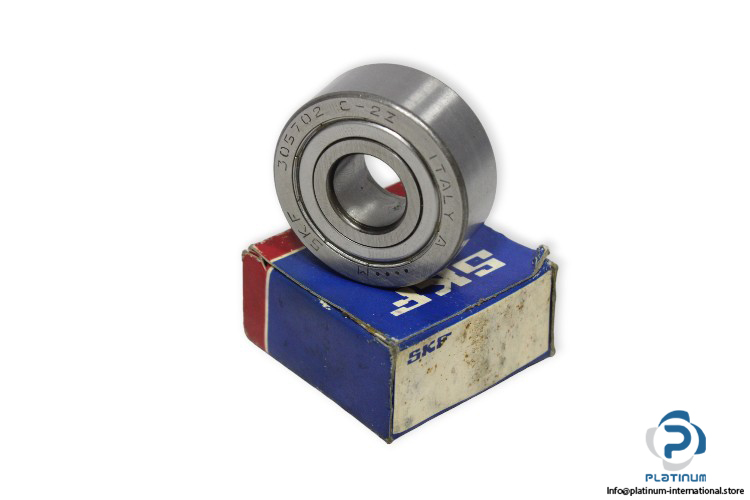

SKF 305702C-2Z Cam Roller

The SKF 305702C-2Z is a high-performance cam roller (yoke-type track roller) featuring a flat outside surface, integrated sealing, and relubrication capability. Designed to handle heavy radial loads and reduce friction, this bearing ensures long-lasting operation in linear motion and track-type systems.

Manufacturer: SKF

Type: Cam Roller (Yoke-Type Track Roller) with Flat Outside Surface, Integral Sealing and Relubrication Feature

Model: 305702C-2Z

Technical Information:

• Bore Diameter (d): 15 mm
• Outer Diameter (D): 40 mm
• Width (B): 15.9 mm
• Dynamic Load Rating: 10800 N
• Static Load Rating: 5700 N
• Fatigue Load Limit: 240 N
• Limiting Speed: 1300 rpm
• Sealing: 2Z “ Non-contact Shield on Both Sides
