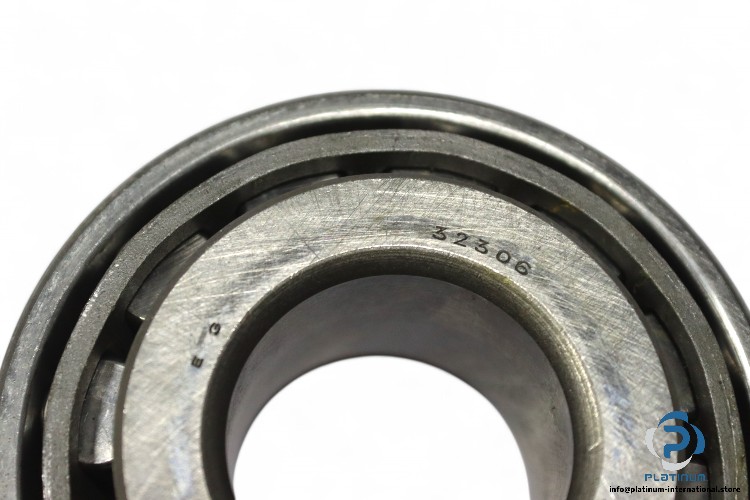

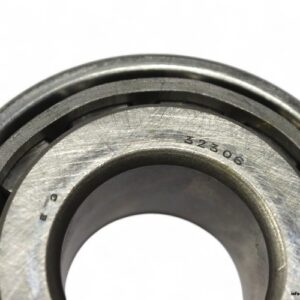

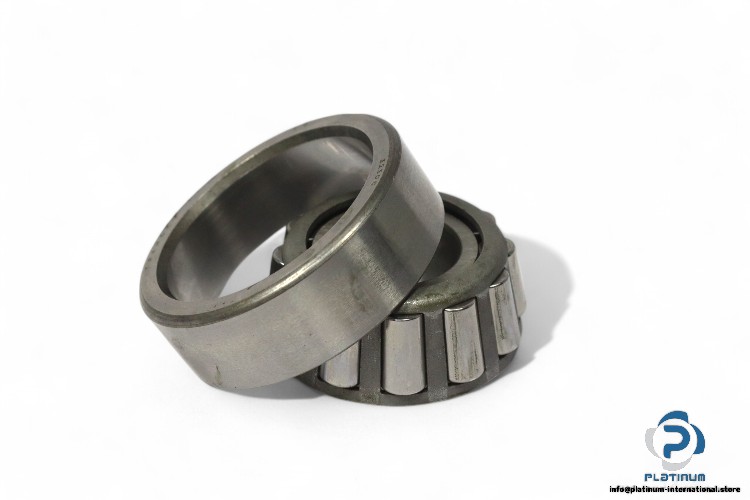

SKF 32306 Single Row Tapered Roller Bearing

The SKF 32306 Single Row Tapered Roller Bearing is designed to handle both radial and axial loads with precision. With a dynamic load rating of 95 kN and a high-speed capability, this bearing is ideal for demanding applications requiring long-lasting reliability.

Manufacturer: SKF

Type: SINGLE ROW TAPERED ROLLER BEARING

Model: 32306

Technical Information:

• Bore Diameter (d): 30 mm
• Outer Diameter (D): 72 mm
• Total Width (T): 28.75 mm
• Width, Outer Ring: 23 mm
• Width, Inner Ring: 27 mm
• Contact Angle: 11.86°
• Dynamic Load Rating: 95 kN
• Static Load Rating: 85 kN
• Reference Speed: 7500 r/min
• Limiting Speed: 10000 r/min
• Fatigue Load Limit: 9.65 kN

This SKF tapered roller bearing is built for high-performance applications where radial and axial loads are prevalent, offering superior load capacity and long-lasting durability under varying speeds.
