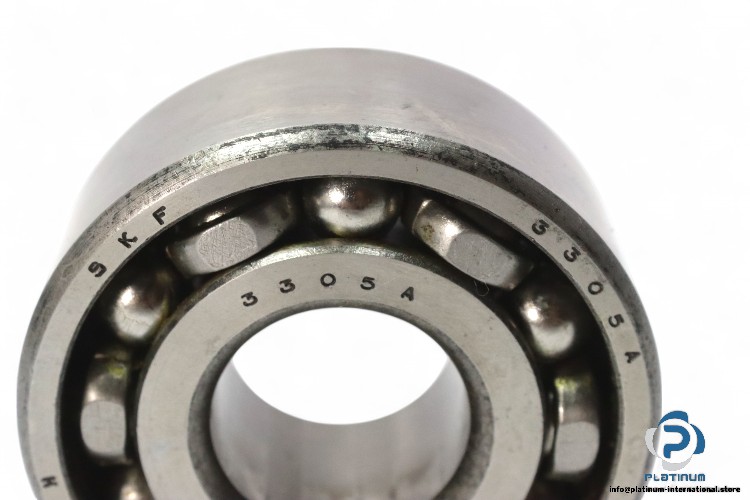

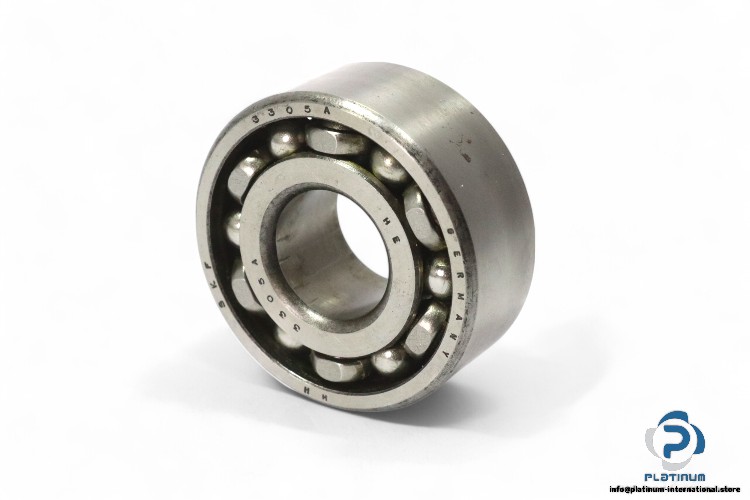

SKF 3305 A Double Row Angular Contact Ball Bearing
The SKF 3305 A Double Row Angular Contact Ball Bearing is designed for applications requiring high radial and axial load capacity. With a 30° contact angle and precision engineering, this bearing ensures stability, durability, and optimal performance in demanding industrial environments.
- Manufacturer: SKF
- Type: Double Row Angular Contact Ball Bearing
- Model: 3305 A
Technical Information
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 62 mm
- Width (B): 25.4 mm
- Contact Angle: 30°
- Basic Load Ratings:
- Dynamic (Cr): 32.5 kN
- Static (C0r): 22 kN
- Fatigue Load Limit: 0.93 kN
- Limiting Speed: 11,000 r/min
- Reference Speed: 11,000 r/min
