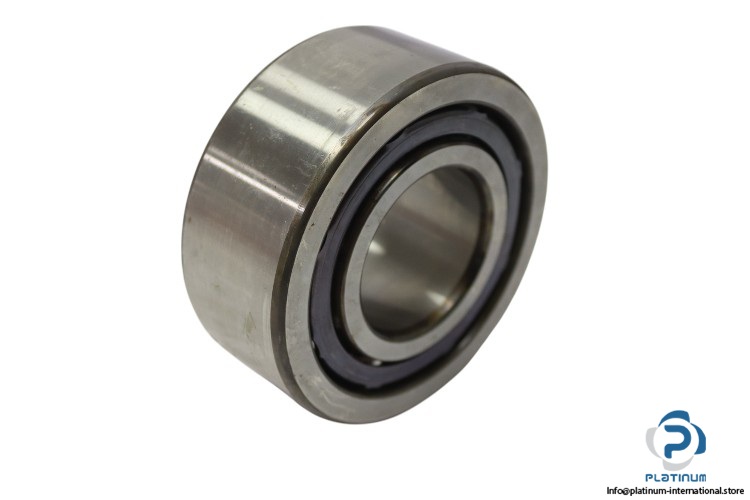

SKF 3310 A DOUBLE ROW ANGULAR CONTACT BALL BEARING

Engineered for high-performance applications, the SKF 3310 A is a double row angular contact ball bearing designed to accommodate combined radial and axial loads. With its durable sheet metal cage and a 30° contact angle, this bearing ensures stability and smooth operation in demanding environments.

Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3310 A

Technical Information

• Bore Diameter (d): 50 mm
• Outer Diameter (D): 110 mm
• Width (B): 44.4 mm
• Contact Angle: 30°
• Dynamic Load Rating (Cr): 95000 N
• Static Load Rating (C‚r): 69500 N
• Fatigue Load Limit: 3000 N
• Limiting Speed: 6000 rpm
• Reference Speed: 6000 rpm
• Cage Material: Sheet Metal
