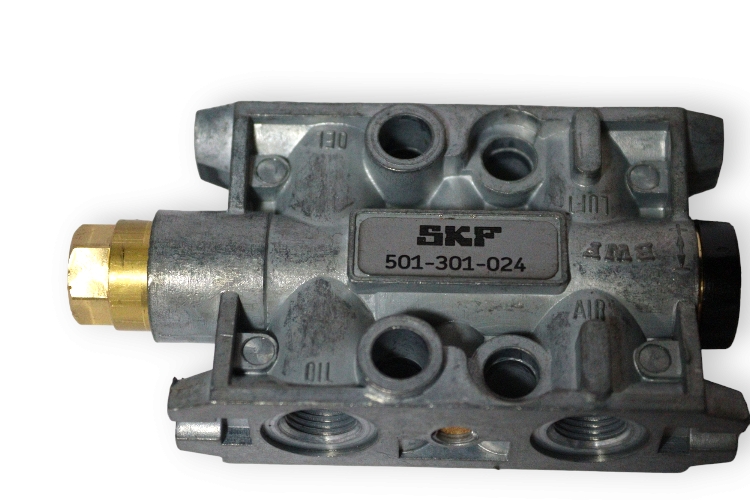

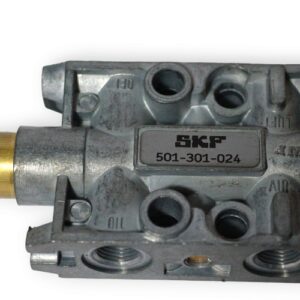

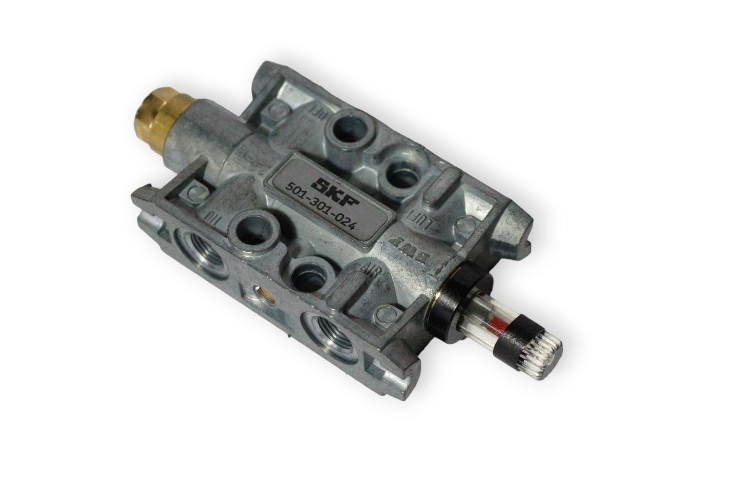

Manufacturer: SKF
Type: Injection oiler
Part No.: 501-301-024
Lubricant: Oil
Operating viscosity: 10-1100 mm²/s
Actuating air pressure: 3-10 bar
Operating temperature: -10 to +80 °C
Max. perm. flow rate at 6 bar: 200 l/min
Mounting position: oil duct vertical
For Tube Diameter: 4 mm
Port size: G1/8
