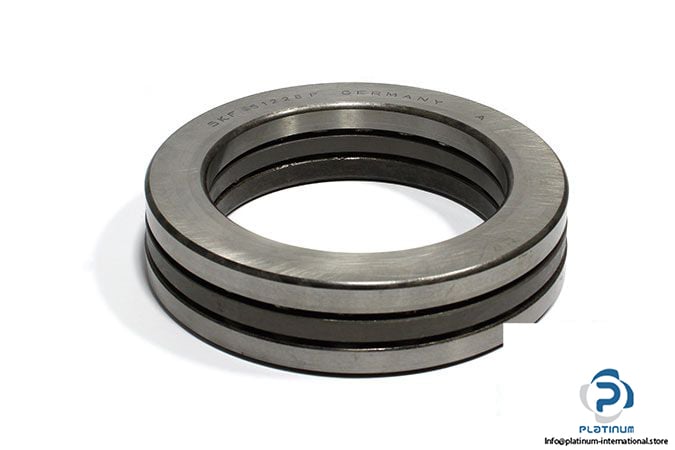

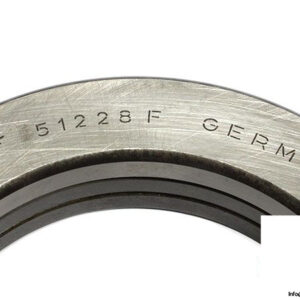

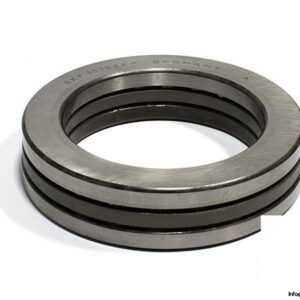

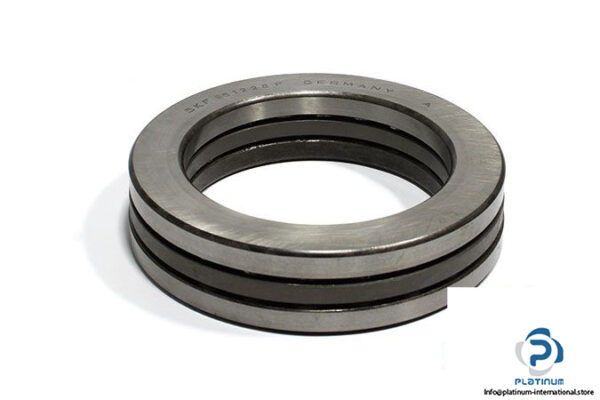

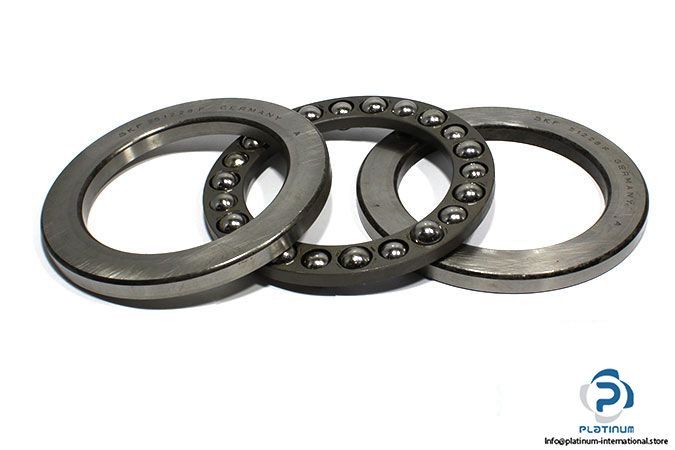

Manufacturer: SKF

Type: Thrust ball bearings single direction

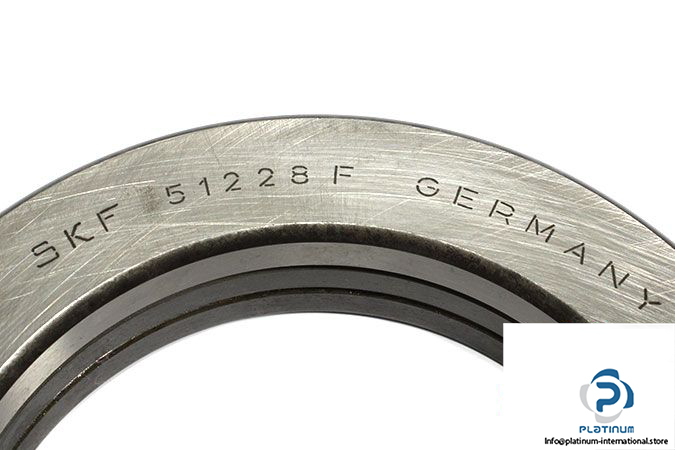

Model: 51228F

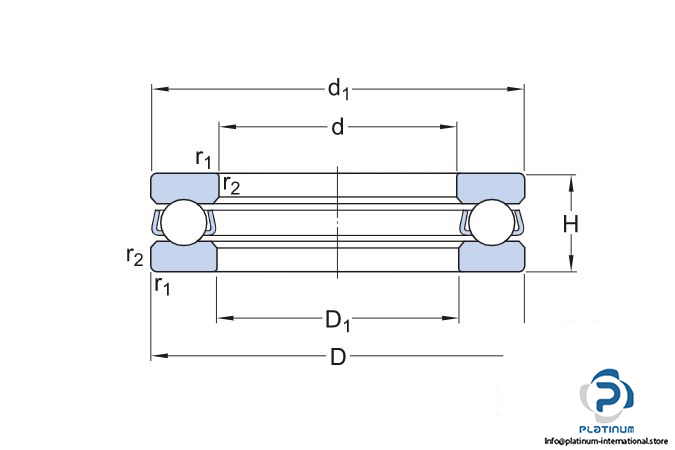

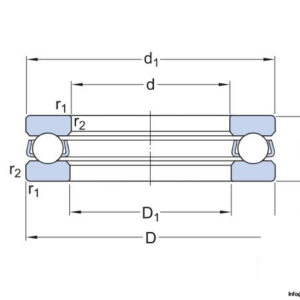

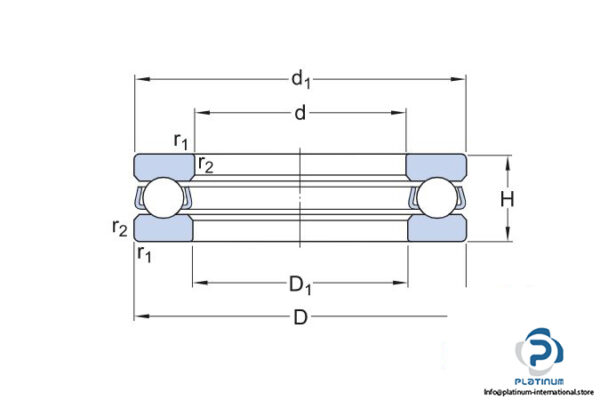

Dimensions

Bore diameter d: 140 mm

Outer diameter D: 200 mm

Height H: 46 mm

Outside diameter shaft washer d₁: 197 mm

Inner diameter housing washer D₁: 143 mm

Minimum chamfer dimension r_1,2: 1 mm

Basic load ratings:

Dynamic C: 208 kN

Static C₀: 630 kN

Fatigue load rating P_u: 18 kN

Reference speed: 1400 rpm

Limiting speed: 1900 rpm

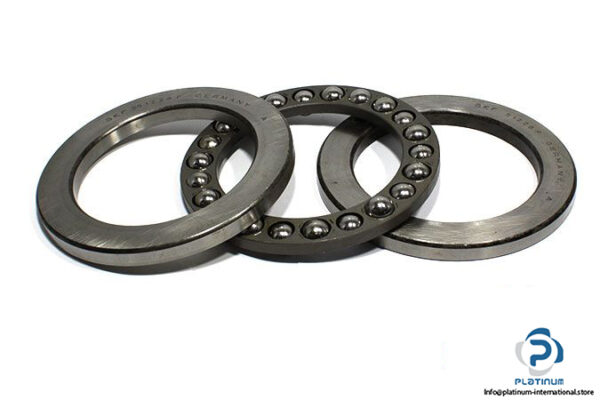

Cage: F, Machined steel cage

Weight: 4.65 kg
