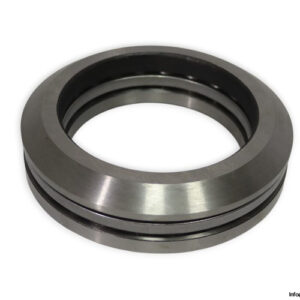

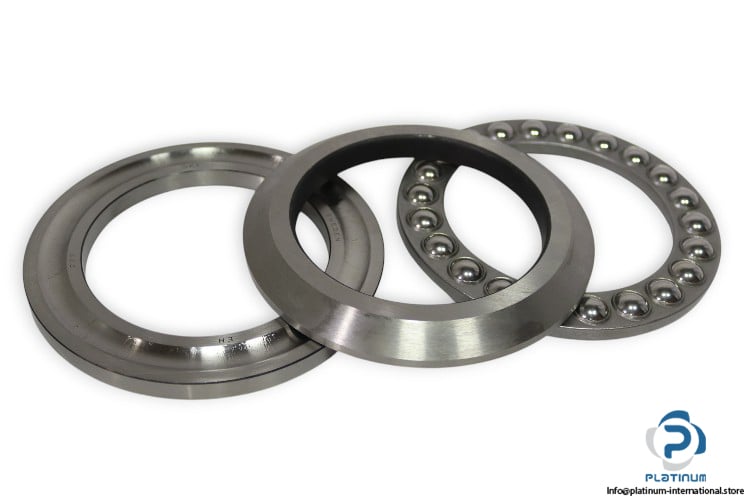

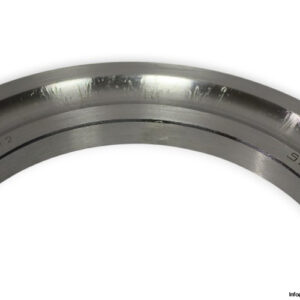

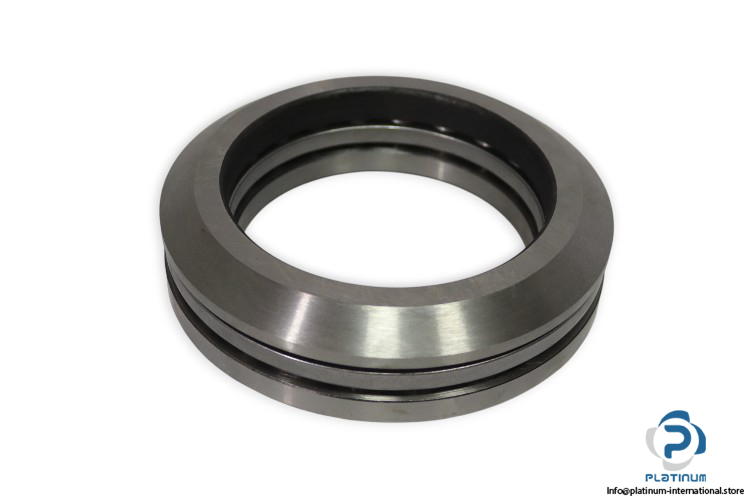

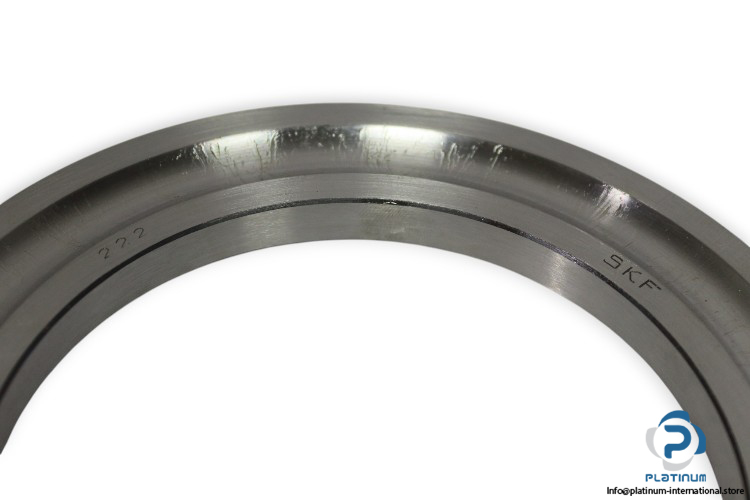

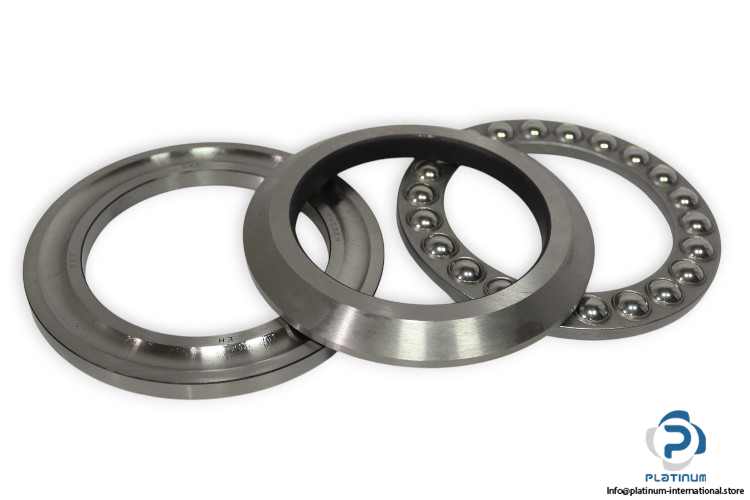

SKF 53222 Single Direction Thrust Ball Bearing
The SKF 53222 is a precision-engineered single direction thrust ball bearing designed to support high axial loads in one direction. It is ideal for applications requiring accurate alignment and smooth rotational performance under heavy thrust forces. Built with a durable sheet metal cage and precision-ground washers, this bearing ensures long-lasting reliability and stable operation even at high speeds.
- Manufacturer: SKF
- Type: Single Direction Thrust Ball Bearing
- Model: 53222
Technical Information
- Bore Diameter (d): 110 mm
- Inner Diameter Housing Washer (D1): 113 mm
- Outer Diameter (D): 160 mm
- Height (B): 40.2 mm
- Radius of Aligning Surface: 125 mm
- Height Bearing Including Seat Washer (H1): 45 mm
- Inner Diameter Seat Washer (D2): 135 mm
- Outside Diameter Seat Washer (D3): 165 mm
- Height Seat Washer (C): 14 mm
- Radius Sphered Housing Washer (R): 125 mm
- Chamfer Dimension Washer (r1,2): min. 1.1 mm
- Basic Load Ratings – Dynamic (C): 125 kN
- Basic Load Ratings – Static (C0): 365 kN
- Reference Speed: 1700 r/min
- Limiting Speed: 2400 r/min
- Cage: Sheet Metal
