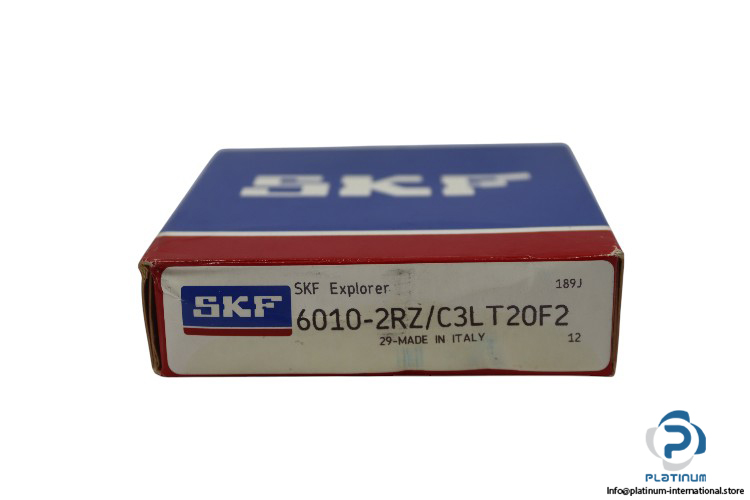

SKF 6010-2ZR/C3LT20F2 Deep Groove Ball Bearing
The SKF 6010-2ZR/C3LT20F2 Deep Groove Ball Bearing is designed for high-speed operations and is suitable for applications requiring high load capacity and low temperature performance. It offers long-lasting durability with a low-friction shielded design.
Manufacturer: SKF
Model: 6010-2ZR/C3LT20F2
Type: Deep Groove Ball Bearing
Technical Information:
- Bore Diameter (d): 50 mm
- Outer Diameter (D): 80 mm
- Width (B): 16 mm
- Dynamic Load Rating (Cr): 22.9 kN
- Static Load Rating (C0r): 15.6 kN
- Fatigue Load Limit: 0.71 kN
- Limiting Speed: 9000 r/min
- Reference Speed: 18000 r/min
- Cage: Sheet metal
- Sealing: 2ZR, shielded on two sides
- Clearance: C3
Suffix Information:
- LT20: Low temperature high speed grease (mineral/ester oil based and lithium thickened)
- F2: Fill Smaller Than Standard
