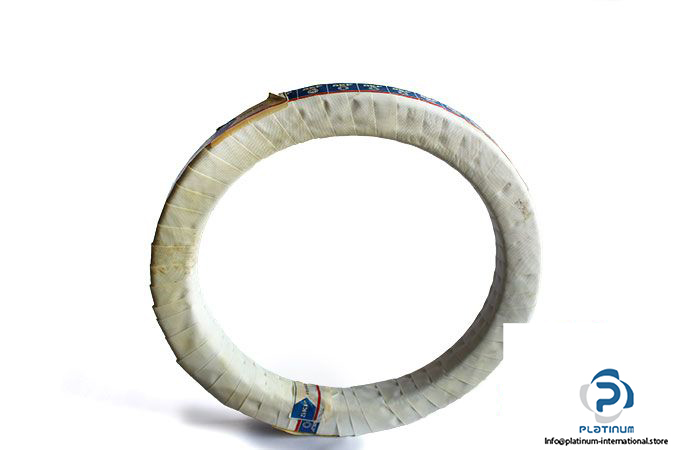

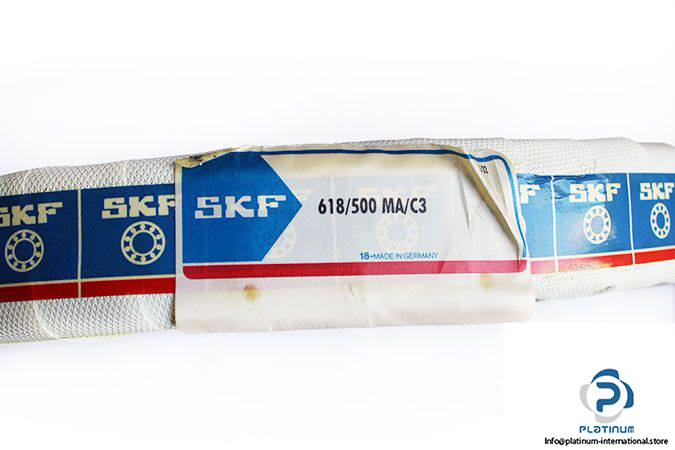

SKF 618/500 MA/C3 Deep Groove Ball Bearing

The SKF 618/500 MA/C3 is a high-precision deep groove ball bearing designed to handle heavy radial loads and high-speed applications. Engineered with a machined brass cage and C3 clearance, it ensures smooth rotation, low friction, and long service life, making it ideal for demanding industrial environments and mechanical systems.

Manufacturer: SKF
Type: Deep Groove Ball Bearing
Model: 618/500 MA/C3

Technical Information

Bore Diameter: 500 mm
Outer Diameter: 620 mm
Width: 56 mm
Basic Load Ratings:
“ Dynamic Cr: 332 kN
“ Static C0r: 620 kN
Fatigue Load Rating: 11.2 kN
Limiting Speed: 1500 rpm
Reference Speed: 1800 rpm
Cage: MA; Machined brass cage, outer ring centred
Clearance: C3
