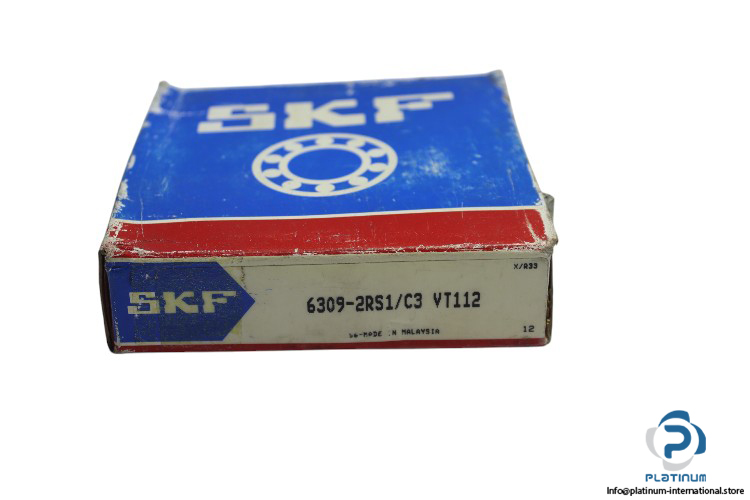

SKF 6309-2RS1/C3 VT112 Deep Groove Ball Bearing
The SKF 6309-2RS1/C3 VT112 Deep Groove Ball Bearing is designed for high-performance applications, offering excellent load capacity, durability, and smooth operation. With C3 clearance, double-sealed construction, and a sheet metal cage, this bearing ensures reliable performance in demanding conditions.
- Manufacturer: SKF
- Type: Deep Groove Ball Bearing
- Model: 6309-2RS1/C3 VT112
Technical Information
- Bore Diameter (d): 45 mm
- Outer Diameter (D): 100 mm
- Width (B): 25 mm
- Dynamic Load Rating (Cr): 55.3 kN
- Static Load Rating (C0r): 31.5 kN
- Limiting Speed: 4500 rpm
- Cage: Sheet Metal
- Sealing: 2RS1, Sealed on Both Sides
- Clearance Class: C3
