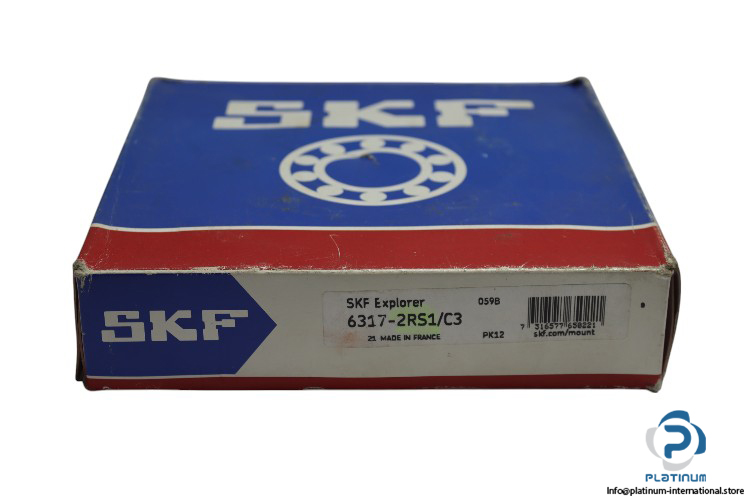

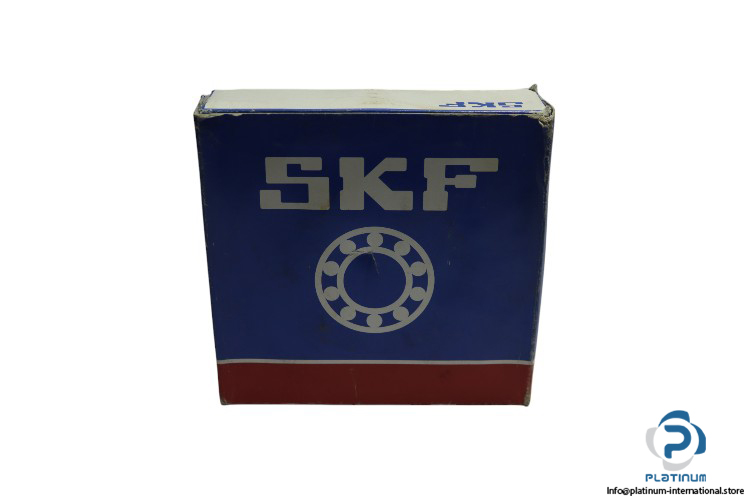

SKF 6317-2RS1/C3 Deep Groove Ball Bearing
The SKF 6317-2RS1/C3 Deep Groove Ball Bearing is designed for high-speed applications with superior load-carrying capacity. Featuring C3 clearance, sealed protection on both sides, and a durable sheet metal cage, this bearing ensures long-lasting performance in industrial environments.
- Manufacturer: SKF
- Type: Deep Groove Ball Bearing
- Model: 6317-2RS1/C3
Technical Information
- Bore Diameter (d): 85 mm
- Outer Diameter (D): 180 mm
- Width (B): 41 mm
- Dynamic Load Rating (Cr): 140 kN
- Static Load Rating (C0r): 96.5 kN
- Reference Speed: 8000 r/min
- Limiting Speed: 2400 r/min
- Cage: Sheet Metal
- Sealing: 2RS1, Sealed on Both Sides
- Clearance Class: C3
